XZS100-80-125 Stainless steel centrifugal pump monobloc
Application
- The XZS standardized monobloc centrifugal pump is a new generation of centrifugal pump dedicated to conveying water and various industrial fluids. This pump is suitable for various temperatures, flow rates and pressures. It is manufactured using advanced technologies.
- Drinking water supply, filtration and overpressure of water.
- Industrial pressurization, flow dampening system, cleaning system
- Transport of industrial liquids, hot water supply, condensing system, cooling system, air conditioning system.
- Water treatment, water distillation system, separator, swimming pool
- Irrigation
- Petrochemical and medical industries, etc ...
Pump
- Conditions of use: Clear, non-flammable and non-explosive liquid, without particles or fibers
- Liquid temperature: from -15°C to +90°C
- Nominal flow entre 0.7 and 132 m³/h
- HMT between 9 and 58 m
- pH between 3 and 9
- Carbon / SiC / NBR mechanical seal
Motor
- Protection class: IP55
- Maximum ambient temperature: +40°
- Maximum working pressure: 10 bars
Identification codes
XZS
100
-80
-125
/55
Nominal power (x100 W)
nominal impeller diameter (mm)
Outlet diameter (mm)
inlet diameter (mm)
Stainless steel centrifugal pump
Technical data
| Q (m³/h) | 0 | 36 | 42 | 48 | 60 | 72 | 90 | 108 | 114 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Price excl. VAT | kW | Q (l/min) | 0 | 600 | 700 | 800 | 1000 | 1200 | 1500 | 1800 | 1900 |
| XZS100-80-125/40 | A1.15.765 | 1,681.00 € | 4 | H (m) | 20 | 17.5 | 16.5 | 15.5 | 14 | 12 | 7 | ||
| XZS100-80-125/55 | A1.15.766 | 1,916.00 € | 5.5 | 23 | 21.5 | 20.5 | 20 | 18 | 16 | 12 | 7.5 | ||
| XZS100-80-125/75 | A1.15.767 | 2,050.00 € | 7.5 | 29 | 27.5 | 26.5 | 25.5 | 23.5 | 21.5 | 17.5 | 13 | 12 |

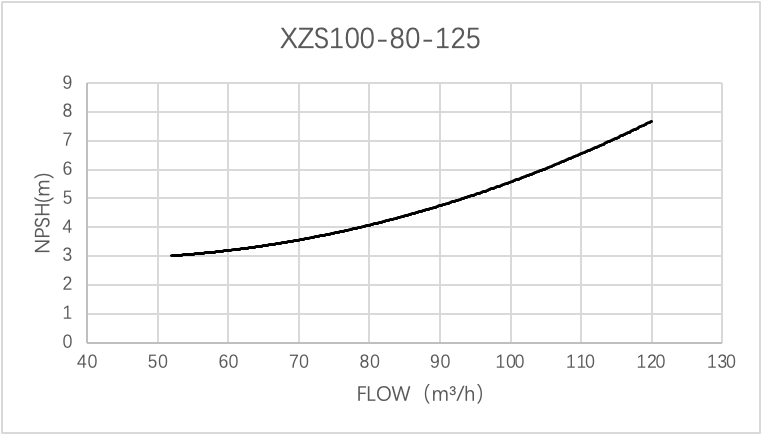

Hydraulic performance

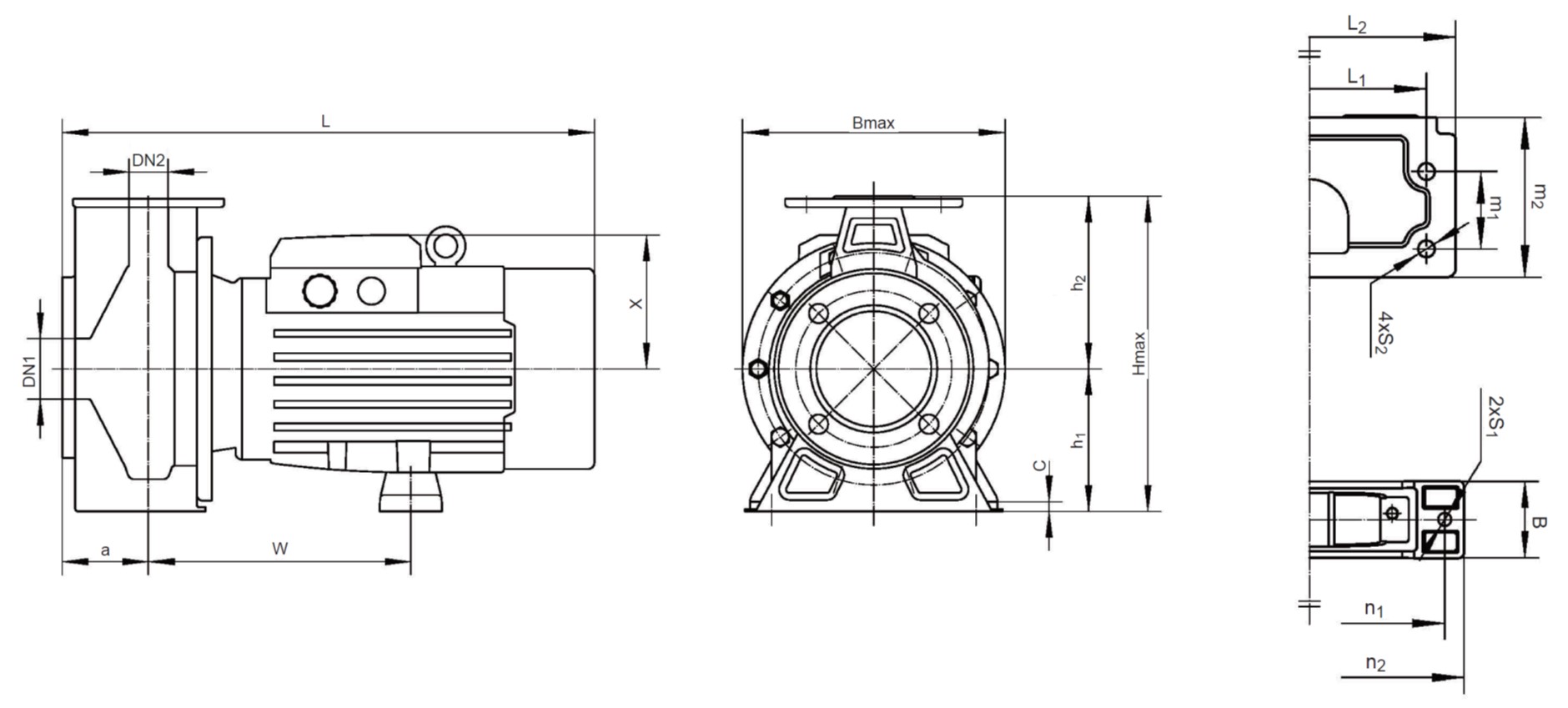

Dimensions
| Models | DN1 | DN2 | a | w | L1 | L2 | m1 | m2 | n1 | n2 | h1 | h2 | S1 | S2 | B | C | X | Bmax | Hmax | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XZS100-80-125/40 | 100 | 80 | 100 | 256 | 212 | 280 | 95 | 155 | 225 | 260 | 160 | 180 | 12 | 15 | 75 | 15 | 124 | 280 | 340 | 524 |
| XZS100-80-125/55 | 100 | 80 | 100 | 258 | 212 | 280 | 95 | 155 | 245 | 280 | 160 | 180 | 12 | 15 | 70 | 15 | 142 | 280 | 340 | 575 |
| XZS100-80-125/75 | 100 | 80 | 100 | 258 | 212 | 280 | 95 | 155 | 245 | 280 | 160 | 180 | 12 | 15 | 70 | 15 | 142 | 280 | 340 | 575 |
Exploded view
| No. | Type | Materials | Buy |
|---|---|---|---|
| 1 | Pump body | austenitic stainless steel | |
| 2 | Impeller | austenitic stainless steel | |
| 3 | O-ring | nitrile rubber (NBR) | |
| 4 | Lantern | cast iron HT200 | |
| 5 | Oil seal | ||
| 6 | Bearing | ||
| 7 | Rotor | ||
| 8 | Base | cast iron HT200 | |
| 9 | Bearing | ||
| 10 | Oil seal | ||
| 11 | Fan | polypropylene | |
| 12 | Fan cover | 08F steel | |
| 13 | Rear cover | cast aluminum ZL102 | |
| 14 | Nameplate | austenitic stainless steel | |
| 15 | Stator | ||
| 16 | Electric box cover | cast aluminum ZL102 | |
| 17 | Terminal board | ||
| 18 | Cable gland | ||
| 19 | Pump bottom | austenitic stainless steel | |
| 20 | Mechanical seal | silicon carbide / graphite |
Pump body for XZS100-80-125
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XZS100-80-125/40 | No available part. | |||
| XZS100-80-125/55 | No available part. | |||
| XZS100-80-125/75 | No available part. | |||
Impeller for XZS100-80-125
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XZS100-80-125/40 | No available part. | |||
| XZS100-80-125/55 | No available part. | |||
| XZS100-80-125/75 | No available part. | |||
O-ring for XZS100-80-125
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XZS100-80-125/40 | No available part. | |||
| XZS100-80-125/55 | No available part. | |||
| XZS100-80-125/75 | No available part. | |||
Lantern for XZS100-80-125
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XZS100-80-125/40 | No available part. | |||
| XZS100-80-125/55 | No available part. | |||
| XZS100-80-125/75 | No available part. | |||
Oil seal for XZS100-80-125
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XZS100-80-125/40 | No available part. | |||
| XZS100-80-125/55 | No available part. | |||
| XZS100-80-125/75 | No available part. | |||
Bearing for XZS100-80-125
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XZS100-80-125/40 | No available part. | |||
| XZS100-80-125/55 | No available part. | |||
| XZS100-80-125/75 | No available part. | |||
Rotor for XZS100-80-125
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XZS100-80-125/40 | No available part. | |||
| XZS100-80-125/55 | No available part. | |||
| XZS100-80-125/75 | No available part. | |||
Base for XZS100-80-125
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XZS100-80-125/40 | No available part. | |||
| XZS100-80-125/55 | No available part. | |||
| XZS100-80-125/75 | No available part. | |||
Bearing for XZS100-80-125
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XZS100-80-125/40 | No available part. | |||
| XZS100-80-125/55 | No available part. | |||
| XZS100-80-125/75 | No available part. | |||
Oil seal for XZS100-80-125
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XZS100-80-125/40 | No available part. | |||
| XZS100-80-125/55 | No available part. | |||
| XZS100-80-125/75 | No available part. | |||
Fan for XZS100-80-125
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XZS100-80-125/40 | No available part. | |||
| XZS100-80-125/55 | No available part. | |||
| XZS100-80-125/75 | No available part. | |||
Fan cover for XZS100-80-125
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XZS100-80-125/40 | No available part. | |||
| XZS100-80-125/55 | No available part. | |||
| XZS100-80-125/75 | No available part. | |||
Rear cover for XZS100-80-125
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XZS100-80-125/40 | No available part. | |||
| XZS100-80-125/55 | No available part. | |||
| XZS100-80-125/75 | No available part. | |||
Nameplate for XZS100-80-125
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XZS100-80-125/40 | No available part. | |||
| XZS100-80-125/55 | No available part. | |||
| XZS100-80-125/75 | No available part. | |||
Stator for XZS100-80-125
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XZS100-80-125/40 | No available part. | |||
| XZS100-80-125/55 | No available part. | |||
| XZS100-80-125/75 | No available part. | |||
Electric box cover for XZS100-80-125
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XZS100-80-125/40 | No available part. | |||
| XZS100-80-125/55 | No available part. | |||
| XZS100-80-125/75 | No available part. | |||
Terminal board for XZS100-80-125
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XZS100-80-125/40 | No available part. | |||
| XZS100-80-125/55 | No available part. | |||
| XZS100-80-125/75 | No available part. | |||
Cable gland for XZS100-80-125
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XZS100-80-125/40 | No available part. | |||
| XZS100-80-125/55 | No available part. | |||
| XZS100-80-125/75 | No available part. | |||
Pump bottom for XZS100-80-125
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XZS100-80-125/40 | No available part. | |||
| XZS100-80-125/55 | No available part. | |||
| XZS100-80-125/75 | No available part. | |||
Mechanical seal for XZS100-80-125
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XZS100-80-125/40 | No available part. | |||
| XZS100-80-125/55 | No available part. | |||
| XZS100-80-125/75 | No available part. | |||
Packaging
| Models | Weight (kg) | Length L (mm) | Width W (mm) | Height H (mm) |
|---|---|---|---|---|
| XZS100-80-125/40 | 49 | 585 | 335 | 405 |
| XZS100-80-125/55 | 61 | 635 | 335 | 405 |
| XZS100-80-125/75 | 66 | 635 | 335 | 405 |
