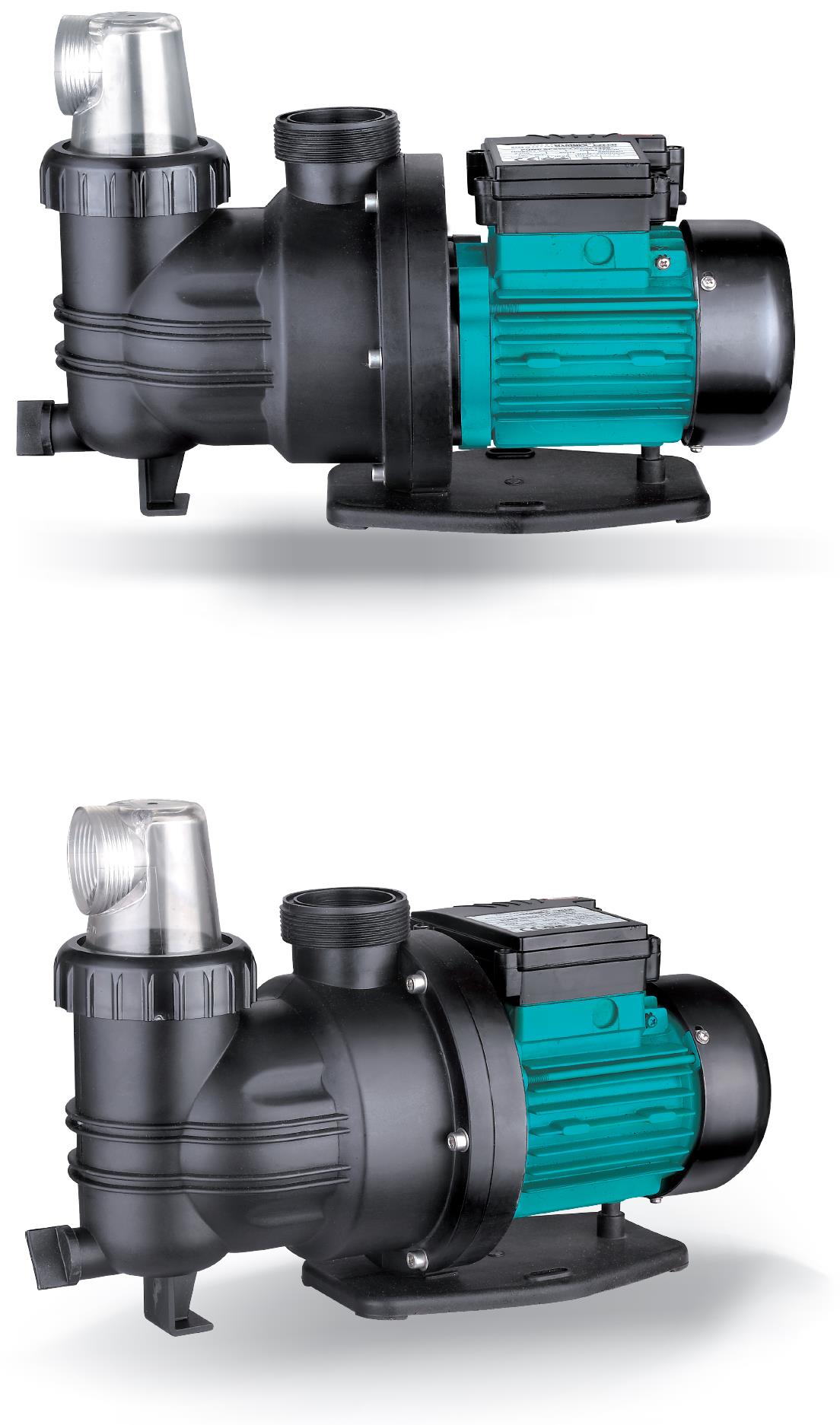

XKP-2 Swimming pool pump < 500 W
Application
- Suitable for water circulation in all kinds of small domestic swimming pools. Lightly dirty water with suspended particles will be perfectly filtered
Pump
- Plastic body pump
- AISI 304 stainless steel shaft
- Maximum liquid temperature: +35°C
- Maximum suction height: 3.5 m
Motor
- Copper winding motor or aluminium
- Integrated thermal protection for single-phase motors
- Insulation class: F
- Protection class: IPX5
Identification codes
XKP
450
-2
series
Power (W)
pool pump
Technical data
| Q (m³/h) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Price excl. VAT | kW | Q (l/min) | 17 | 33 | 50 | 67 | 83 | 100 | 117 | 133 | 150 |
| XKP250-2 | A1.15.600 | 145.00 € | 0.25 | H (m) | 6.9 | 6.3 | 5.5 | 4.6 | 3.6 | 2.4 | 1 | ||
| XKP350-2 | A1.15.602 | 158.00 € | 0.35 | 8.4 | 7.7 | 7 | 6.2 | 5 | 3.8 | 2.3 | 0.8 |
Hydraulic performance

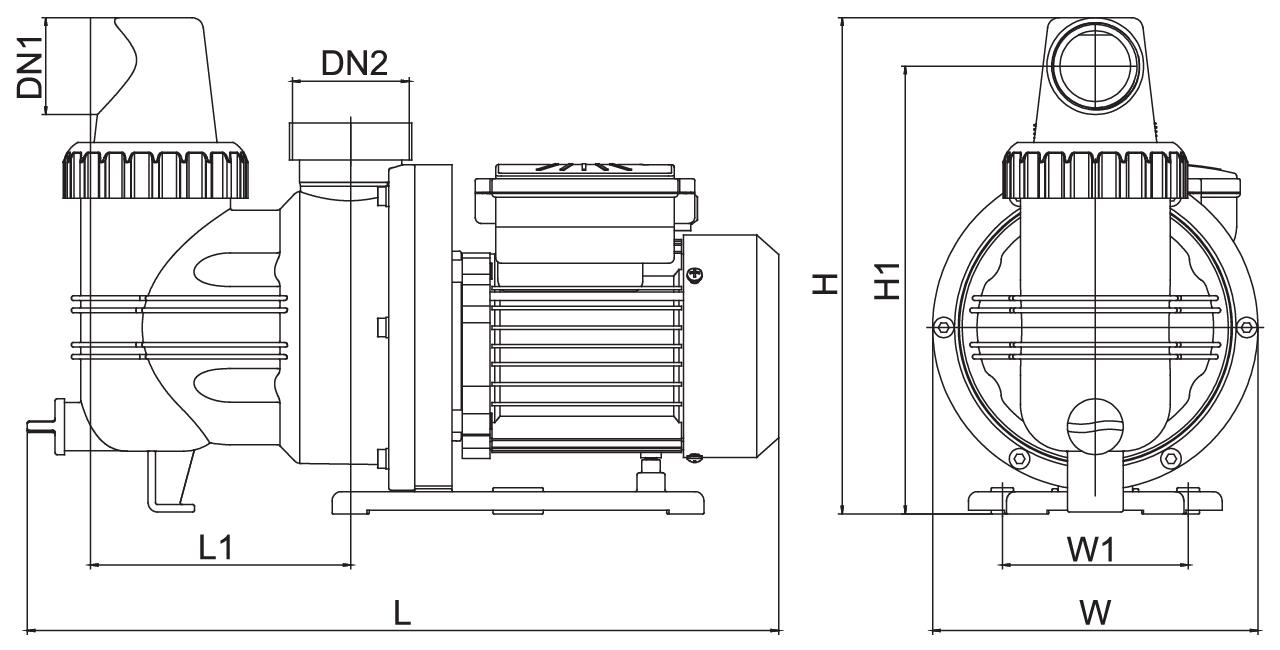

Dimensions
Exploded view
| No. | Type | Buy |
|---|---|---|
| 1 | Filling plug | |
| 2 | Pump body | |
| 3 | Waterproof cover | |
| 4 | Diffuser | |
| 5 | Ball bearing | |
| 6 | Rotor | |
| 7 | Base | |
| 8 | Stator | |
| 9 | Fan cover | |
| 10 | Fan | |
| 11 | Rear cover | |
| 12 | Box | |
| 13 | Power cable | |
| 14 | Terminal Box | |
| 15 | Terminal board | |
| 16 | Electric box cover | |
| 17 | Capacitor | |
| 18 | Front plate | |
| 19 | Lantern | |
| 20 | O-ring | |
| 21 | Mechanical seal | |
| 22 | Impeller | |
| 23 | Basket | |
| 24 | O-ring | |
| 25 | Nut | |
| 26 | Inlet fitting |
Filling plug for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | No available part. | |||
| XKP350-2 | No available part. | |||
Pump body for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | No available part. | |||
| XKP350-2 | No available part. | |||
Waterproof cover for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | No available part. | |||
| XKP350-2 | No available part. | |||
Diffuser for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | No available part. | |||
| XKP350-2 | No available part. | |||
Ball bearing for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | No available part. | |||
| XKP350-2 | No available part. | |||
Rotor for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | No available part. | |||
| XKP350-2 | No available part. | |||
Base for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | No available part. | |||
| XKP350-2 | No available part. | |||
Stator for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | No available part. | |||
| XKP350-2 | No available part. | |||
Fan cover for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | No available part. | |||
| XKP350-2 | No available part. | |||
Fan for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | No available part. | |||
| XKP350-2 | No available part. | |||
Rear cover for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | No available part. | |||
| XKP350-2 | No available part. | |||
Box for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | No available part. | |||
| XKP350-2 | No available part. | |||
Power cable for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | No available part. | |||
| XKP350-2 | No available part. | |||
Terminal Box for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | No available part. | |||
| XKP350-2 | No available part. | |||
Terminal board for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | No available part. | |||
| XKP350-2 | No available part. | |||
Electric box cover for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | No available part. | |||
| XKP350-2 | No available part. | |||
Capacitor for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | No available part. | |||
| XKP350-2 | No available part. | |||
Front plate for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | No available part. | |||
| XKP350-2 | No available part. | |||
Lantern for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | No available part. | |||
| XKP350-2 | No available part. | |||
O-ring for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | 10006271 | -- | -- | -- |
| XKP350-2 | 10006271 | -- | -- | -- |
Mechanical seal for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | No available part. | |||
| XKP350-2 | No available part. | |||
Impeller for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | No available part. | |||
| XKP350-2 | No available part. | |||
Basket for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | 40003952 | -- | -- | -- |
| XKP350-2 | 40003952 | -- | -- | -- |
O-ring for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | 10008652 | -- | -- | -- |
| XKP350-2 | 10008652 | -- | -- | -- |
Nut for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | No available part. | |||
| XKP350-2 | No available part. | |||
Inlet fitting for XKP-2
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| XKP250-2 | 40003745 | -- | -- | -- |
| XKP350-2 | 40003745 | -- | -- | -- |
