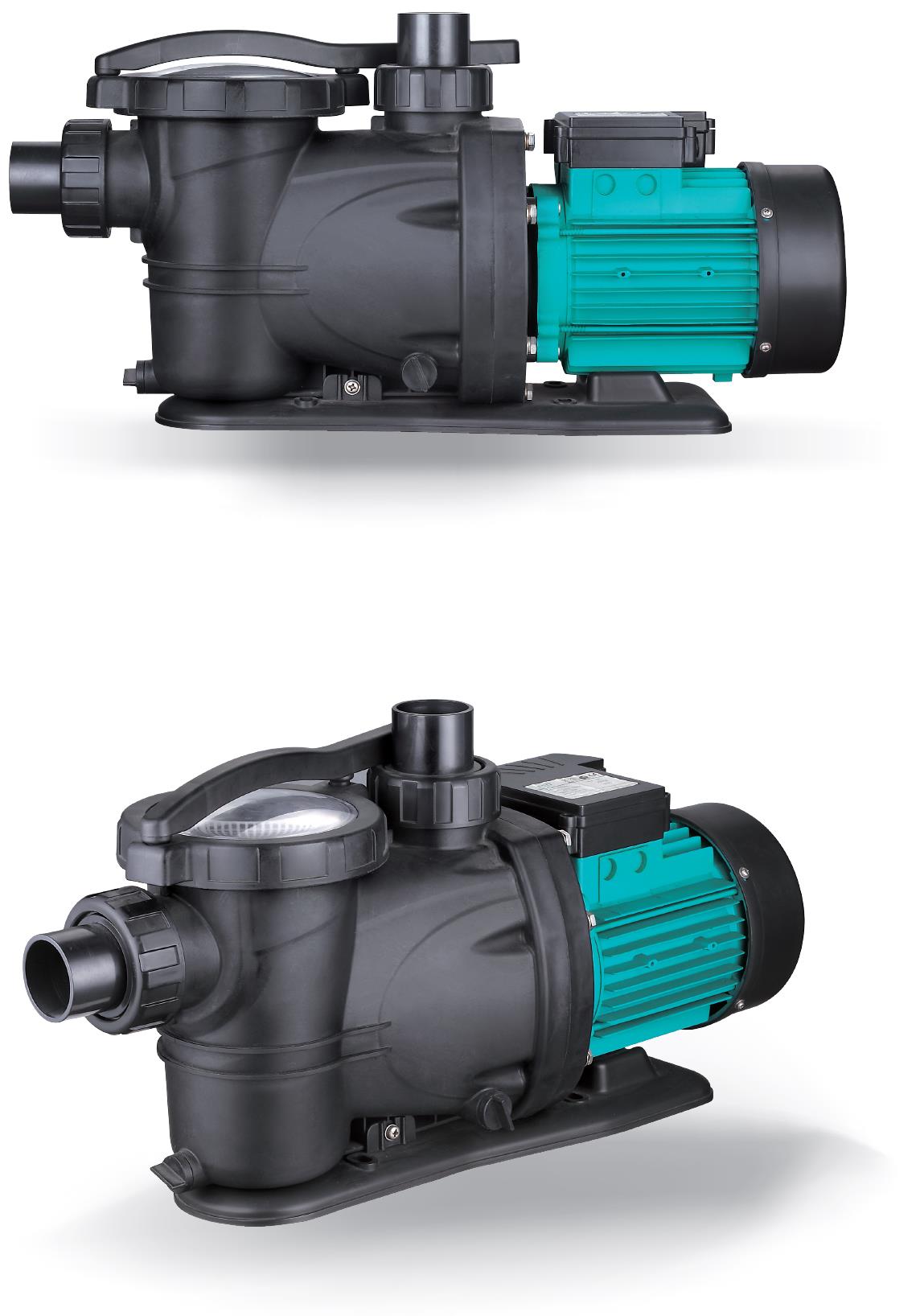

XKP-04 Swimming pool pump > 500 W
Application
- Suitable for water circulation in small and medium swimming pools. Lightly dirty water with suspended particles will be perfectly filtered
Pump
- Plastic body pump
- AISI 304 stainless steel shaft
- Maximum liquid temperature: +35°C
- Maximum suction height: 3.5 m
Motor
- Copper winding motor or aluminium
- Integrated thermal protection for single-phase motors
- Insulation class: F
- Protection class: IPX5
Identification codes
XKP
16
06
series
Power (x100 W)
pool pump
Technical data
| Q (m³/h) | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Price excl. VAT | kW | Q (l/min) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| XKP1604 | A1.15.608 | 299.00 € | 1.6 | H (m) | 16.8 | 16.3 | 15.5 | 14.5 | 13.5 | 12 | 9.6 | 7 | 3.5 |
Hydraulic performance

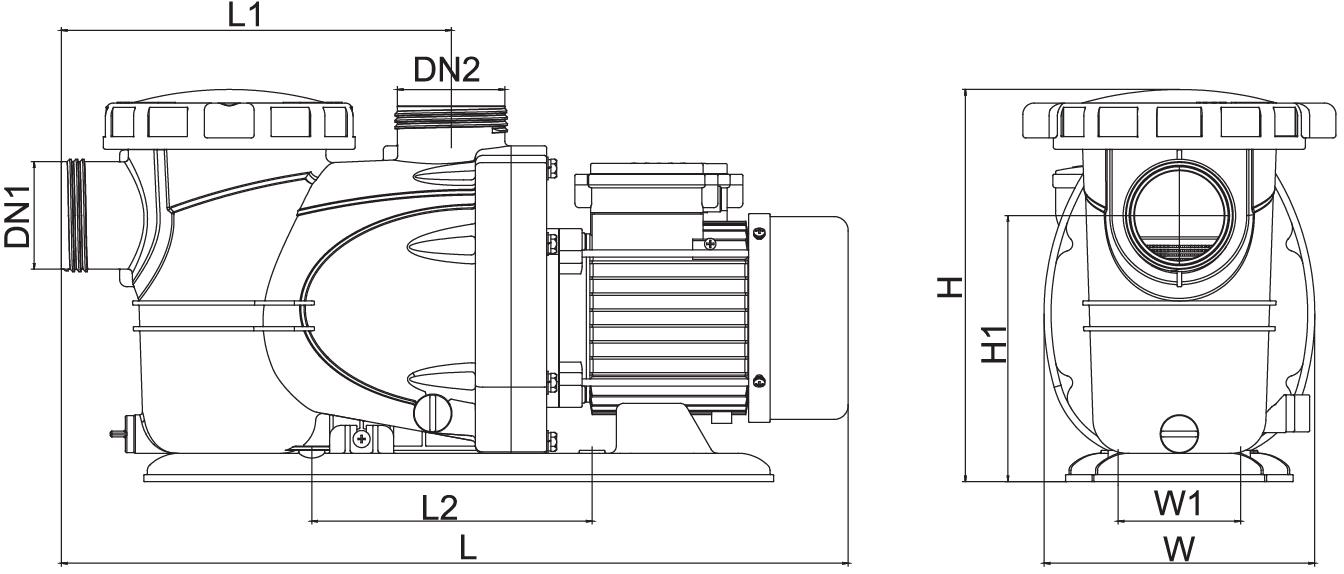

Dimensions
Exploded view
| No. | Type | Buy |
|---|---|---|
| 1 | Drain plug | |
| 2 | O-ring | |
| 3 | Valve body | |
| 4 | Pump body | |
| 5 | Seal | |
| 6 | Diffuser | |
| 7 | Impeller | |
| 8 | Mechanical seal | |
| 9 | O-ring | |
| 10 | Lower support | |
| 11 | Lantern | |
| 12 | Rear cover | |
| 13 | Fan cover | |
| 14 | Fan | |
| 15 | Power cable | |
| 16 | Rear cover | |
| 17 | Electric box cover | |
| 18 | Capacitor | |
| 19 | Terminal Box | |
| 20 | Stator | |
| 21 | Bearing | |
| 22 | Rotor | |
| 23 | O-ring | |
| 24 | Connection | |
| 25 | Nut | |
| 26 | O-ring | |
| 27 | Basket | |
| 28 | Waterproof cover | |
| 29 | Nut | |
| 30 | Wrench |
