LVS64 Vertical multicellular stainless steel in line pump

Application

  • Transfer of liquids with low viscosity, non-flammable and non-explosive, not containing solid particles or fibers. These liquids must not chemically attack the materials of the pump.
  • Water supply for tall buildings, pumping stations, overpressure in drinking water
  • Washing stations, heating water circulation, air conditioning water circulation, water treatment systems
  • Ultrafiltration, reverse osmosis, distillation systems, municipal swimming pools
  • Irrigation: sprinkling, drip
  • Food industry
  • Fire fighting systems

Pump

  • Liquid temperature: from -20°C to +120°C
  • Nominal flow: 64 m³/h
  • maximum pressure: 22 bars
  • pH between 4 and 10

Motor

  • IE3 motor
  • Protection class: IP55
  • Maximum ambient temperature: +40°

Identification codes

LVS
64
-5
-2
-B
/F
DIN flange
inox 316 (by default, inox 304)
number of small impellers
number of impellers
Nominal flow (m³/h)
Vertical multistage stainless steel in line pump

Technical data

Q (m³/h) 30 40 50 60 70 80
Model Code Price excl. VAT kW Q (l/min) 500 667 833 1000 1167 1333
LVS64-2-2/F A1.22.008 4,663.00 € 7.5 H (m) 40 38 35.5 31 25.5 19
LVS64-2/F A1.22.010 5,143.00 € 11 55 52.5 49.5 44.5 41.5 36
LVS64-3-2/F A1.22.011 5,678.00 € 15 68 65.5 60 54 48.5 40
LVS64-3/F A1.22.013 5,861.00 € 18.5 83.5 80 76 66.5 64 56
LVS64-4/F A1.22.016 6,810.00 € 22 112 107 102 89 85.5 74.5
LVS64-5/F A1.22.019 8,361.00 € 30 141 136 129 113 109 96
LVS64-6/F A1.22.022 9,150.00 € 37 170 163 155 135 131 116

Hydraulic performance

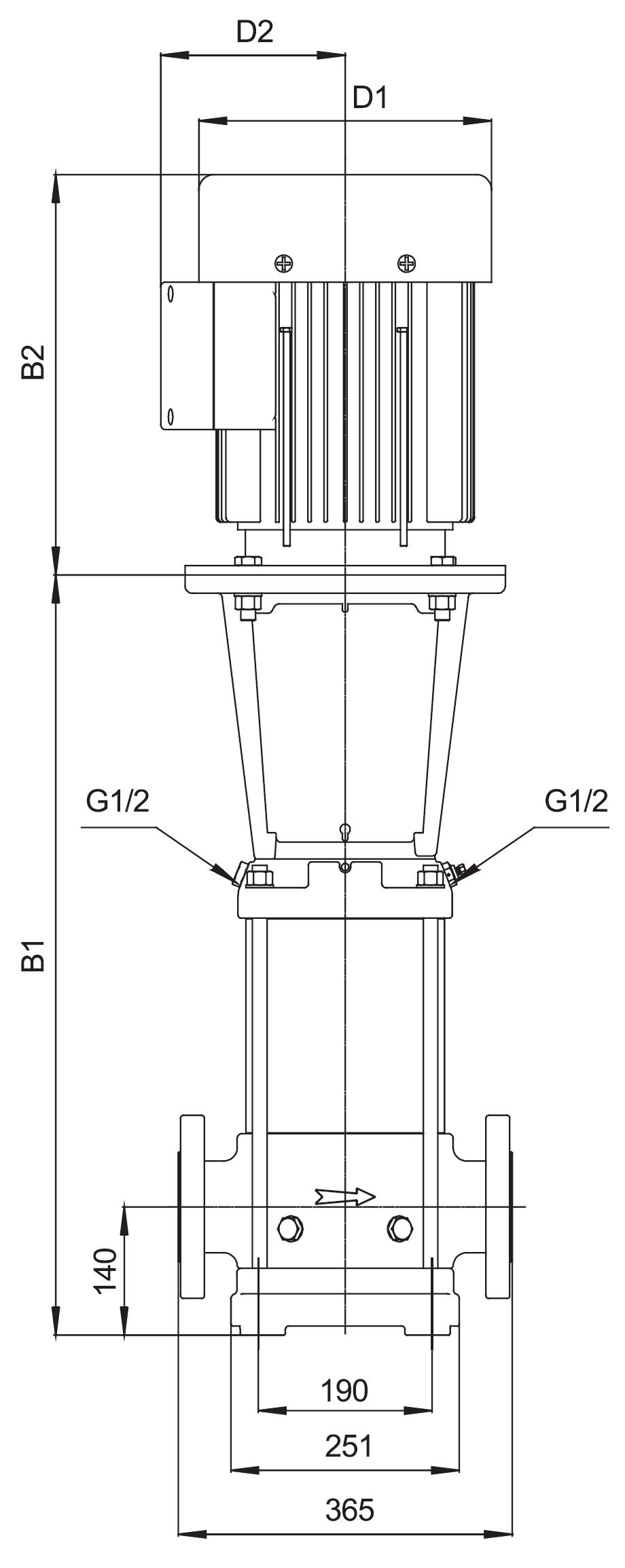

Dimensions

Models B1 B1+B2 D1 D2 Weight
LVS64-2-2/F 645 1042 210 142 117.4
LVS64-2/F 755 1254 254 175 156
LVS64-3-2/F 838 1337 254 175 171.9
LVS64-3/F 838 1398 330 250 221
LVS64-4/F 920 1520 380 280 261
LVS64-5/F 1003 1683 420 305 321.5
LVS64-6/F 1085 1765 420 305 341.2
B1 ()
B1+B2 ()
D1 (mm)
D2 (mm)
poids (kg)

Exploded view

No. Type Materials Buy
1 Base cast iron HT200
2 Flange ZG35 cast steel
3 Lower water box ZG304
4 Diffuser AISI 304 stainless steel
5 Intermediate diffuser AISI 304 stainless steel
6 Diffuser with bearing AISI 304 stainless steel
7 Impeller AISI 304 stainless steel
8 Shaft sleeve
9 Diffuser AISI 304 stainless steel
10 Drain plug AISI 304 stainless steel
11 Lantern cast iron HT200
12 Coupling protection housing
13 Engine AISI 304 stainless steel
14 Coupling QT400 cast iron
15 Cartridge mechanical seal
16 Pump bottom ZG304
17 Filling plug AISI 304 stainless steel
18 Clamping plate AISI 304 stainless steel
19 Jacket AISI 304 stainless steel
20 Pump shaft AISI 304 stainless steel
Base for LVS64
Model Part ref. Price Stock Buy
LVS64-2-2/F No available part.
LVS64-2/F No available part.
LVS64-3-2/F No available part.
LVS64-3/F No available part.
LVS64-4/F No available part.
LVS64-5/F No available part.
LVS64-6/F No available part.
Flange for LVS64
Model Part ref. Price Stock Buy
LVS64-2-2/F No available part.
LVS64-2/F No available part.
LVS64-3-2/F No available part.
LVS64-3/F No available part.
LVS64-4/F No available part.
LVS64-5/F No available part.
LVS64-6/F No available part.
Lower water box for LVS64
Model Part ref. Price Stock Buy
LVS64-2-2/F No available part.
LVS64-2/F No available part.
LVS64-3-2/F No available part.
LVS64-3/F No available part.
LVS64-4/F No available part.
LVS64-5/F No available part.
LVS64-6/F No available part.
Diffuser for LVS64
Model Part ref. Price Stock Buy
LVS64-2-2/F No available part.
LVS64-2/F No available part.
LVS64-3-2/F No available part.
LVS64-3/F No available part.
LVS64-4/F No available part.
LVS64-5/F No available part.
LVS64-6/F No available part.
Intermediate diffuser for LVS64
Model Part ref. Price Stock Buy
LVS64-2-2/F No available part.
LVS64-2/F No available part.
LVS64-3-2/F No available part.
LVS64-3/F No available part.
LVS64-4/F No available part.
LVS64-5/F No available part.
LVS64-6/F No available part.
Diffuser with bearing for LVS64
Model Part ref. Price Stock Buy
LVS64-2-2/F No available part.
LVS64-2/F No available part.
LVS64-3-2/F No available part.
LVS64-3/F No available part.
LVS64-4/F No available part.
LVS64-5/F No available part.
LVS64-6/F No available part.
Impeller for LVS64
Model Part ref. Price Stock Buy
LVS64-2-2/F No available part.
LVS64-2/F No available part.
LVS64-3-2/F No available part.
LVS64-3/F No available part.
LVS64-4/F No available part.
LVS64-5/F No available part.
LVS64-6/F No available part.
Shaft sleeve for LVS64
Model Part ref. Price Stock Buy
LVS64-2-2/F No available part.
LVS64-2/F No available part.
LVS64-3-2/F No available part.
LVS64-3/F No available part.
LVS64-4/F No available part.
LVS64-5/F No available part.
LVS64-6/F No available part.
Diffuser for LVS64
Model Part ref. Price Stock Buy
LVS64-2-2/F No available part.
LVS64-2/F No available part.
LVS64-3-2/F No available part.
LVS64-3/F No available part.
LVS64-4/F No available part.
LVS64-5/F No available part.
LVS64-6/F No available part.
Drain plug for LVS64
Model Part ref. Price Stock Buy
LVS64-2-2/F No available part.
LVS64-2/F No available part.
LVS64-3-2/F No available part.
LVS64-3/F No available part.
LVS64-4/F No available part.
LVS64-5/F No available part.
LVS64-6/F No available part.
Lantern for LVS64
Model Part ref. Price Stock Buy
LVS64-2-2/F No available part.
LVS64-2/F No available part.
LVS64-3-2/F No available part.
LVS64-3/F No available part.
LVS64-4/F No available part.
LVS64-5/F No available part.
LVS64-6/F No available part.
Coupling protection housing for LVS64
Model Part ref. Price Stock Buy
LVS64-2-2/F No available part.
LVS64-2/F No available part.
LVS64-3-2/F No available part.
LVS64-3/F No available part.
LVS64-4/F No available part.
LVS64-5/F No available part.
LVS64-6/F No available part.
Engine for LVS64
Model Part ref. Price Stock Buy
LVS64-2-2/F No available part.
LVS64-2/F No available part.
LVS64-3-2/F No available part.
LVS64-3/F No available part.
LVS64-4/F No available part.
LVS64-5/F No available part.
LVS64-6/F No available part.
Coupling for LVS64
Model Part ref. Price Stock Buy
LVS64-2-2/F No available part.
LVS64-2/F No available part.
LVS64-3-2/F No available part.
LVS64-3/F No available part.
LVS64-4/F No available part.
LVS64-5/F No available part.
LVS64-6/F No available part.
Cartridge mechanical seal for LVS64
Model Part ref. Price Stock Buy
LVS64-2-2/F 10017824 -- -- --
LVS64-2/F 10017824 -- -- --
LVS64-3-2/F 10017824 -- -- --
LVS64-3/F 10017824 -- -- --
LVS64-4/F 10017824 -- -- --
LVS64-5/F 10017824 -- -- --
LVS64-6/F 10017824 -- -- --
Pump bottom for LVS64
Model Part ref. Price Stock Buy
LVS64-2-2/F No available part.
LVS64-2/F No available part.
LVS64-3-2/F No available part.
LVS64-3/F No available part.
LVS64-4/F No available part.
LVS64-5/F No available part.
LVS64-6/F No available part.
Filling plug for LVS64
Model Part ref. Price Stock Buy
LVS64-2-2/F No available part.
LVS64-2/F No available part.
LVS64-3-2/F No available part.
LVS64-3/F No available part.
LVS64-4/F No available part.
LVS64-5/F No available part.
LVS64-6/F No available part.
Clamping plate for LVS64
Model Part ref. Price Stock Buy
LVS64-2-2/F No available part.
LVS64-2/F No available part.
LVS64-3-2/F No available part.
LVS64-3/F No available part.
LVS64-4/F No available part.
LVS64-5/F No available part.
LVS64-6/F No available part.
Jacket for LVS64
Model Part ref. Price Stock Buy
LVS64-2-2/F No available part.
LVS64-2/F No available part.
LVS64-3-2/F No available part.
LVS64-3/F No available part.
LVS64-4/F No available part.
LVS64-5/F No available part.
LVS64-6/F No available part.
Pump shaft for LVS64
Model Part ref. Price Stock Buy
LVS64-2-2/F No available part.
LVS64-2/F No available part.
LVS64-3-2/F No available part.
LVS64-3/F No available part.
LVS64-4/F No available part.
LVS64-5/F No available part.
LVS64-6/F No available part.
