LVS5 vertical multistage stainless steel in line pump
Application
- Transfer of liquids with low viscosity, non-flammable and non-explosive, not containing solid particles or fibers. These liquids must not chemically attack the materials of the pump.
- Water supply for tall buildings, pumping stations, overpressure in drinking water
- Washing stations, heating water circulation, air conditioning water circulation, water treatment systems
- Ultrafiltration, reverse osmosis, distillation systems, municipal swimming pools
- Irrigation: sprinkling, drip
- Food industry
- Fire fighting systems
Pump
- Liquid temperature: from -20°C to +120°C
- Nominal flow: 5 m³/h
- maximum pressure: 20 bars
- pH between 4 and 10
Motor
- IE3 motor
- Protection class: IP55
- Maximum ambient temperature: +40°
Identification codes
LVS
m
5
-10
-B
/F(A, K, G)
DIN flange (oval, clamp fitting, threaded fitting)
inox 316 (by default, inox 304)
number of impellers
Nominal flow (m³/h)
Single-phase motor
Vertical multistage stainless steel in line pump
Technical data
| Q (m³/h) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 8.5 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Price excl. VAT | kW | Q (l/min) | 17 | 33 | 50 | 67 | 83 | 100 | 117 | 133 | 142 |
| LVSm5-4 | A1.17.698 | 1,038.00 € | 0.55 | H (m) | 26 | 25 | 24 | 22 | 19 | 16 | 14 | ||
| LVSm5-5 | A1.17.699 | 1,128.00 € | 0.75 | 33 | 32 | 30 | 28 | 24 | 22 | 18 | |||
| LVSm5-7 | A1.17.771 | 1,217.00 € | 1.1 | 46 | 45 | 42 | 40 | 32 | 32 | 27 | |||
| LVSm5-11 | A1.17.775 | 1,492.00 € | 2.2 | 74 | 73 | 70 | 66 | 59 | 54 | 47 | |||
| LVSm5-12 | A1.17.776 | 1,519.00 € | 2.2 | 81 | 79 | 76 | 72 | 63 | 59 | 51 | |||
| LVSm5-13 | A1.17.777 | 1,578.00 € | 2.2 | 88 | 85 | 82 | 78 | 68 | 64 | 55 | |||
| LVSm5-15 | A1.17.779 | 1,623.00 € | 2.2 | 101 | 99 | 95 | 89 | 79 | 74 | 63 | |||
| LVSm5-18 | A1.17.781 | 1,831.00 € | 3 | 122 | 119 | 115 | 109 | 98 | 90 | 78 | |||
| LVS5-4/F | A1.17.893 | 1,053.00 € | 0.55 | 26 | 25 | 24 | 22 | 19 | 16 | 14 | |||
| LVS5-5/F | A1.17.894 | 1,195.00 € | 0.75 | 33 | 32 | 30 | 28 | 24 | 22 | 18 | |||
| LVS5-7/F | A1.17.896 | 1,297.00 € | 1.1 | 46 | 45 | 42 | 40 | 32 | 32 | 27 | |||
| LVS5-8/F | A1.17.897 | 1,355.00 € | 1.1 | 53 | 51 | 48 | 45 | 40 | 36 | 31 | |||
| LVS5-10/F | A1.17.899 | 1,548.00 € | 1.5 | 67 | 65 | 62 | 59 | 53 | 48 | 41 | |||
| LVS5-11/F | A1.17.900 | 1,631.00 € | 2.2 | 74 | 73 | 70 | 66 | 59 | 54 | 47 | |||
| LVS5-13/F | A1.17.902 | 1,714.00 € | 2.2 | 88 | 85 | 82 | 78 | 68 | 64 | 55 | |||
| LVS5-15/F | A1.17.904 | 1,759.00 € | 2.2 | 101 | 99 | 95 | 89 | 79 | 74 | 63 | |||
| LVS5-18/F | A1.17.906 | 2,051.00 € | 3 | 122 | 119 | 115 | 109 | 98 | 90 | 78 | |||
| LVS5-20/F | A1.17.907 | 2,097.00 € | 3 | 135 | 132 | 127 | 120 | 108 | 100 | 87 | |||
| LVS5-22 | A1.17.908 | 2,158.00 € | 4 | 150 | 147 | 142 | 134 | 120 | 112 | 97 | |||
| LVS5-26 | A1.17.910 | 2,344.00 € | 4 | 176 | 173 | 166 | 157 | 145 | 132 | 115 | |||
| LVS5-29 | A1.17.911 | 2,424.00 € | 4 | 198 | 194 | 188 | 178 | 155 | 149 | 131 | |||
| LVS5-36 | A1.22.093 | 2,952.00 € | 5.5 | 244 | 237 | 231 | 218 | 205 | 185 | 163 | 136 | 120 |
Hydraulic performance

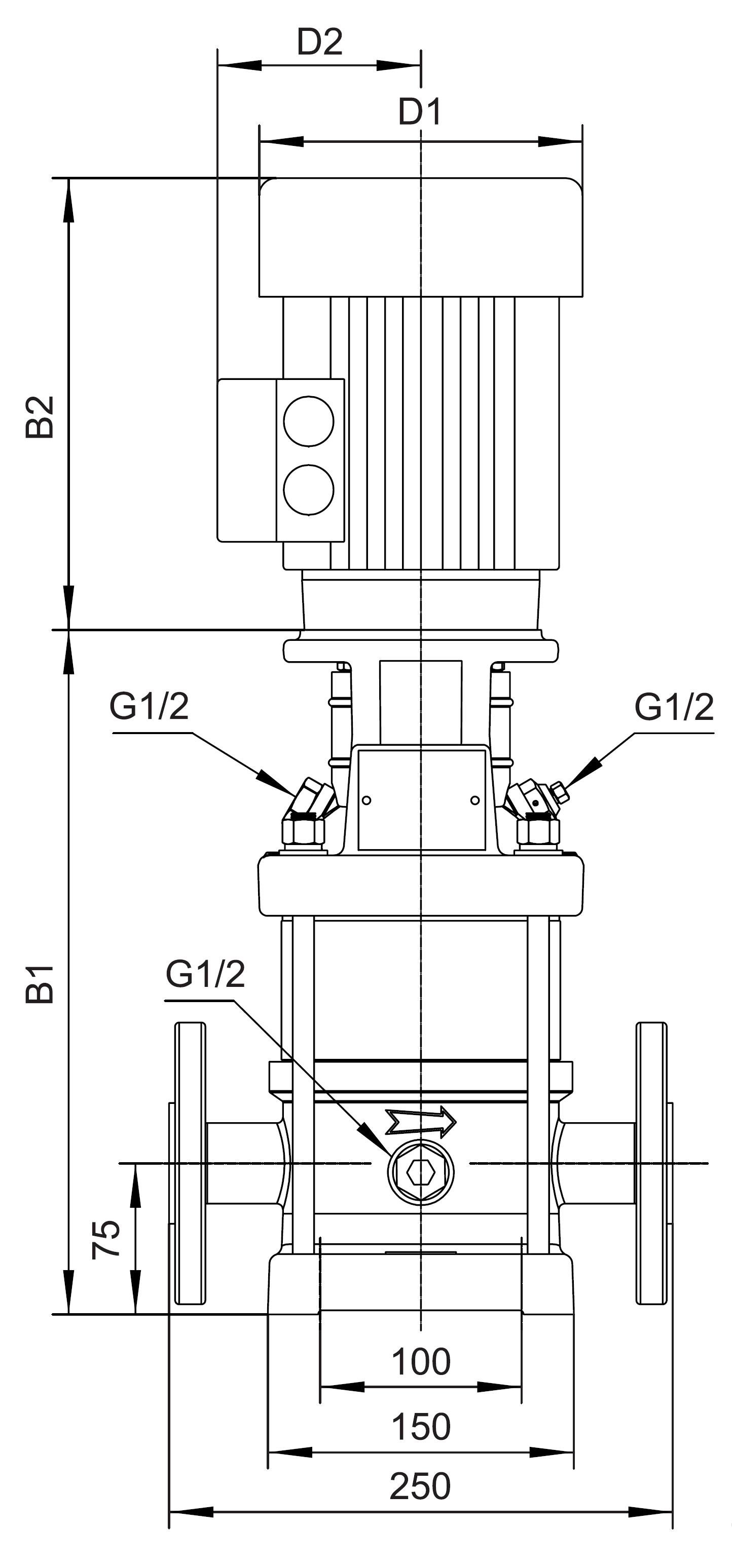

Dimensions
| Models | B1 | B1+B2 | D1 | D2 | Weight |
|---|---|---|---|---|---|
| LVSm5-4 | 336 | 566 | 130 | 105 | 22.7 |
| LVSm5-5 | 367 | 617 | 150 | 125 | 25.5 |
| LVSm5-7 | 421 | 671 | 150 | 125 | 28.5 |
| LVSm5-11 | 545 | 855 | 164 | 127 | 39.4 |
| LVSm5-12 | 572 | 882 | 164 | 127 | 39.9 |
| LVSm5-13 | 599 | 909 | 164 | 127 | 40.5 |
| LVSm5-15 | 653 | 963 | 164 | 127 | 41.5 |
| LVSm5-18 | 738 | 1068 | 186 | 120 | 49.9 |
| LVS5-4 | 336 | 566 | 130 | 105 | 22.7 |
| LVS5-5 | 367 | 617 | 150 | 125 | 25.5 |
| LVS5-7 | 421 | 671 | 150 | 125 | 28.5 |
| LVS5-8 | 448 | 698 | 150 | 125 | 29.1 |
| LVS5-10 | 518 | 828 | 164 | 127 | 37.9 |
| LVS5-11 | 545 | 855 | 164 | 127 | 39.4 |
| LVS5-13 | 599 | 909 | 164 | 127 | 40.5 |
| LVS5-15 | 653 | 963 | 164 | 127 | 41.5 |
| LVS5-18 | 738 | 1068 | 186 | 120 | 49.9 |
| LVS5-20 | 792 | 1122 | 186 | 120 | 51.3 |
| LVS5-22 | 846 | 1203 | 186 | 120 | 54.2 |
| LVS5-26 | 954 | 1311 | 186 | 120 | 58.2 |
| LVS5-29 | 1035 | 1392 | 186 | 120 | 59.9 |
| LVS5-36 | 210 | 142 |

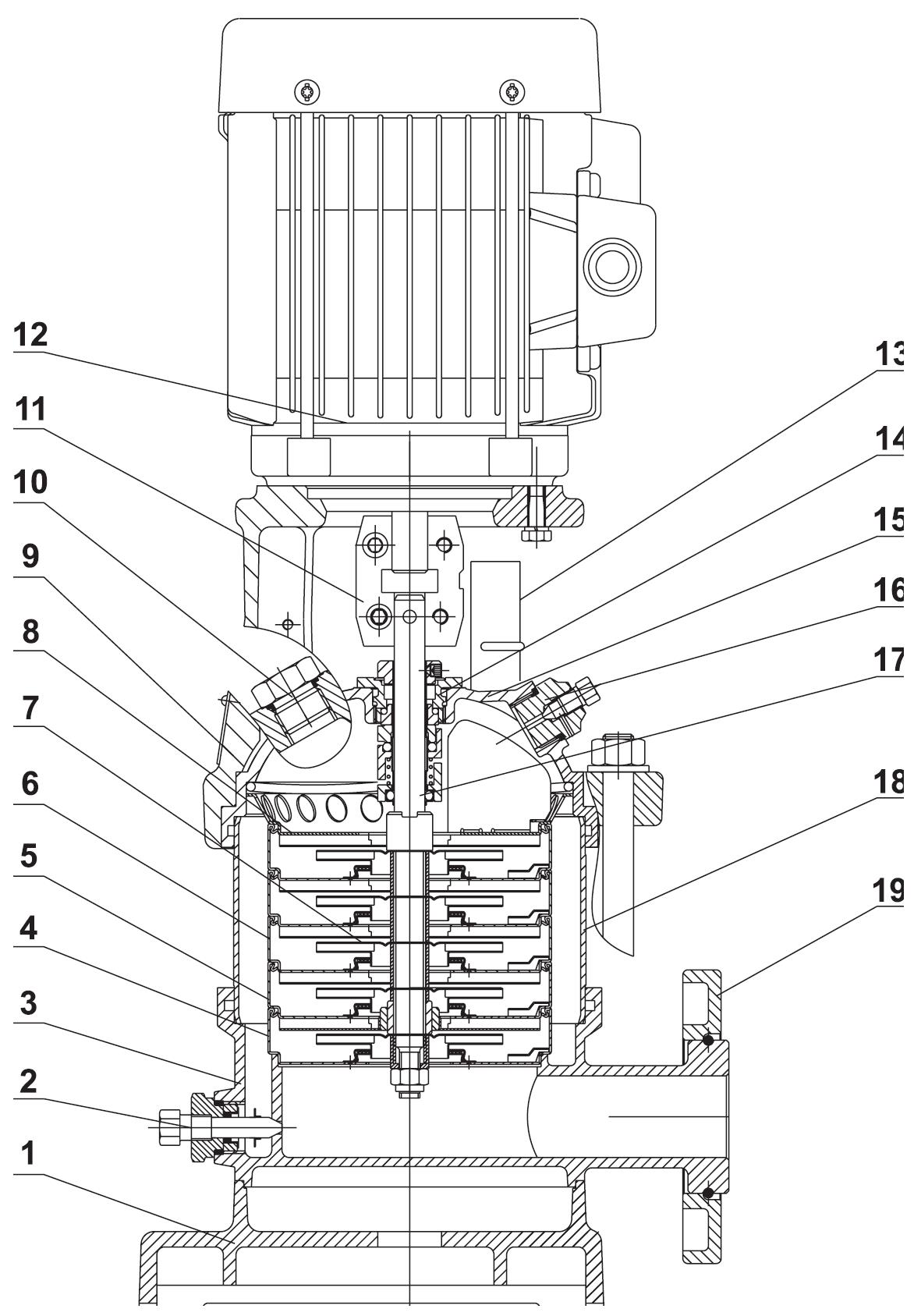

Exploded view
| No. | Type | Materials | Buy |
|---|---|---|---|
| 1 | Base | cast iron HT200 | |
| 2 | Drain plug | AISI 304 stainless steel | |
| 3 | Lower water box | ZG304 | |
| 4 | Diffuser | AISI 304 stainless steel | |
| 5 | Diffuser with bearing | AISI 304 stainless steel | |
| 6 | Intermediate diffuser | AISI 304 stainless steel | |
| 7 | Impeller | AISI 304 stainless steel | |
| 8 | Final scroll | AISI 304 stainless steel | |
| 9 | Lantern | cast iron HT200 | |
| 10 | Filling plug | AISI 304 stainless steel | |
| 11 | Coupling | ||
| 12 | Engine | ||
| 13 | Coupling protection housing | AISI 304 stainless steel | |
| 14 | Cartridge mechanical seal | ||
| 15 | Pump bottom | ZG304 | |
| 16 | Drain plug | AISI 304 stainless steel | |
| 17 | Pump shaft | AISI 304 stainless steel | |
| 18 | Jacket | AISI 304 stainless steel | |
| 19 | Flange | ZG35 cast steel |
