LVS3 Vertical multicellular stainless steel in line pump
Application
- Transfer of liquids with low viscosity, non-flammable and non-explosive, not containing solid particles or fibers. These liquids must not chemically attack the materials of the pump.
- Water supply for tall buildings, pumping stations, overpressure in drinking water
- Washing stations, heating water circulation, air conditioning water circulation, water treatment systems
- Ultrafiltration, reverse osmosis, distillation systems, municipal swimming pools
- Irrigation: sprinkling, drip
- Food industry
- Fire fighting systems
Pump
- Liquid temperature: from -20°C to +120°C
- Nominal flow: 3 m³/h
- maximum pressure: 23 bars
- pH between 4 and 10
Motor
- IE3 motor
- Protection class: IP55
- Maximum ambient temperature: +40°
Identification codes
LVS
m
3
-10
-B
/F(K, G)
DIN flange (clamp fitting, threaded fitting)
inox 316 (by default, inox 304)
number of impellers
Nominal flow (m³/h)
Single-phase motor
Vertical multistage stainless steel in line pump
Technical data
| Q (m³/h) | 1.2 | 1.6 | 2 | 2.4 | 2.8 | 3.2 | 3.6 | 4 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Price excl. VAT | kW | Q (l/min) | 20 | 27 | 33 | 40 | 47 | 53 | 60 | 67 |
| LVSm3-5 | A1.17.661 | 1,017.00 € | 0.37 | H (m) | 31 | 31 | 29 | 27 | 25 | 24 | 20 | 17 |
| LVSm3-7 | A1.17.663 | 1,072.00 € | 0.55 | 43 | 40 | 40 | 37 | 35 | 32 | 28 | 24 | |
| LVS3-10/F | A1.17.855 | 1,294.00 € | 0.75 | 62 | 60 | 57 | 54 | 50 | 46 | 40 | 33 | |
| LVSm3-12 | A1.17.668 | 1,303.00 € | 1.1 | 75 | 72 | 69 | 65 | 61 | 56 | 48 | 41 | |
| LVS3-13/F | A1.17.858 | 1,370.00 € | 1.1 | 80 | 78 | 74 | 70 | 65 | 60 | 51 | 44 | |
| LVS3-17/F | A1.17.860 | 1,604.00 € | 1.5 | 107 | 104 | 100 | 94 | 87 | 78 | 70 | 59 | |
| LVSm3-19 | A1.17.672 | 1,520.00 € | 1.5 | 119 | 116 | 111 | 104 | 97 | 87 | 77 | 65 | |
| LVSm3-21 | A1.17.673 | 1,651.00 € | 2.2 | 133 | 129 | 124 | 117 | 109 | 97 | 88 | 75 | |
| LVSm3-23 | A1.17.674 | 1,688.00 € | 2.2 | 146 | 141 | 135 | 128 | 119 | 105 | 95 | 81 | |
| LVS3-25/F | A1.17.864 | 1,863.00 € | 2.2 | 158 | 153 | 146 | 138 | 128 | 115 | 102 | 87 | |
| LVSm3-27 | A1.17.676 | 1,770.00 € | 2.2 | 170 | 164 | 157 | 148 | 138 | 124 | 110 | 93 | |
| LVSm3-29 | A1.17.677 | 2,026.00 € | 2.2 | 182 | 176 | 168 | 159 | 147 | 133 | 118 | 100 | |
| LVSm3-31 | A1.17.678 | 1,972.00 € | 3 | 197 | 191 | 183 | 173 | 161 | 142 | 128 | 110 | |
| LVSm3-33 | A1.17.679 | 1,798.00 € | 3 | 210 | 203 | 194 | 194 | 170 | 152 | 137 | 116 |
Hydraulic performance

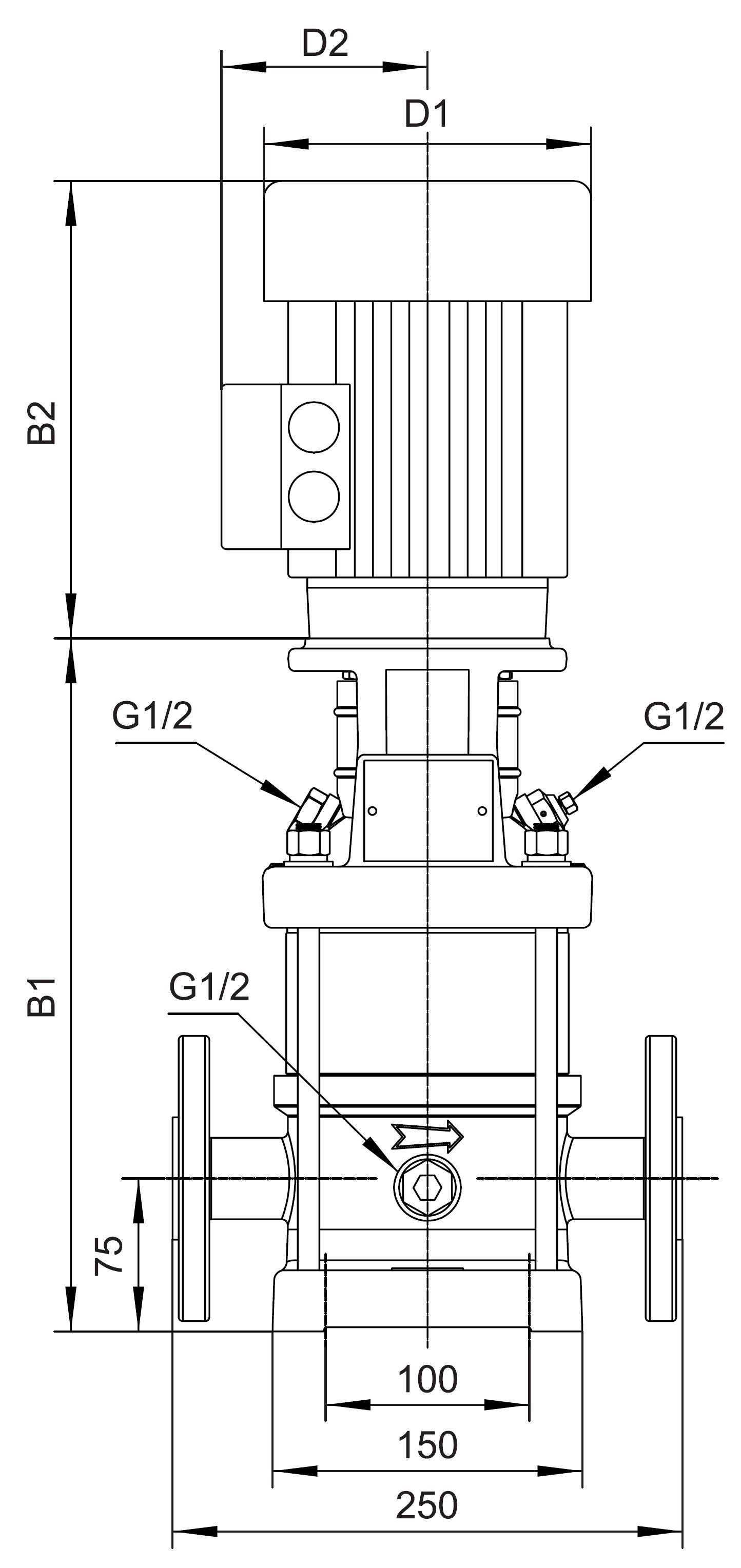

Dimensions
| Models | B1/bride-DIN | B1+B2/bride-DIN | D1 | D2 | Weight |
|---|---|---|---|---|---|
| LVSm3-5 | 318 | 532 | 130 | 105 | 22.8 |
| LVSm3-7 | 354 | 568 | 130 | 105 | 23.7 |
| LVS3-10 | 412 | 680 | 150 | 124 | 27.2 |
| LVSm3-12 | 448 | 716 | 150 | 124 | 29.7 |
| LVS3-13 | 466 | 734 | 150 | 124 | 30.1 |
| LVS3-17 | 554 | 872 | 164 | 127 | 39.2 |
| LVSm3-19 | 590 | 908 | 164 | 127 | 40.2 |
| LVSm3-21 | 626 | 944 | 164 | 127 | 42.2 |
| LVSm3-23 | 662 | 980 | 164 | 127 | 42.4 |
| LVS3-25 | 698 | 1016 | 164 | 127 | 44.4 |
| LVSm3-27 | 734 | 1052 | 164 | 127 | 44.5 |
| LVSm3-29 | 770 | 1088 | 164 | 127 | 45.3 |
| LVSm3-31 | 810 | 1150 | 186 | 120 | 52.3 |
| LVSm3-33 | 846 | 1186 | 186 | 120 | 53.1 |
Exploded view
| No. | Type | Materials | Buy |
|---|---|---|---|
| 1 | Base | cast iron HT200 | |
| 2 | Drain plug | AISI 304 stainless steel | |
| 3 | Lower water box | ZG304 | |
| 4 | Diffuser | AISI 304 stainless steel | |
| 5 | Diffuser with bearing | AISI 304 stainless steel | |
| 6 | Intermediate diffuser | AISI 304 stainless steel | |
| 7 | Impeller | AISI 304 stainless steel | |
| 8 | Final scroll | AISI 304 stainless steel | |
| 9 | Lantern | cast iron HT200 | |
| 10 | Filling plug | AISI 304 stainless steel | |
| 11 | Coupling | ||
| 12 | Engine | ||
| 13 | Coupling protection housing | AISI 304 stainless steel | |
| 14 | Cartridge mechanical seal | ||
| 15 | Pump bottom | ZG304 | |
| 16 | Drain plug | AISI 304 stainless steel | |
| 17 | Pump shaft | AISI 304 stainless steel | |
| 18 | Jacket | AISI 304 stainless steel | |
| 19 | Flange | ZG35 cast steel |
