LVS20 Vertical multicellular stainless steel in line pump
Application
- Transfer of liquids with low viscosity, non-flammable and non-explosive, not containing solid particles or fibers. These liquids must not chemically attack the materials of the pump.
- Water supply for tall buildings, pumping stations, overpressure in drinking water
- Washing stations, heating water circulation, air conditioning water circulation, water treatment systems
- Ultrafiltration, reverse osmosis, distillation systems, municipal swimming pools
- Irrigation: sprinkling, drip
- Food industry
- Fire fighting systems
Pump
- Liquid temperature: from -20°C to +120°C
- Nominal flow: 20 m³/h
- maximum pressure: 25 bars
- pH between 4 and 10
Motor
- IE3 motor
- Protection class: IP55
- Maximum ambient temperature: +40°
Identification codes
LVS
m
20
-10
-B
/F
DIN flange
inox 316 (by default, inox 304)
number of impellers
Nominal flow (m³/h)
Single-phase motor
Vertical multistage stainless steel in line pump
Technical data
| Q (m³/h) | 4 | 8 | 12 | 16 | 20 | 24 | 28 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Price excl. VAT | kW | Q (l/min) | 67 | 133 | 200 | 267 | 333 | 400 | 467 |
| LVSm20-1/F | A1.17.794 | 1,550.00 € | 1.1 | H (m) | 13 | 13 | 13 | 12 | 10.5 | 9.5 | 6.5 |
| LVS20-1/F | A1.17.940 | 1,621.00 € | 1.1 | 13 | 13 | 13 | 12 | 10.5 | 9.5 | 6.5 | |
| LVS20-3/F | A1.17.942 | 2,121.00 € | 4 | 43 | 43 | 42 | 39 | 36 | 30 | 23 | |
| LVS20-5/F | A1.17.944 | 2,922.00 € | 5.5 | 73 | 72 | 70 | 66 | 60 | 52 | 40 | |
| LVS20-6/F | A1.17.945 | 3,224.00 € | 7.5 | 87 | 86 | 84 | 80 | 72 | 62 | 49 | |
| LVS20-7/F | A1.17.946 | 3,237.00 € | 7.5 | 102 | 100 | 97 | 93 | 84 | 72 | 57 | |
| LVS20-10/F | A1.17.948 | 4,064.00 € | 11 | 146 | 144 | 140 | 132 | 120 | 105 | 83 | |
| LVS20-12/F | A1.17.949 | 4,379.00 € | 15 | 175 | 174 | 169 | 161 | 144 | 127 | 101 | |
| LVS20-14/F | A1.17.950 | 4,557.00 € | 15 | 204 | 202 | 197 | 187 | 168 | 147 | 117 | |
| LVS20-17/F | A1.17.951 | 4,836.00 € | 18.5 | 249 | 247 | 241 | 229 | 205 | 181 | 144 |
Hydraulic performance

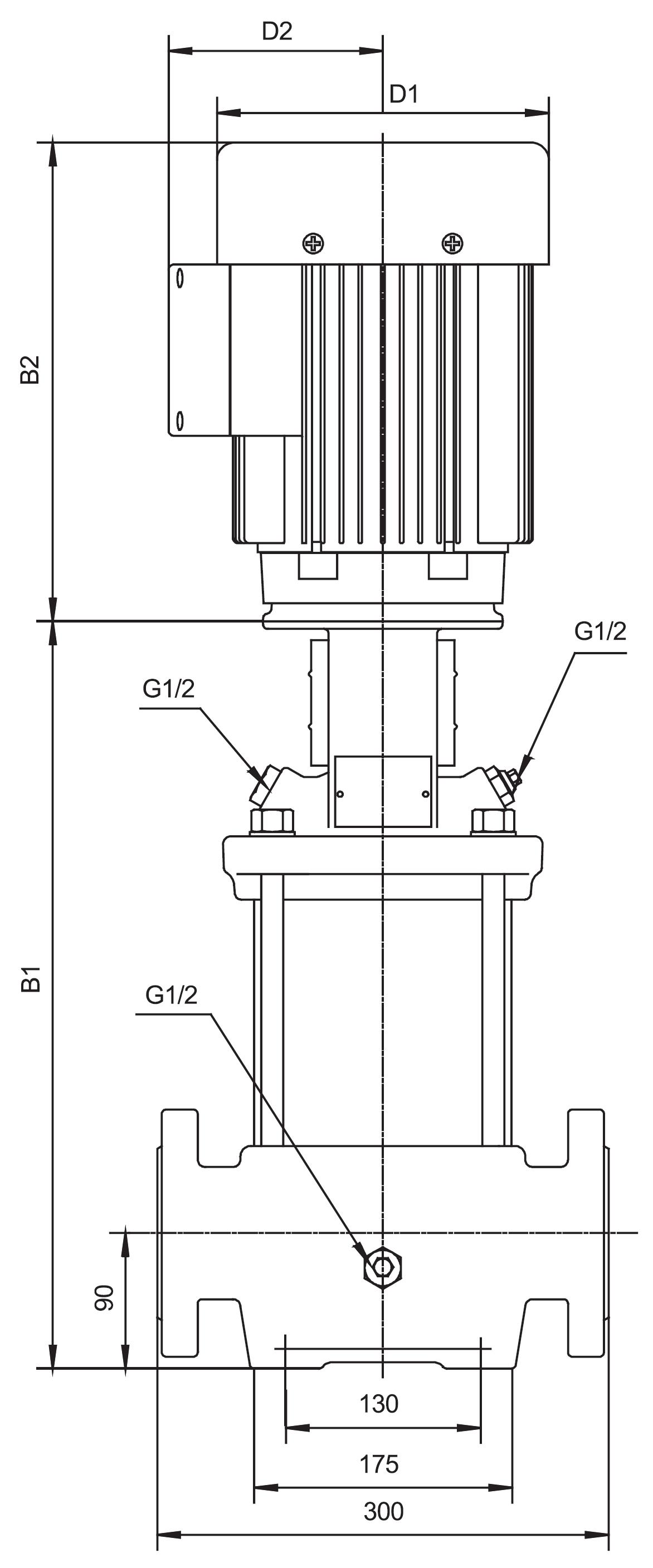

Dimensions
| Models | B1 | B1+B2 | D1 | D2 | Weight |
|---|---|---|---|---|---|
| LVSm20-1/F | 354 | 622 | 150 | 125 | 44.9 |
| LVS20-1/F | 354 | 622 | 150 | 125 | 44.9 |
| LVS20-3/F | 465 | 805 | 186 | 120 | 59.3 |
| LVS20-5/F | 587 | 984 | 210 | 142 | 73.9 |
| LVS20-6/F | 632 | 1029 | 210 | 142 | 81.3 |
| LVS20-7/F | 677 | 1074 | 210 | 142 | 82.1 |
| LVS20-10/F | 889 | 1388 | 254 | 175 | 133.2 |
| LVS20-12/F | 979 | 1478 | 254 | 175 | 146.9 |
| LVS20-14/F | 1069 | 1568 | 254 | 175 | 151.9 |
| LVS20-17/F | 1204 | 1764 | 330 | 250 | 208 |
Exploded view
| No. | Type | Materials | Buy |
|---|---|---|---|
| 1 | Base | cast iron HT200 | |
| 2 | Drain plug | AISI 304 stainless steel | |
| 3 | Lower water box | ZG304 | |
| 4 | Diffuser | AISI 304 stainless steel | |
| 5 | Diffuser with bearing | AISI 304 stainless steel | |
| 6 | Intermediate diffuser | AISI 304 stainless steel | |
| 7 | Impeller | stainless steel AISI 304 / cast iron HT200 | |
| 8 | Final scroll | AISI 304 stainless steel | |
| 9 | Filling plug | cast iron HT200 | |
| 10 | Lantern | cast iron HT200 | |
| 11 | Coupling | ||
| 12 | Engine | ||
| 13 | Coupling protection housing | AISI 304 stainless steel | |
| 14 | Cartridge mechanical seal | ||
| 15 | Drain plug | AISI 304 stainless steel | |
| 16 | Pump bottom | ZG304 | |
| 17 | Pump shaft | AISI 304 stainless steel | |
| 18 | Jacket | AISI 304 stainless steel | |
| 19 | Flange | ZG35 cast steel |
