LVS15 Vertical multicellular stainless steel in line pump
Application
- Transfer of liquids with low viscosity, non-flammable and non-explosive, not containing solid particles or fibers. These liquids must not chemically attack the materials of the pump.
- Water supply for tall buildings, pumping stations, overpressure in drinking water
- Washing stations, heating water circulation, air conditioning water circulation, water treatment systems
- Ultrafiltration, reverse osmosis, distillation systems, municipal swimming pools
- Irrigation: sprinkling, drip
- Food industry
- Fire fighting systems
Pump
- Liquid temperature: from -20°C to +120°C
- Nominal flow: 15 m³/h
- maximum pressure: 23 bars
- pH between 4 and 10
Motor
- IE3 motor
- Protection class: IP55
- Maximum ambient temperature: +40°
Identification codes
LVS
m
15
-10
-B
/F
DIN flange
inox 316 (by default, inox 304)
number of impellers
Nominal flow (m³/h)
Single-phase motor
Vertical multistage stainless steel in line pump
Technical data
| Q (m³/h) | 3 | 6 | 9 | 12 | 15 | 18 | 21 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Price excl. VAT | kW | Q (l/min) | 50 | 100 | 150 | 200 | 250 | 300 | 350 |
| LVSm15-2/F | A1.17.792 | 1,707.00 € | 2.2 | H (m) | 28 | 27 | 26 | 25 | 23 | 21 | 18 |
| LVS15-3/F | A1.17.929 | 2,065.00 € | 3 | 42 | 41 | 40 | 38 | 35 | 32 | 28 | |
| LVS15-5/F | A1.17.931 | 2,231.00 € | 4 | 70 | 68 | 66 | 64 | 58 | 53 | 48 | |
| LVS15-7/F | A1.17.933 | 3,099.00 € | 5.5 | 98 | 96 | 94 | 89 | 83 | 75 | 65 | |
| LVS15-9/F | A1.17.935 | 3,340.00 € | 7.5 | 125 | 123 | 120 | 115 | 108 | 97 | 84 | |
| LVS15-10/F | A1.17.936 | 4,063.00 € | 11 | 140 | 138 | 136 | 129 | 120 | 109 | 95 | |
| LVS15-14/F | A1.17.938 | 4,339.00 € | 11 | 194 | 192 | 188 | 180 | 166 | 151 | 130 |
Hydraulic performance
Dimensions
| Models | B1 | B1+B2 | D1 | D2 | Weight |
|---|---|---|---|---|---|
| LVSm15-2/F | 415 | 733 | 164 | 127 | 52.5 |
| LVS15-3/F | 465 | 805 | 186 | 120 | 60.9 |
| LVS15-5/F | 555 | 895 | 186 | 120 | 65.2 |
| LVS15-7/F | 677 | 1074 | 210 | 142 | 76.1 |
| LVS15-9/F | 767 | 1164 | 210 | 142 | 83.8 |
| LVS15-10/F | 889 | 1388 | 254 | 175 | 133.2 |
| LVS15-14/F | 1069 | 1568 | 254 | 175 | 137.2 |

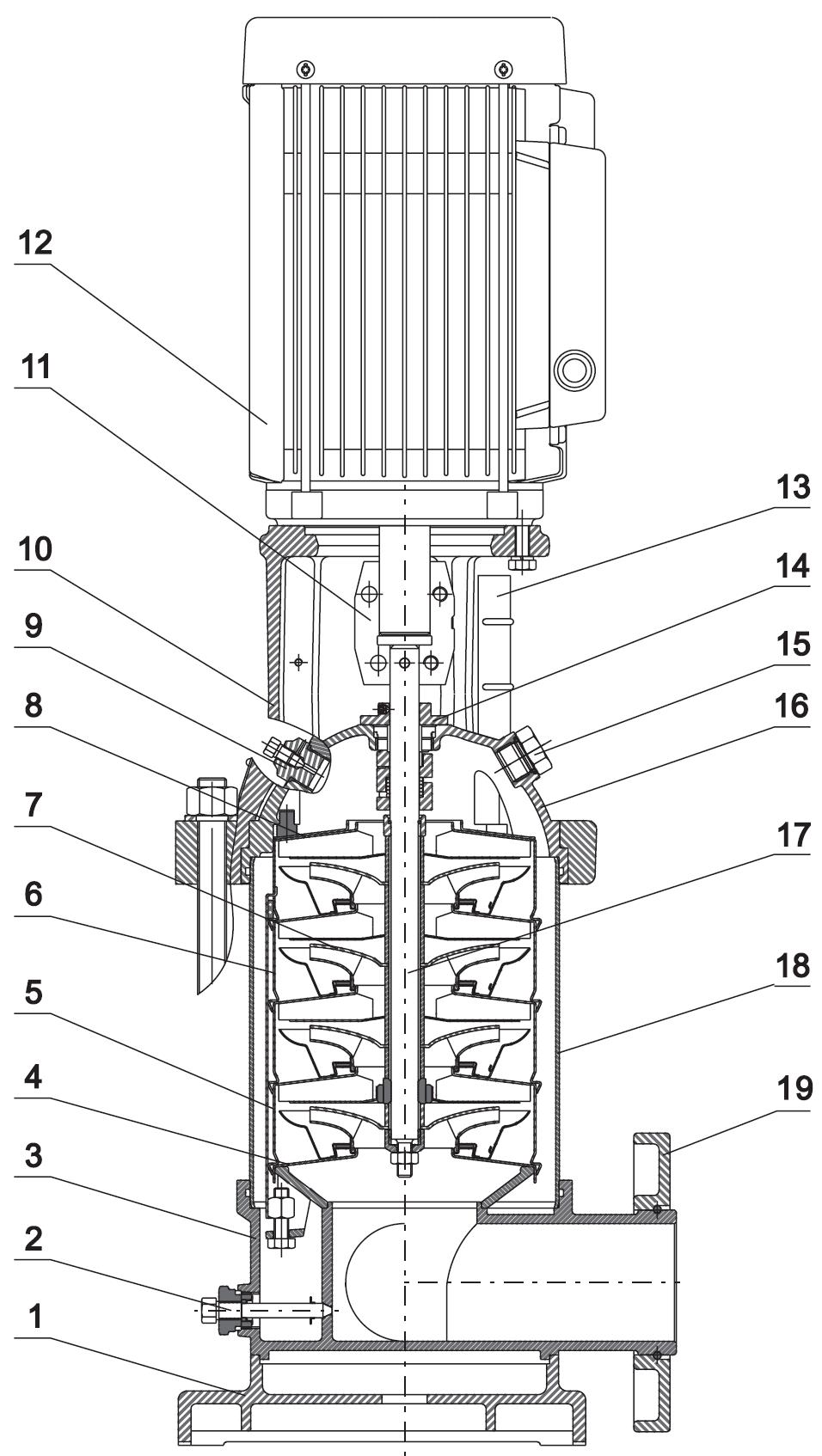

Exploded view
| No. | Type | Materials | Buy |
|---|---|---|---|
| 1 | Base | cast iron HT200 | |
| 2 | Drain plug | AISI 304 stainless steel | |
| 3 | Lower water box | ZG304 | |
| 4 | Diffuser | AISI 304 stainless steel | |
| 5 | Diffuser with bearing | AISI 304 stainless steel | |
| 6 | Intermediate diffuser | AISI 304 stainless steel | |
| 7 | Impeller | AISI 304 stainless steel | |
| 8 | Final scroll | AISI 304 stainless steel | |
| 9 | Filling plug | cast iron HT200 | |
| 10 | Lantern | cast iron HT200 | |
| 11 | Coupling | ||
| 12 | Engine | ||
| 13 | Coupling protection housing | stainless steel AISI 304 / cast iron HT200 | |
| 14 | Cartridge mechanical seal | ||
| 15 | Drain plug | AISI 304 stainless steel | |
| 16 | Pump bottom | ZG304 | |
| 17 | Pump shaft | AISI 304 stainless steel | |
| 18 | Jacket | AISI 304 stainless steel | |
| 19 | Flange | ZG35 cast steel |
Base for LVS15
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LVSm15-2/F | No available part. | |||
| LVS15-3/F | No available part. | |||
| LVS15-5/F | No available part. | |||
| LVS15-7/F | No available part. | |||
| LVS15-9/F | No available part. | |||
| LVS15-10/F | No available part. | |||
| LVS15-14/F | No available part. | |||
Drain plug for LVS15
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LVSm15-2/F | No available part. | |||
| LVS15-3/F | No available part. | |||
| LVS15-5/F | No available part. | |||
| LVS15-7/F | No available part. | |||
| LVS15-9/F | No available part. | |||
| LVS15-10/F | No available part. | |||
| LVS15-14/F | No available part. | |||
Lower water box for LVS15
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LVSm15-2/F | No available part. | |||
| LVS15-3/F | No available part. | |||
| LVS15-5/F | No available part. | |||
| LVS15-7/F | No available part. | |||
| LVS15-9/F | No available part. | |||
| LVS15-10/F | No available part. | |||
| LVS15-14/F | No available part. | |||
Diffuser for LVS15
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LVSm15-2/F | No available part. | |||
| LVS15-3/F | No available part. | |||
| LVS15-5/F | No available part. | |||
| LVS15-7/F | No available part. | |||
| LVS15-9/F | No available part. | |||
| LVS15-10/F | No available part. | |||
| LVS15-14/F | No available part. | |||
Diffuser with bearing for LVS15
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LVSm15-2/F | No available part. | |||
| LVS15-3/F | No available part. | |||
| LVS15-5/F | No available part. | |||
| LVS15-7/F | No available part. | |||
| LVS15-9/F | No available part. | |||
| LVS15-10/F | No available part. | |||
| LVS15-14/F | No available part. | |||
Intermediate diffuser for LVS15
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LVSm15-2/F | No available part. | |||
| LVS15-3/F | No available part. | |||
| LVS15-5/F | No available part. | |||
| LVS15-7/F | No available part. | |||
| LVS15-9/F | No available part. | |||
| LVS15-10/F | No available part. | |||
| LVS15-14/F | No available part. | |||
Impeller for LVS15
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LVSm15-2/F | No available part. | |||
| LVS15-3/F | No available part. | |||
| LVS15-5/F | No available part. | |||
| LVS15-7/F | No available part. | |||
| LVS15-9/F | No available part. | |||
| LVS15-10/F | No available part. | |||
| LVS15-14/F | No available part. | |||
Final scroll for LVS15
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LVSm15-2/F | No available part. | |||
| LVS15-3/F | No available part. | |||
| LVS15-5/F | No available part. | |||
| LVS15-7/F | No available part. | |||
| LVS15-9/F | No available part. | |||
| LVS15-10/F | No available part. | |||
| LVS15-14/F | No available part. | |||
Filling plug for LVS15
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LVSm15-2/F | No available part. | |||
| LVS15-3/F | No available part. | |||
| LVS15-5/F | No available part. | |||
| LVS15-7/F | No available part. | |||
| LVS15-9/F | No available part. | |||
| LVS15-10/F | No available part. | |||
| LVS15-14/F | No available part. | |||
Lantern for LVS15
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LVSm15-2/F | No available part. | |||
| LVS15-3/F | No available part. | |||
| LVS15-5/F | No available part. | |||
| LVS15-7/F | No available part. | |||
| LVS15-9/F | No available part. | |||
| LVS15-10/F | No available part. | |||
| LVS15-14/F | No available part. | |||
Coupling for LVS15
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LVSm15-2/F | No available part. | |||
| LVS15-3/F | No available part. | |||
| LVS15-5/F | No available part. | |||
| LVS15-7/F | No available part. | |||
| LVS15-9/F | No available part. | |||
| LVS15-10/F | No available part. | |||
| LVS15-14/F | No available part. | |||
Engine for LVS15
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LVSm15-2/F | No available part. | |||
| LVS15-3/F | No available part. | |||
| LVS15-5/F | No available part. | |||
| LVS15-7/F | No available part. | |||
| LVS15-9/F | No available part. | |||
| LVS15-10/F | No available part. | |||
| LVS15-14/F | No available part. | |||
Coupling protection housing for LVS15
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LVSm15-2/F | No available part. | |||
| LVS15-3/F | No available part. | |||
| LVS15-5/F | No available part. | |||
| LVS15-7/F | No available part. | |||
| LVS15-9/F | No available part. | |||
| LVS15-10/F | No available part. | |||
| LVS15-14/F | No available part. | |||
Cartridge mechanical seal for LVS15
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LVSm15-2/F | 10010413 | -- | -- | -- |
| LVS15-3/F | 10010413 | -- | -- | -- |
| LVS15-5/F | 10010413 | -- | -- | -- |
| LVS15-7/F | 10010413 | -- | -- | -- |
| LVS15-9/F | 10010413 | -- | -- | -- |
| LVS15-10/F | 10010413 | -- | -- | -- |
| LVS15-14/F | 10010413 | -- | -- | -- |
Drain plug for LVS15
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LVSm15-2/F | No available part. | |||
| LVS15-3/F | No available part. | |||
| LVS15-5/F | No available part. | |||
| LVS15-7/F | No available part. | |||
| LVS15-9/F | No available part. | |||
| LVS15-10/F | No available part. | |||
| LVS15-14/F | No available part. | |||
Pump bottom for LVS15
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LVSm15-2/F | No available part. | |||
| LVS15-3/F | No available part. | |||
| LVS15-5/F | No available part. | |||
| LVS15-7/F | No available part. | |||
| LVS15-9/F | No available part. | |||
| LVS15-10/F | No available part. | |||
| LVS15-14/F | No available part. | |||
Pump shaft for LVS15
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LVSm15-2/F | No available part. | |||
| LVS15-3/F | No available part. | |||
| LVS15-5/F | No available part. | |||
| LVS15-7/F | No available part. | |||
| LVS15-9/F | No available part. | |||
| LVS15-10/F | No available part. | |||
| LVS15-14/F | No available part. | |||
Jacket for LVS15
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LVSm15-2/F | No available part. | |||
| LVS15-3/F | No available part. | |||
| LVS15-5/F | No available part. | |||
| LVS15-7/F | No available part. | |||
| LVS15-9/F | No available part. | |||
| LVS15-10/F | No available part. | |||
| LVS15-14/F | No available part. | |||
Flange for LVS15
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LVSm15-2/F | No available part. | |||
| LVS15-3/F | No available part. | |||
| LVS15-5/F | No available part. | |||
| LVS15-7/F | No available part. | |||
| LVS15-9/F | No available part. | |||
| LVS15-10/F | No available part. | |||
| LVS15-14/F | No available part. | |||
Packaging
| Models | Weight (kg) | Length L (mm) | Width W (mm) | Height H (mm) |
|---|---|---|---|---|
| LVSm15-2/F | 48.2 | 795 | 310 | 370 |
| LVS15-3/F | 62.9 | 865 | 310 | 370 |
| LVS15-5/F | 72.1 | 980 | 310 | 370 |
| LVS15-7/F | 102.6 | 1145 | 340 | 380 |
| LVS15-9/F | 0 | 0 | 0 | 0 |
| LVS15-10/F | 172 | 1480 | 395 | 580 |
| LVS15-14/F | 183 | 1640 | 395 | 580 |
