LVS120 Vertical multicellular stainless steel in line pump
Application
- Transfer of liquids with low viscosity, non-flammable and non-explosive, not containing solid particles or fibers. These liquids must not chemically attack the materials of the pump.
- Water supply for tall buildings, pumping stations, overpressure in drinking water
- Washing stations, heating water circulation, air conditioning water circulation, water treatment systems
- Ultrafiltration, reverse osmosis, distillation systems, municipal swimming pools
- Irrigation: sprinkling, drip
- Food industry
- Fire fighting systems
Pump
- Liquid temperature: from -20°C to +120°C
- Nominal flow: 120 m³/h
- maximum pressure: 16 bars
- pH between 4 and 10
Motor
- IE3 motor
- Protection class: IP55
- Maximum ambient temperature: +40°
Identification codes
LVS
120
-5
-2
-B
/F
DIN flange
inox 316 (by default, inox 304)
number of small impellers
number of impellers
Nominal flow (m³/h)
Vertical multistage stainless steel in line pump
Technical data
| Q (m³/h) | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Price excl. VAT | kW | Q (l/min) | 1000 | 1167 | 1333 | 1500 | 1667 | 1833 | 2000 | 2167 | 2333 | 2500 |
| LVS120-2-2/F | A1.22.041 | 16,152.00 € | 15 | H (m) | 34 | 33.6 | 33 | 31 | 30.2 | 30 | 28.5 | 27 | 25 | 24 |
Hydraulic performance

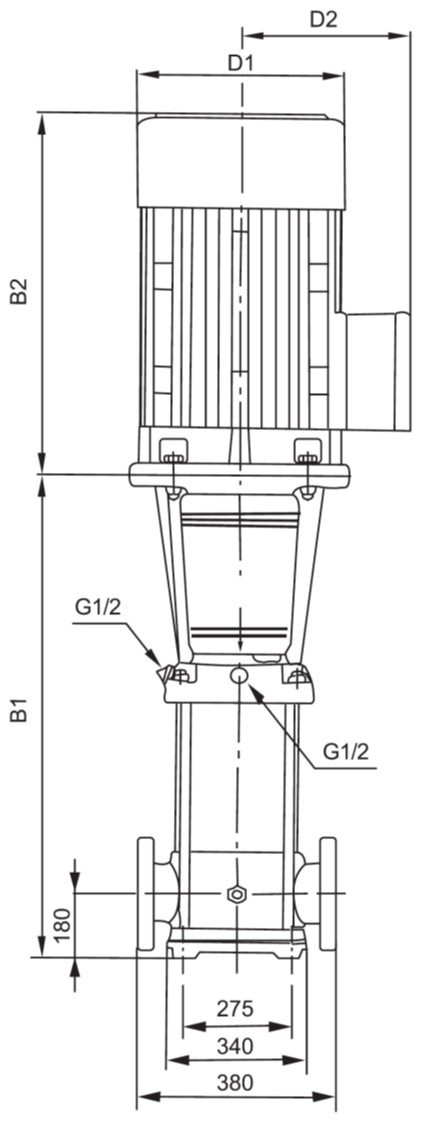

Dimensions
| Models | B1 | B1+B2 | D1 | D2 | Weight |
|---|---|---|---|---|---|
| LVS120-2-2/F | 1000 | 1499 | 254 | 175 | 210 |

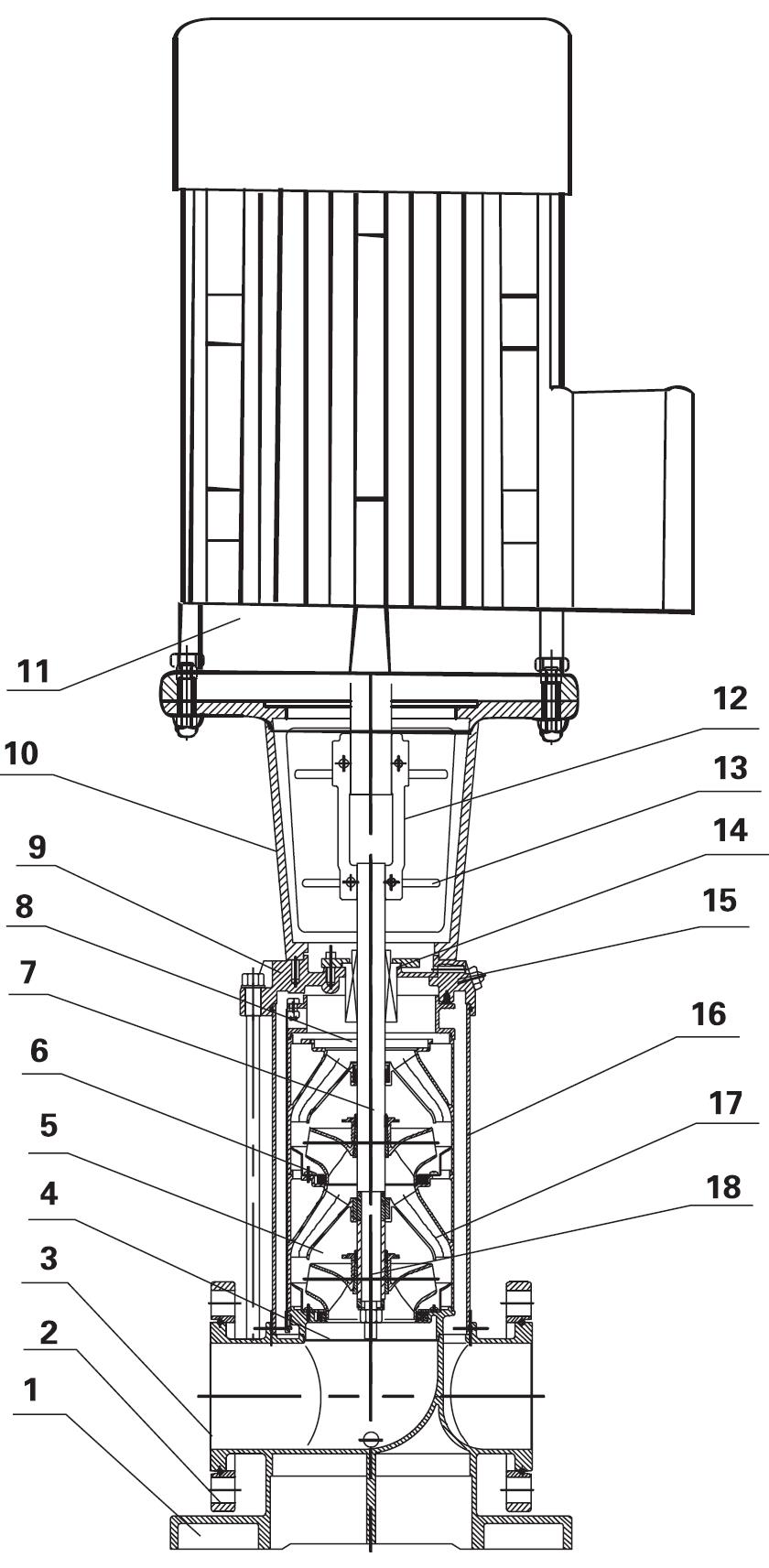

Exploded view
| No. | Type | Materials | Buy |
|---|---|---|---|
| 1 | Base | cast iron HT200 | |
| 2 | Flange | ZG35 cast steel | |
| 3 | Lower water box | ZG304 | |
| 4 | Diffuser | AISI 304 stainless steel | |
| 5 | Intermediate diffuser | AISI 304 stainless steel | |
| 6 | Diffuser with bearing | AISI 304 stainless steel | |
| 7 | Impeller | AISI 304 stainless steel | |
| 8 | Diffuser | AISI 304 stainless steel | |
| 9 | Pump bottom | ZG304 | |
| 10 | Lantern | cast iron HT200 | |
| 11 | Engine | ||
| 12 | Coupling | QT400 cast iron | |
| 13 | Coupling protection housing | AISI 304 stainless steel | |
| 14 | Cartridge mechanical seal | ||
| 15 | Filling plug | AISI 304 stainless steel | |
| 16 | Jacket | AISI 304 stainless steel | |
| 17 | Clamping plate | AISI 304 stainless steel | |
| 18 | Pump shaft | AISI 304 stainless steel |
