LVS1 Vertical multicellular stainless steel in line pump
Application
- Transfer of liquids with low viscosity, non-flammable and non-explosive, not containing solid particles or fibers. These liquids must not chemically attack the materials of the pump.
- Water supply for tall buildings, pumping stations, overpressure in drinking water
- Washing stations, heating water circulation, air conditioning water circulation, water treatment systems
- Ultrafiltration, reverse osmosis, distillation systems, municipal swimming pools
- Irrigation: sprinkling, drip
- Food industry
- Fire fighting systems
Pump
- Liquid temperature: from -20°C to +120°C
- Nominal flow: 1 m³/h
- maximum pressure: 22 bars
- pH between 4 and 10
Motor
- IE3 motor
- Protection class: IP55
- Maximum ambient temperature: +40°
Identification codes
LVS
m
1
-10
-B
/F(K, G)
DIN flange (clamp fitting, threaded fitting)
inox 316 (by default, inox 304)
number of impellers
Nominal flow (m³/h)
Single-phase motor
Vertical multistage stainless steel in line pump
Technical data
| Q (m³/h) | 0.7 | 0.8 | 1 | 1.2 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Price excl. VAT | kW | Q (l/min) | 12 | 13 | 17 | 20 | 23 | 27 | 30 | 33 | 37 | 40 |
| LVS1-2 | A1.17.800 | 978.00 € | 0.37 | H (m) | 12 | 12 | 12 | 12 | 11 | 11 | 10 | 10 | 9 | 8 |
| LVS1-7 | A1.17.805 | 1,052.00 € | 0.37 | 42 | 41 | 40.5 | 39 | 37 | 35 | 32 | 30 | 26 | 22 | |
| LVS1-8 | A1.17.806 | 1,086.00 € | 0.55 | 48 | 47 | 46.5 | 45 | 43 | 40 | 38 | 34 | 30 | 26 | |
| LVS1-10 | A1.17.808 | 1,156.00 € | 0.55 | 59 | 58 | 57.5 | 55 | 53 | 50 | 46 | 41 | 35 | 30 | |
| LVS1-15 | A1.17.812 | 1,357.00 € | 0.75 | 90 | 88 | 86 | 83 | 79 | 74 | 68 | 61 | 54 | 45 | |
| LVS1-17 | A1.17.813 | 1,443.00 € | 1.1 | 102 | 101 | 98 | 95 | 91 | 85 | 78 | 70 | 62 | 52 | |
| LVS1-19 | A1.17.814 | 1,465.00 € | 1.1 | 114 | 112 | 110 | 106 | 101 | 94 | 87 | 78 | 68 | 57 | |
| LVSm1-21 | A1.17.626 | 1,526.00 € | 1.1 | 125 | 123 | 120 | 116 | 110 | 103 | 95 | 85 | 74 | 61 | |
| LVS1-21 | A1.17.815 | 1,552.00 € | 1.1 | 125 | 123 | 120 | 116 | 110 | 103 | 95 | 85 | 74 | 61 |
Hydraulic performance

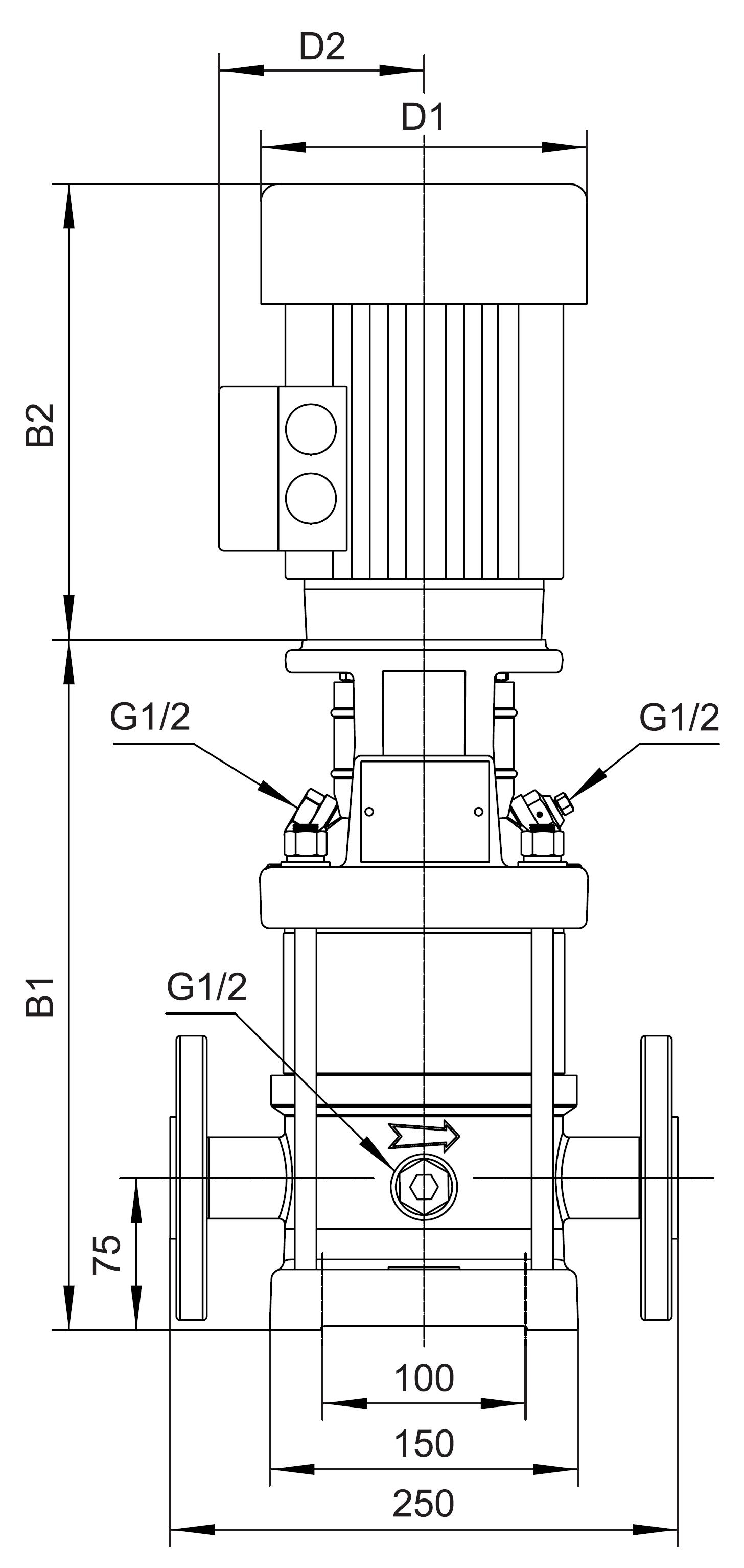

Dimensions
Exploded view
| No. | Type | Materials | Buy |
|---|---|---|---|
| 1 | Base | cast iron HT200 | |
| 2 | Drain plug | AISI 304 stainless steel | |
| 3 | Lower water box | ZG304 | |
| 4 | Diffuser | AISI 304 stainless steel | |
| 5 | Diffuser with bearing | AISI 304 stainless steel | |
| 6 | Intermediate diffuser | AISI 304 stainless steel | |
| 7 | Impeller | AISI 304 stainless steel | |
| 8 | Final scroll | AISI 304 stainless steel | |
| 9 | Lantern | cast iron HT200 | |
| 10 | Filling plug | AISI 304 stainless steel | |
| 11 | Coupling | ||
| 12 | Engine | ||
| 13 | Coupling protection housing | AISI 304 stainless steel | |
| 14 | Cartridge mechanical seal | ||
| 15 | Pump bottom | ZG304 | |
| 16 | Drain plug | AISI 304 stainless steel | |
| 17 | Pump shaft | AISI 304 stainless steel | |
| 18 | Jacket | AISI 304 stainless steel | |
| 19 | Flange | ZG35 cast steel |
