LVR5 vertical multistage stainless steel in line pump
Application
- Transfer of liquids with low viscosity, non-flammable and non-explosive, not containing solid particles or fibers. These liquids must not chemically attack the materials of the pump.
- Water supply for tall buildings, pumping stations, overpressure
- Washing stations, heating water circulation, air conditioning water circulation, water treatment systems
- Distillation systems, municipal swimming pools
- Irrigation: sprinkling, drip
- Industry
- Fire fighting systems
Pump
- Liquid temperature: from -20°C to +120°C
- Nominal flow: 5 m³/h
- maximum pressure: 24 bars
- pH between 4 and 10
Motor
- IE3 motor
- Protection class: IP55
- Maximum ambient temperature: +40°
Identification codes
LVR
m
5
-10
-B
/F(A, K, G)
DIN flange (oval, clamp fitting, threaded fitting)
inox 316 (by default, inox 304)
number of turbines
Nominal flow (m³/h)
Single-phase motor
vertical multicellular pump in cast iron
Technical data
| Q (m³/h) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 8.5 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Price excl. VAT | kW | Q (l/min) | 17 | 33 | 50 | 67 | 83 | 100 | 117 | 133 | 142 |
| LVR5-8/F | A1.17.416 | 1,084.00 € | 1.1 | H (m) | 53 | 51 | 48 | 45 | 40 | 36 | 31 | ||
| LVR5-10/F | A1.17.418 | 1,282.00 € | 1.5 | 67 | 65 | 62 | 59 | 53 | 48 | 41 |
Hydraulic performance
Dimensions

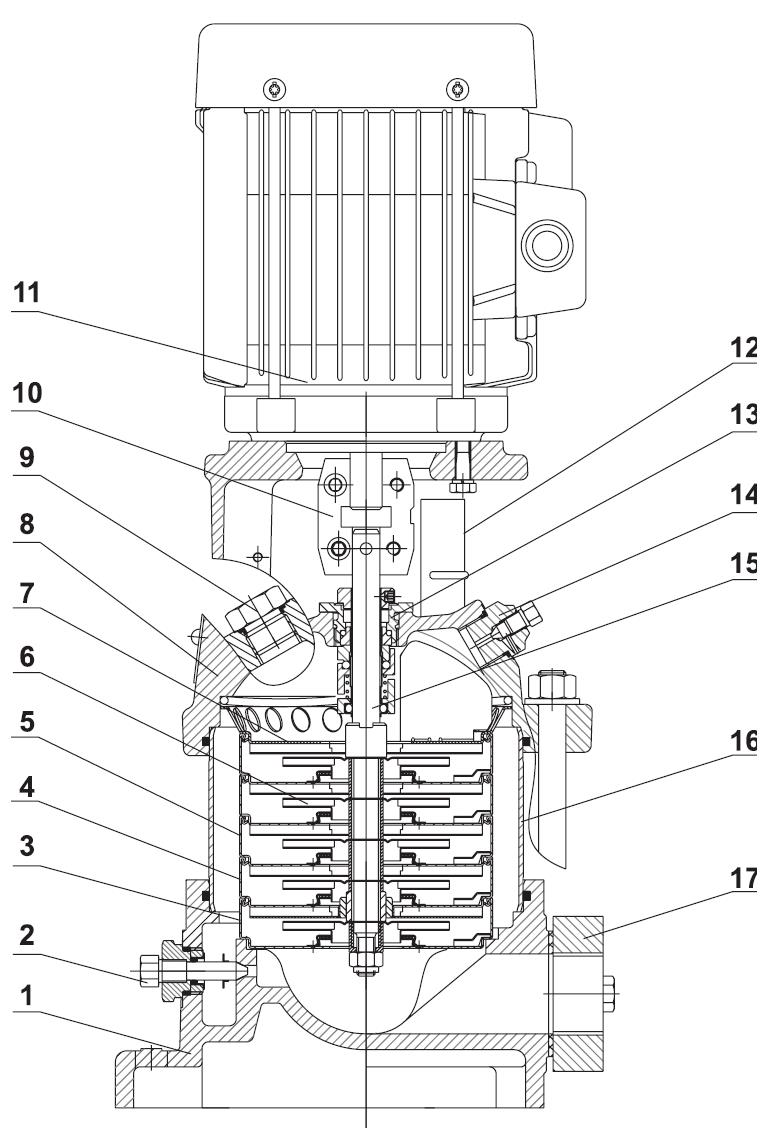

Exploded view
| No. | Type | Materials | Buy |
|---|---|---|---|
| 1 | Lower water box | cast iron HT200 | |
| 2 | Drain plug | AISI 304 stainless steel | |
| 3 | Diffuser | AISI 304 stainless steel | |
| 4 | Diffuser with bearing | AISI 304 stainless steel | |
| 5 | Intermediate diffuser | AISI 304 stainless steel | |
| 6 | Impeller | AISI 304 stainless steel | |
| 7 | Final scroll | AISI 304 stainless steel | |
| 8 | Lantern | cast iron HT200 | |
| 9 | Filling plug | AISI 304 stainless steel | |
| 10 | Coupling | ||
| 11 | Engine | ||
| 12 | Coupling protection housing | AISI 304 stainless steel | |
| 13 | Cartridge mechanical seal | ||
| 14 | Drain plug | AISI 304 stainless steel | |
| 15 | Pump shaft | AISI 304 stainless steel | |
| 16 | Jacket | AISI 304 stainless steel | |
| 17 | Flange | cast iron HT200 |
