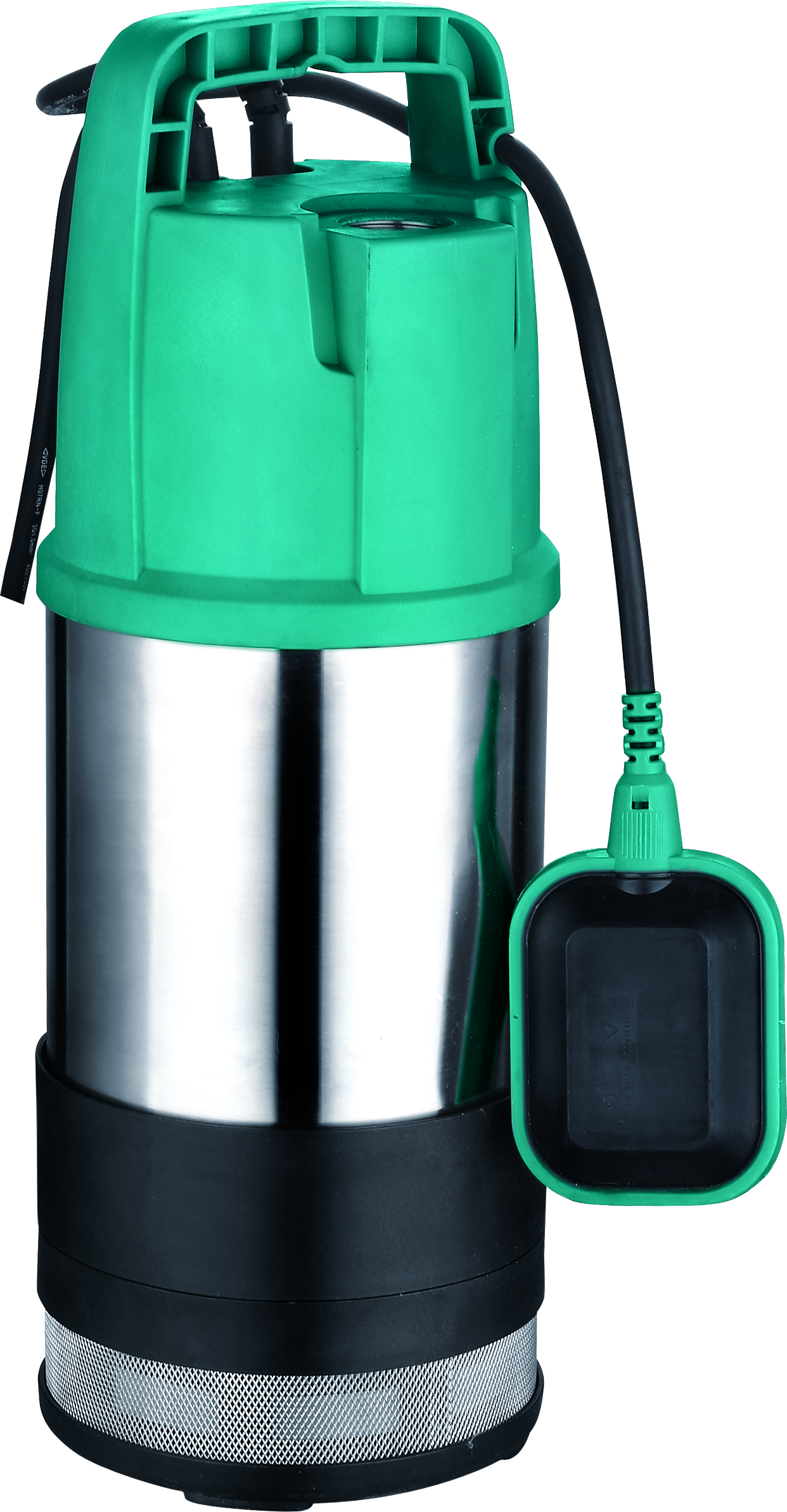

LKS-S Well pump
Application
- Pumping for wells, tanks
- For domestic applications (watering, small irrigation, rainwater recovery)
Pump
- High HMT thanks to several stages of impellers
- Stainless steel jacket
- Maximum liquid temperature: +35°C
- Maximum immersion depth: 5 m
- Maximum particle diameter: 1 mm
Motor
- Rewindable motor
- Integrated thermal protection
- Insulation class: F
- Protection class: IPX8
Identification codes
LKS
-900
S
Stainless steel jacket
Power (W)
Well pump
Technical data
| Q (m³/h) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 6.5 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Price excl. VAT | kW | Q (l/min) | 8 | 17 | 25 | 33 | 42 | 50 | 58 | 67 | 75 | 83 | 92 | 100 | 108 |
| LKS-900S | A3.13.543 | 289.00 € | 0.9 | H (m) | 31.5 | 31 | 30 | 28.5 | 27.5 | 26 | 23.5 | 22 | 19 | 17.5 | 14.5 | 11 | 7.5 |
Hydraulic performance
Exploded view
| No. | Type | Buy |
|---|---|---|
| 1 | Top cover | |
| 2 | Terminal Box | |
| 3 | Capacitor | |
| 4 | Float switch | |
| 5 | O-ring | |
| 6 | Jacket | |
| 7 | Rear cover | |
| 8 | Rotor | |
| 9 | Bearing | |
| 10 | Stator | |
| 11 | Stator casing | |
| 12 | Mechanical seal | |
| 13 | Front engine bearing support | |
| 14 | Guide sleeve | |
| 15 | Impeller | |
| 16 | Diffuser | |
| 17 | Clamping plate | |
| 18 | Diffuser | |
| 19 | Clamping plate | |
| 20 | Strainer | |
| 21 | Base |
Top cover for LKS-S
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LKS-900S | No available part. | |||
Terminal Box for LKS-S
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LKS-900S | No available part. | |||
Capacitor for LKS-S
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LKS-900S | No available part. | |||
Float switch for LKS-S
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LKS-900S | No available part. | |||
O-ring for LKS-S
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LKS-900S | No available part. | |||
Jacket for LKS-S
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LKS-900S | No available part. | |||
Rear cover for LKS-S
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LKS-900S | No available part. | |||
Rotor for LKS-S
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LKS-900S | No available part. | |||
Bearing for LKS-S
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LKS-900S | No available part. | |||
Stator for LKS-S
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LKS-900S | No available part. | |||
Stator casing for LKS-S
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LKS-900S | No available part. | |||
Mechanical seal for LKS-S
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LKS-900S | No available part. | |||
Front engine bearing support for LKS-S
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LKS-900S | No available part. | |||
Guide sleeve for LKS-S
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LKS-900S | No available part. | |||
Impeller for LKS-S
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LKS-900S | No available part. | |||
Diffuser for LKS-S
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LKS-900S | No available part. | |||
Clamping plate for LKS-S
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LKS-900S | No available part. | |||
Diffuser for LKS-S
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LKS-900S | No available part. | |||
Clamping plate for LKS-S
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LKS-900S | No available part. | |||
Strainer for LKS-S
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LKS-900S | No available part. | |||
Base for LKS-S
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| LKS-900S | No available part. | |||

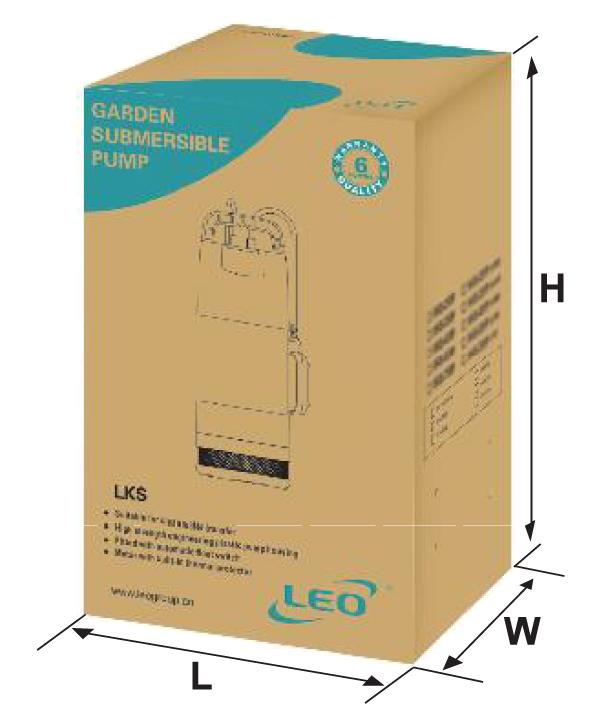

Packaging
| Models | Weight (kg) | Length L (mm) | Width W (mm) | Height H (mm) |
|---|---|---|---|---|
| LKS-900S | 11.2 | 488 | 250 | 210 |
