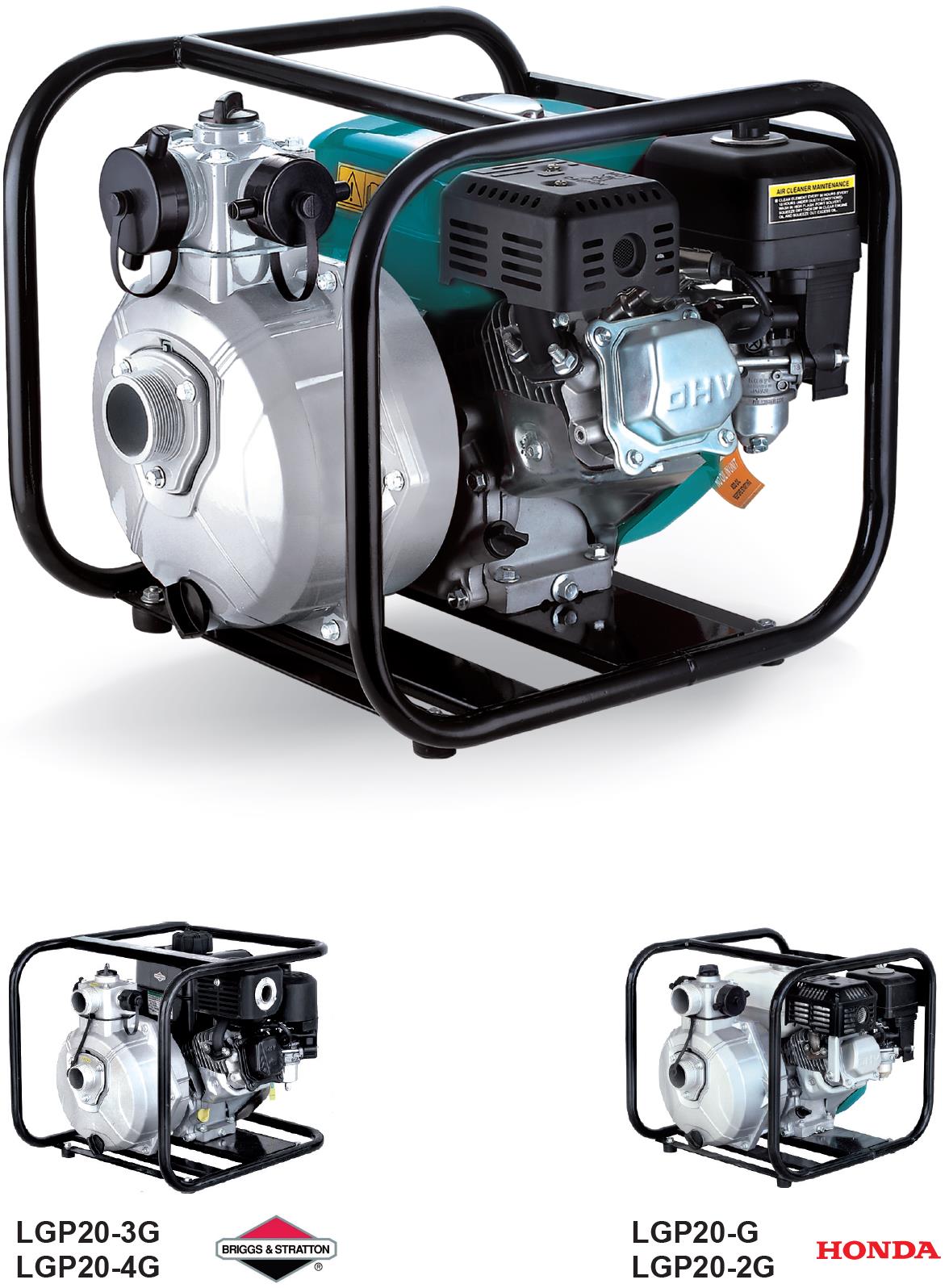

LGP-H(G-2G-3G-4G) Petrol engine pump

Application

  • Transfer of clean water at a temperature between 0 and 40 ° C
  • Usable for water supply and drainage for factories, mines, public facilities as well as for irrigation
  • Suitable for transferring water over a long distance and a great height

Pump

  • Portable and compact pump frame
  • Turbine design for high hydraulic efficiency
  • Cast iron impeller and diffuser (cataphoresis)
  • Maximum suction at 8 m, priming time at 5 m of 2 min
  • Suction: 38 or 50 mm depending on model
  • Discharge: if suction in 38 mm, 1x38 mm and 2x25mm
  • if suction in 50 mm, 1x50 mm and 2x38 mm

Motor

  • LEO engine as standard, Honda or Briggs and Stratton engine as option
  • Single cylinder, 4-stroke, air-cooled
  • Maximum power 6,5 CV
  • Rotation speed: 3600 rpm
  • Reliable motor fitted with an oil shortage cut-off system

Identification codes

L
GP
20
A (G-2G-3G-4G)
high pressure
inlet/outlet Ø (2" x10)
Heat engine pump
LEO designation

Technical data

Q (m³/h) 0 5 10 15 20 25 30
Model Code Price excl. VAT kW Q (l/min) 0 83 167 250 333 417 500
LGP20-H C1.30.240 442.00 € 4.85 H (m) 58 51 45 38.5 29 19 6
LGP20-2H C1.30.250 464.00 € 4.85 81 72.5 60 45 5

Hydraulic performance

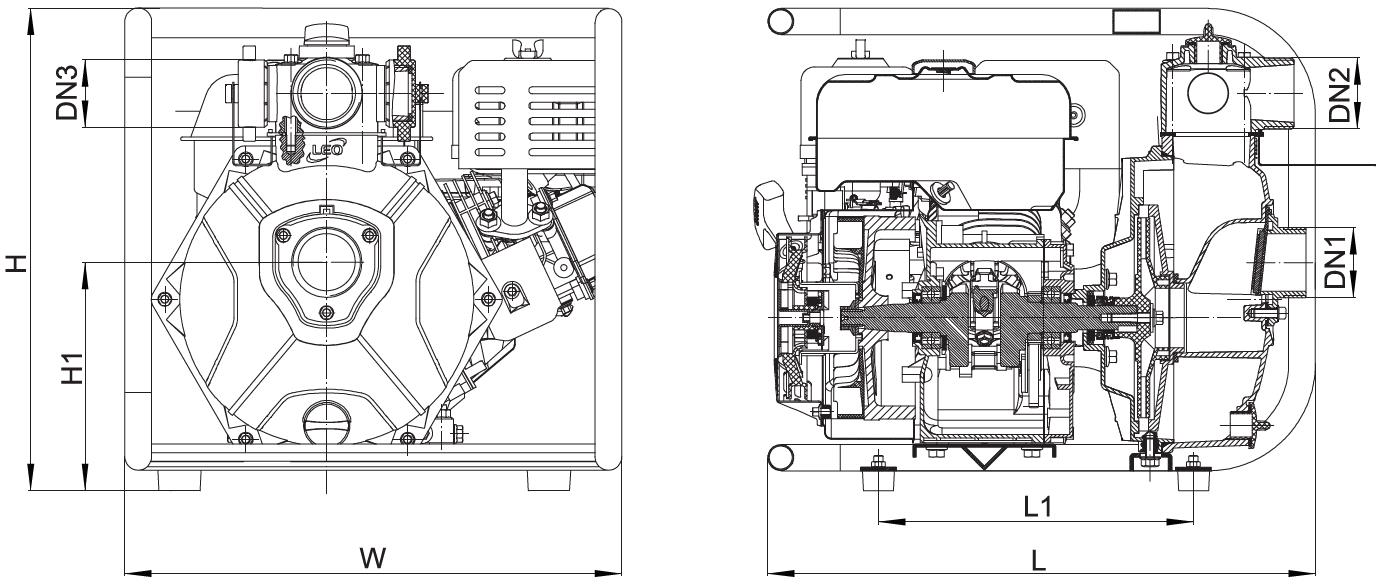

Dimensions

Models DN1 DN2 2xDN3 L W H H1
LGP20-H 2 2 1½ 463 398 406 200
LGP20-2H 2 2 1½ 463 398 406 200
DN1 (")
DN2 (")
2xDN3 (")
L (mm)
W (mm)
H (mm)
H1 (mm)

Exploded view

No. Type Materials Buy
1 Frame steel
2 Engine
3 Pump bottom aluminium
4 Mechanical seal carbon / ceramic
5 O-ring nitrile rubber (NBR)
6 Impeller aluminium
7 Wear ring nitrile rubber (NBR)
8 Diffuser cast iron HT200
9 Watertight ring nitrile rubber (NBR)
10 Plug polypropylene
11 O-ring nitrile rubber (NBR)
12 Outlet fitting aluminium
13 Seal nitrile rubber (NBR)
14 Pump body aluminium
15 Non-return valve nitrile rubber (NBR)
16 Inlet fitting aluminium
17 Drain plug PA6 resin
Frame for LGP-H(G-2G-3G-4G)
Model Part ref. Price Stock Buy
LGP20-H No available part.
LGP20-2H No available part.
Engine for LGP-H(G-2G-3G-4G)
Model Part ref. Price Stock Buy
LGP20-H No available part.
LGP20-2H No available part.
Pump bottom for LGP-H(G-2G-3G-4G)
Model Part ref. Price Stock Buy
LGP20-H No available part.
LGP20-2H No available part.
Mechanical seal for LGP-H(G-2G-3G-4G)
Model Part ref. Price Stock Buy
LGP20-H No available part.
LGP20-2H No available part.
O-ring for LGP-H(G-2G-3G-4G)
Model Part ref. Price Stock Buy
LGP20-H No available part.
LGP20-2H No available part.
Impeller for LGP-H(G-2G-3G-4G)
Model Part ref. Price Stock Buy
LGP20-H No available part.
LGP20-2H No available part.
Wear ring for LGP-H(G-2G-3G-4G)
Model Part ref. Price Stock Buy
LGP20-H No available part.
LGP20-2H No available part.
Diffuser for LGP-H(G-2G-3G-4G)
Model Part ref. Price Stock Buy
LGP20-H No available part.
LGP20-2H No available part.
Watertight ring for LGP-H(G-2G-3G-4G)
Model Part ref. Price Stock Buy
LGP20-H No available part.
LGP20-2H No available part.
Plug for LGP-H(G-2G-3G-4G)
Model Part ref. Price Stock Buy
LGP20-H No available part.
LGP20-2H No available part.
O-ring for LGP-H(G-2G-3G-4G)
Model Part ref. Price Stock Buy
LGP20-H No available part.
LGP20-2H No available part.
Outlet fitting for LGP-H(G-2G-3G-4G)
Model Part ref. Price Stock Buy
LGP20-H No available part.
LGP20-2H No available part.
Seal for LGP-H(G-2G-3G-4G)
Model Part ref. Price Stock Buy
LGP20-H No available part.
LGP20-2H No available part.
Pump body for LGP-H(G-2G-3G-4G)
Model Part ref. Price Stock Buy
LGP20-H No available part.
LGP20-2H No available part.
Non-return valve for LGP-H(G-2G-3G-4G)
Model Part ref. Price Stock Buy
LGP20-H No available part.
LGP20-2H No available part.
Inlet fitting for LGP-H(G-2G-3G-4G)
Model Part ref. Price Stock Buy
LGP20-H No available part.
LGP20-2H No available part.
Drain plug for LGP-H(G-2G-3G-4G)
Model Part ref. Price Stock Buy
LGP20-H No available part.
LGP20-2H No available part.

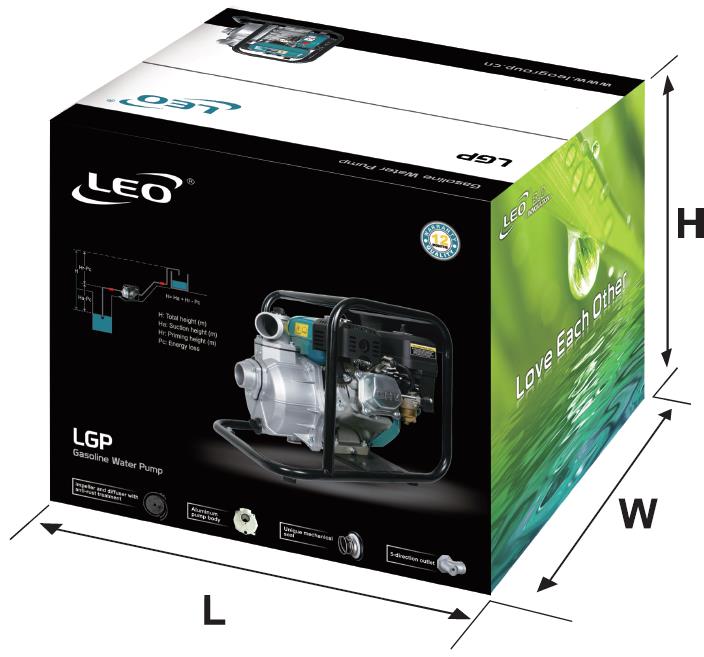

Packaging

Models Weight (kg) Length L (mm) Width W (mm) Height H (mm)
LGP20-H 23.22 470 412 432
LGP20-2H 23.24 470 412 432
Operating instructions
attachment Operating instructions (5.4 MB)
Technical file
attachment Technical file LGP-H(G-2G-3G-4G)
file_download PDF documents
