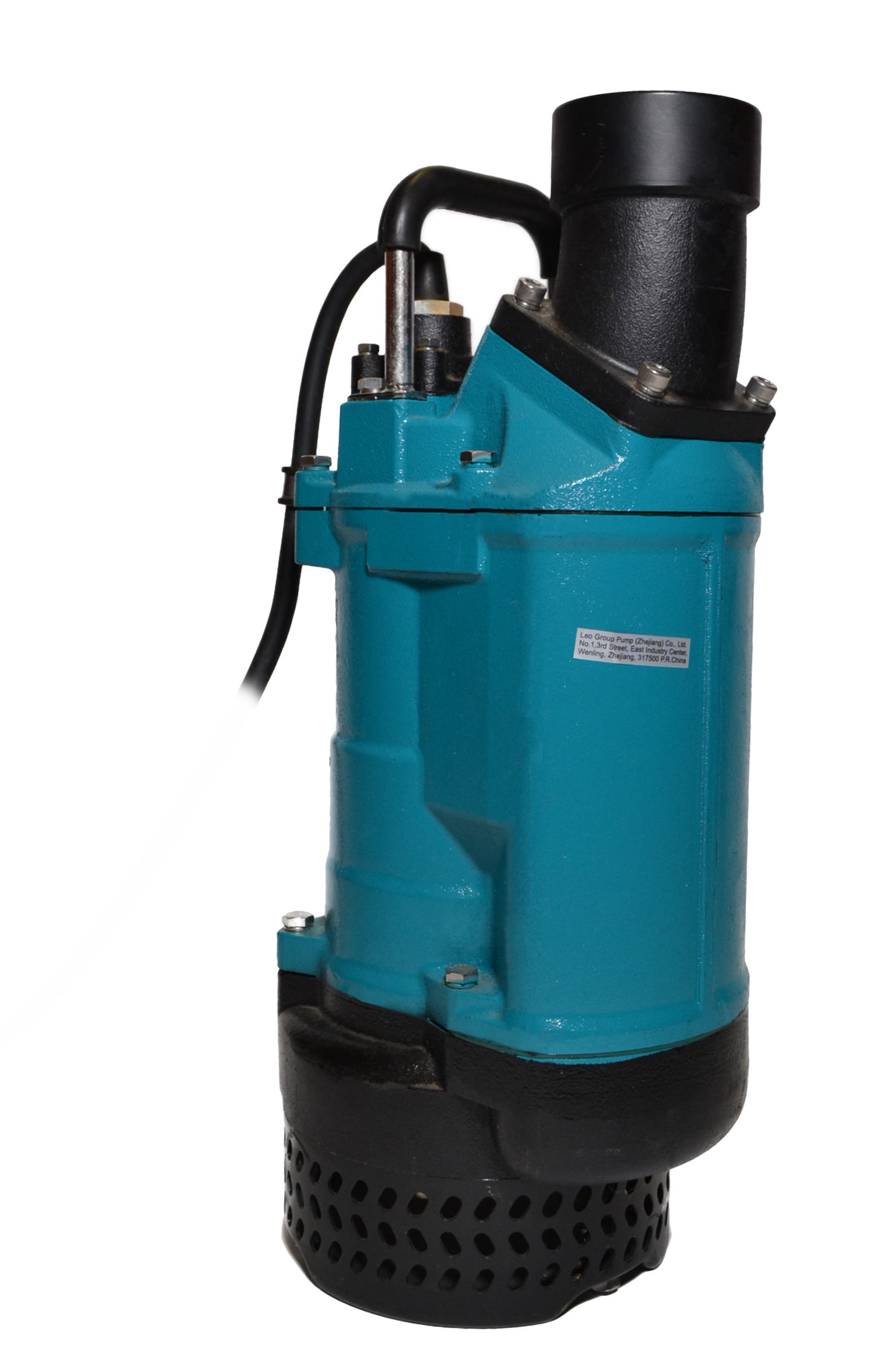

KBZ(7.5-15kW) Construction site pump
Application
- Civil engineering
- Mines, quarries, sludge
- Wastewater treatment plant
Pump
- Max flow: 156 m³/h
- HMT max: 57 m
- Maximum immersion depth: 25 m
- Maximum liquid temperature: +40°C
- Maximum particle passage diameter: 11,5 mm pour KBZ4 and 19,5 mm pour KBZ6
- Top mechanical seal in silicon carbide / silicon carbide from 3.7 kW
- Barbed outlet as standard
- Accessories of the threaded or tapped connection outlet type
- Cable length: 20 m
Motor
- Insulation class: B
- Protection class: IP68
Identification codes
KBZ
4
7.5
Power (kW)
Outlet diameter (")
Construction site pump
Technical data
| Q (m³/h) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Price excl. VAT | kW | Q (l/min) | 0 | 167 | 333 | 500 | 667 | 833 | 1000 | 1167 | 1333 | 1500 | 1667 | 1833 | 2000 | 2167 | 2333 | 2500 | 2667 |
| KBZ47.5F | A1.53.908 | 3,421.00 € | 7.5 | H (m) | 40.3 | 40 | 38.7 | 36.9 | 34.3 | 29.1 | 21.3 | 12.5 | 2.7 | ||||||||
| KBZ411F | A1.53.913 | 4,602.00 € | 11 | 46.4 | 45.9 | 44.8 | 43.2 | 40.3 | 34.3 | 22 | 7.3 | ||||||||||
| KBZ415F | A1.53.918 | 5,455.00 € | 15 | 55.3 | 54.8 | 53.6 | 51.9 | 49 | 44.7 | 34.5 | 21.3 | 6.7 | |||||||||
| KBZ67.5F | A1.53.923 | 3,696.00 € | 7.5 | 31.4 | 30.8 | 29 | 27.6 | 26 | 24.2 | 22.3 | 19.7 | 17.1 | 14.2 | 11.2 | 8 | 4.7 | |||||
| KBZ611F | A1.53.928 | 4,722.00 € | 11 | 31.8 | 31.4 | 31 | 30.3 | 29.6 | 28.7 | 27.7 | 26.3 | 24.7 | 22.7 | 20.2 | 17.4 | 14.2 | 10.9 | 7.5 | 3.9 | ||
| KBZ615F | A1.53.932 | 5,474.00 € | 15 | 37.7 | 37.5 | 37.2 | 36.7 | 36 | 34.9 | 33.9 | 32.5 | 30.6 | 28.3 | 25.4 | 22.3 | 18.9 | 15.5 | 11.7 | 7.9 | 3.9 |
Hydraulic performance
Exploded view
| No. | Type | Materials | Buy |
|---|---|---|---|
| 1 | Outlet fitting | cast iron HT200 | |
| 2 | Thermal protection | ||
| 3 | Top cover | cast iron HT200 | |
| 4 | Jacket | cast iron HT200 | |
| 5 | Seal | ||
| 6 | Mechanical seal | sil carb / sil carb, carbon / sil carb (<3kW) | |
| 7 | Strainer | steel | |
| 8 | Handle | steel | |
| 9 | Power cable | ||
| 10 | Bearing | ||
| 11 | Rotor | ||
| 12 | Stator | ||
| 13 | Bearing | ||
| 14 | Impeller | chrome alloy | |
| 15 | Pump body | cast iron HT200 | |
| 16 | Inlet fitting | ductile cast iron |
