EVP6H vertical multicellular pump in cast iron
Application
- Water supply for tall buildings, pumping stations, overpressure
- Washing stations, heating water circulation, air conditioning water circulation, water treatment systems
- Irrigation: sprinkling, drip
- Fire fighting systems
Pump
- Use for a wide range of temperatures, flow rates and HMT
- Inlet and outlet can be on the same side or opposite, depending on the needs of the installation
- Simplified installation and maintenance
- Inlet and outlet in cast iron, anti-corrosion treatment (cataphoresis)
Motor
- Liquid temperature: from +5°C to +60°C
- Max ambient temperature: +40°C
- maximum pressure: 15 bars
Identification codes
EVP
m
6
H
-6
number of turbines
high pressure
Nominal flow (m³/h)
Single phase
Vertical multicellular pump
Technical data
| Q (m³/h) | 0 | 1 | 2 | 3 | 4.5 | 6 | 7.5 | 9 | 10.5 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Price excl. VAT | kW | Q (l/min) | 0 | 17 | 33 | 50 | 75 | 100 | 125 | 150 | 175 |
| EVPm6H-3 | A1.17.715 | 431.00 € | 1.1 | H (m) | 39 | 38 | 37 | 35 | 33 | 29 | 24 | 18 | 10 |
| EVP6H-3 | A1.17.745 | 422.00 € | 1.1 | 39 | 38 | 37 | 35 | 33 | 29 | 24 | 18 | 10 | |
| EVPm6H-4 | A1.17.716 | 456.00 € | 1.5 | 52 | 51 | 49 | 47 | 44 | 39 | 32 | 25 | 14 | |
| EVP6H-4 | A1.17.746 | 456.00 € | 1.5 | 52 | 51 | 49 | 47 | 44 | 39 | 32 | 25 | 14 | |
| EVPm6H-5 | A1.17.717 | 520.00 € | 1.8 | 65 | 62 | 60 | 58 | 54 | 47 | 38 | 28 | 16 | |
| EVP6H-6 | A1.17.748 | 520.00 € | 2.2 | 76 | 74 | 71 | 68 | 63 | 56 | 45 | 34 | 20 | |
| EVP6H-8 | A1.17.749 | 716.00 € | 3 | 103 | 100 | 97 | 95 | 90 | 80 | 66 | 50 | 31 |
Hydraulic performance

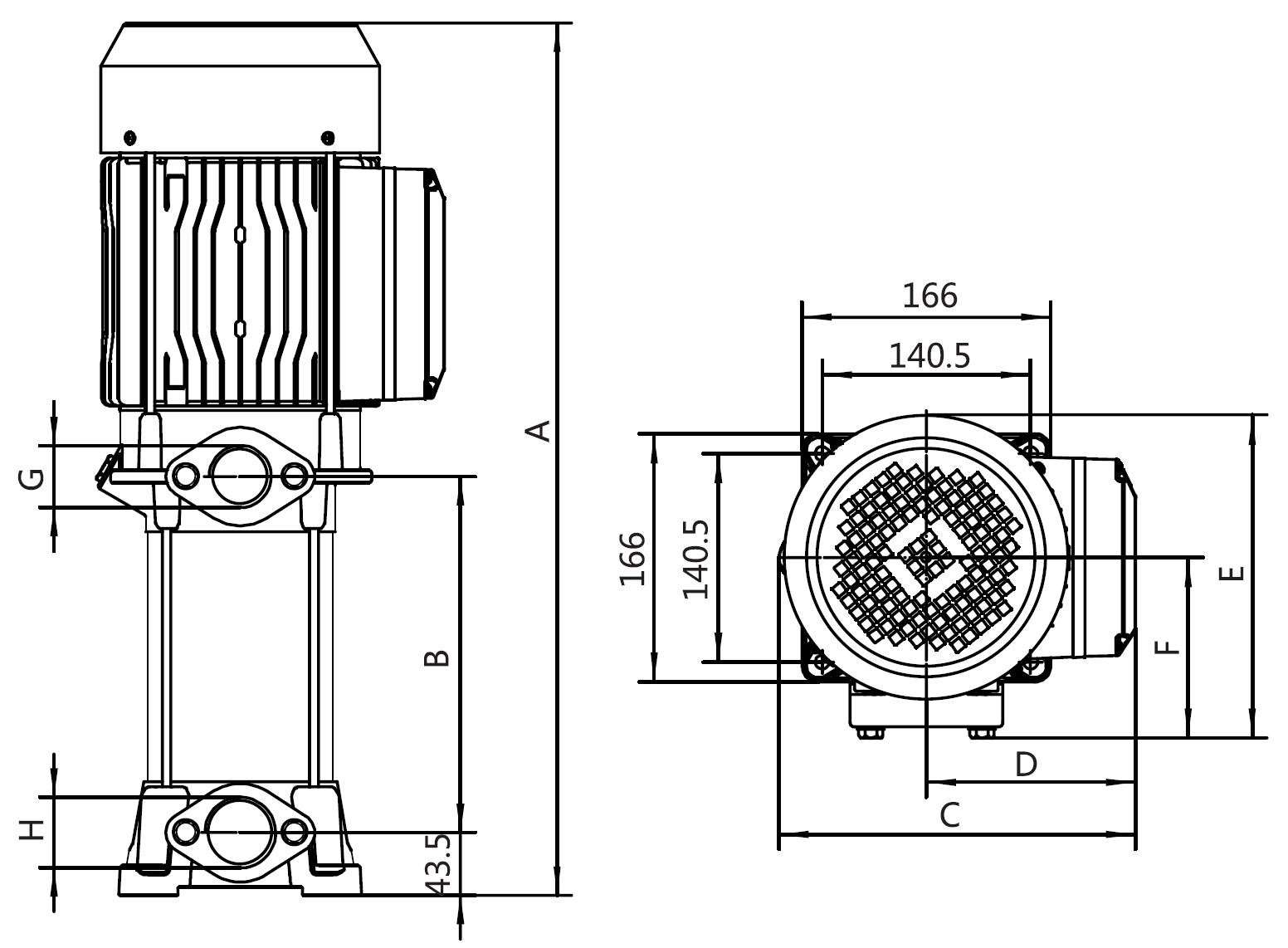

Dimensions
| Models | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| EVPm6H-3 | 457 | 158.5 | 210 | 125 | 202 | 114.5 | 1¼ | 1½ |
| EVP6H-3 | 457 | 158.5 | 210 | 125 | 202 | 114.5 | 1¼ | 1½ |
| EVPm6H-4 | 483.5 | 185 | 210 | 125 | 202 | 114.5 | 1¼ | 1½ |
| EVP6H-4 | 483.5 | 185 | 210 | 125 | 202 | 114.5 | 1¼ | 1½ |
| EVPm6H-5 | 510 | 211.5 | 210 | 125 | 202 | 114.5 | 1¼ | 1½ |
| EVP6H-6 | 536.5 | 238 | 210 | 125 | 202 | 114.5 | 1¼ | 1½ |
| EVP6H-8 | 655 | 297.5 | 240 | 141 | 218 | 121.5 | 1¼ | 1½ |
Exploded view
| No. | Type | Materials | Buy |
|---|---|---|---|
| 1 | Fan cover | 08F steel | |
| 2 | Fan | polypropylene | |
| 3 | Rear cover | cast iron HT200 | |
| 4 | Bearing | ||
| 5 | Stator | ||
| 6 | Rotor | ||
| 7 | Seal | nitrile rubber (NBR) | |
| 8 | Flange | cast iron HT200 | |
| 9 | Upper water box | aluminium | |
| 10 | Mechanical seal | carbon / ceramic | |
| 11 | Jacket | AISI 304 stainless steel | |
| 12 | Impeller | noryl (PPO) | |
| 13 | Diffuser | noryl (PPO) | |
| 14 | Diffuser | noryl (PPO) | |
| 15 | Electric box cover | PA6 resin |
Fan cover for EVP6H
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm6H-3 | No available part. | |||
| EVP6H-3 | No available part. | |||
| EVPm6H-4 | No available part. | |||
| EVP6H-4 | No available part. | |||
| EVPm6H-5 | No available part. | |||
| EVP6H-6 | No available part. | |||
| EVP6H-8 | No available part. | |||
Fan for EVP6H
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm6H-3 | No available part. | |||
| EVP6H-3 | No available part. | |||
| EVPm6H-4 | No available part. | |||
| EVP6H-4 | No available part. | |||
| EVPm6H-5 | No available part. | |||
| EVP6H-6 | No available part. | |||
| EVP6H-8 | No available part. | |||
Rear cover for EVP6H
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm6H-3 | No available part. | |||
| EVP6H-3 | No available part. | |||
| EVPm6H-4 | No available part. | |||
| EVP6H-4 | No available part. | |||
| EVPm6H-5 | No available part. | |||
| EVP6H-6 | No available part. | |||
| EVP6H-8 | No available part. | |||
Bearing for EVP6H
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm6H-3 | 10001186 | -- | -- | -- |
| EVP6H-3 | 10001186 | -- | -- | -- |
| EVPm6H-4 | 10001186 | -- | -- | -- |
| EVP6H-4 | 10001186 | -- | -- | -- |
| EVPm6H-5 | 10001186 | -- | -- | -- |
| EVP6H-6 | No available part. | |||
| EVP6H-8 | No available part. | |||
Stator for EVP6H
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm6H-3 | No available part. | |||
| EVP6H-3 | No available part. | |||
| EVPm6H-4 | No available part. | |||
| EVP6H-4 | No available part. | |||
| EVPm6H-5 | No available part. | |||
| EVP6H-6 | No available part. | |||
| EVP6H-8 | No available part. | |||
Rotor for EVP6H
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm6H-3 | No available part. | |||
| EVP6H-3 | No available part. | |||
| EVPm6H-4 | No available part. | |||
| EVP6H-4 | No available part. | |||
| EVPm6H-5 | No available part. | |||
| EVP6H-6 | No available part. | |||
| EVP6H-8 | No available part. | |||
Seal for EVP6H
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm6H-3 | No available part. | |||
| EVP6H-3 | No available part. | |||
| EVPm6H-4 | No available part. | |||
| EVP6H-4 | No available part. | |||
| EVPm6H-5 | No available part. | |||
| EVP6H-6 | No available part. | |||
| EVP6H-8 | No available part. | |||
Flange for EVP6H
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm6H-3 | No available part. | |||
| EVP6H-3 | No available part. | |||
| EVPm6H-4 | No available part. | |||
| EVP6H-4 | No available part. | |||
| EVPm6H-5 | No available part. | |||
| EVP6H-6 | No available part. | |||
| EVP6H-8 | No available part. | |||
Upper water box for EVP6H
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm6H-3 | No available part. | |||
| EVP6H-3 | No available part. | |||
| EVPm6H-4 | No available part. | |||
| EVP6H-4 | No available part. | |||
| EVPm6H-5 | No available part. | |||
| EVP6H-6 | No available part. | |||
| EVP6H-8 | No available part. | |||
Mechanical seal for EVP6H
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm6H-3 | 10014282 | -- | -- | -- |
| EVP6H-3 | No available part. | |||
| EVPm6H-4 | 10014282 | -- | -- | -- |
| EVP6H-4 | No available part. | |||
| EVPm6H-5 | 10014282 | -- | -- | -- |
| EVP6H-6 | No available part. | |||
| EVP6H-8 | No available part. | |||
Jacket for EVP6H
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm6H-3 | No available part. | |||
| EVP6H-3 | No available part. | |||
| EVPm6H-4 | No available part. | |||
| EVP6H-4 | No available part. | |||
| EVPm6H-5 | No available part. | |||
| EVP6H-6 | No available part. | |||
| EVP6H-8 | No available part. | |||
Impeller for EVP6H
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm6H-3 | No available part. | |||
| EVP6H-3 | No available part. | |||
| EVPm6H-4 | No available part. | |||
| EVP6H-4 | No available part. | |||
| EVPm6H-5 | No available part. | |||
| EVP6H-6 | No available part. | |||
| EVP6H-8 | No available part. | |||
Diffuser for EVP6H
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm6H-3 | No available part. | |||
| EVP6H-3 | No available part. | |||
| EVPm6H-4 | No available part. | |||
| EVP6H-4 | No available part. | |||
| EVPm6H-5 | No available part. | |||
| EVP6H-6 | No available part. | |||
| EVP6H-8 | No available part. | |||
Diffuser for EVP6H
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm6H-3 | No available part. | |||
| EVP6H-3 | No available part. | |||
| EVPm6H-4 | No available part. | |||
| EVP6H-4 | No available part. | |||
| EVPm6H-5 | No available part. | |||
| EVP6H-6 | No available part. | |||
| EVP6H-8 | No available part. | |||
Electric box cover for EVP6H
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm6H-3 | No available part. | |||
| EVP6H-3 | No available part. | |||
| EVPm6H-4 | No available part. | |||
| EVP6H-4 | No available part. | |||
| EVPm6H-5 | No available part. | |||
| EVP6H-6 | No available part. | |||
| EVP6H-8 | No available part. | |||
