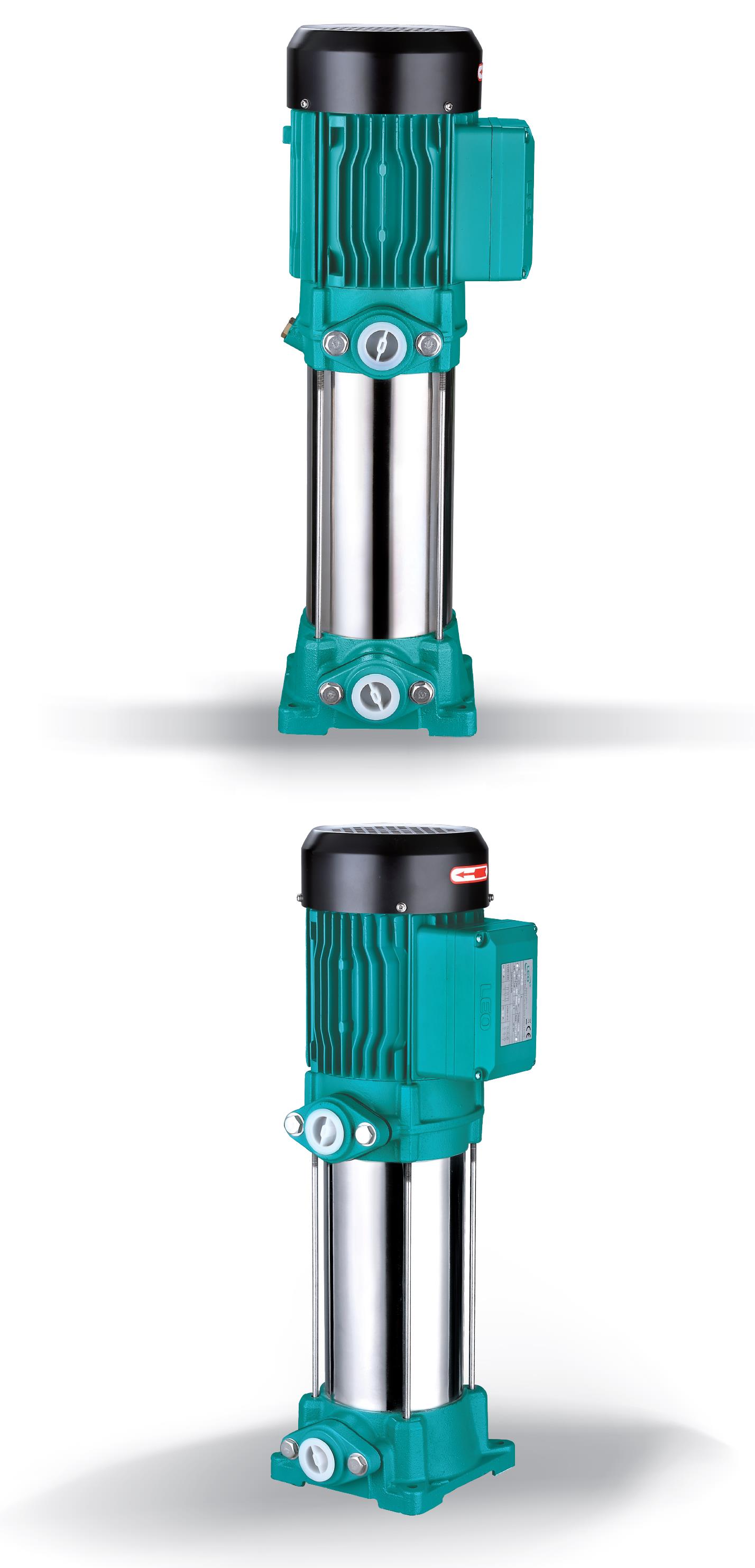

EVP6 vertical multicellular pump in cast iron

Application

  • Water supply for tall buildings, pumping stations, overpressure
  • Washing stations, heating water circulation, air conditioning water circulation, water treatment systems
  • Irrigation: sprinkling, drip
  • Fire fighting systems

Pump

  • Use for a wide range of temperatures, flow rates and HMT
  • Inlet and outlet can be on the same side or opposite, depending on the needs of the installation
  • Simplified installation and maintenance
  • Inlet and outlet in cast iron, anti-corrosion treatment (cataphoresis)

Motor

  • Liquid temperature: from +5°C to +60°C
  • Max ambient temperature: +40°C
  • maximum pressure: 15 bars

Identification codes

EVP
m
6
-6
number of turbines
Nominal flow (m³/h)
Single phase
Vertical multicellular pump

Technical data

Q (m³/h) 0 1 2 3 4 5 6 7 8 9 10
Model Code Price excl. VAT kW Q (l/min) 0 17 33 50 67 83 100 117 133 150 167
EVPm6-3 A1.17.713 420.00 € 1.1 H (m) 30 29.5 29 28.5 28 27 26 24.5 23 21 19
EVP6-3 A1.17.733 405.00 € 1.1 30 29.5 29 28.5 28 27 26 24.5 23 21 19
EVPm6-4 A1.17.714 458.00 € 1.5 40 38.5 37.5 37.3 37 36 34 33.5 32 30 27
EVP6-4 A1.17.734 453.00 € 1.5 40 38.5 37.5 37.3 37 36 34 33.5 32 30 27
EVP6-5 A1.17.735 489.00 € 2.2 50 49 48.5 48.3 48 45 43 42 41 39 36
EVP6-6 A1.17.736 498.00 € 2.2 58 56 54 53.5 53 52 51 48 45 41 40
EVP6-7 A1.17.737 652.00 € 3 68 67 66.5 65 63.5 62 60 58 56 54 51
EVP6-8 A1.17.738 667.00 € 3 78 75 73 72 71 70 68 65 62 59 55

Hydraulic performance

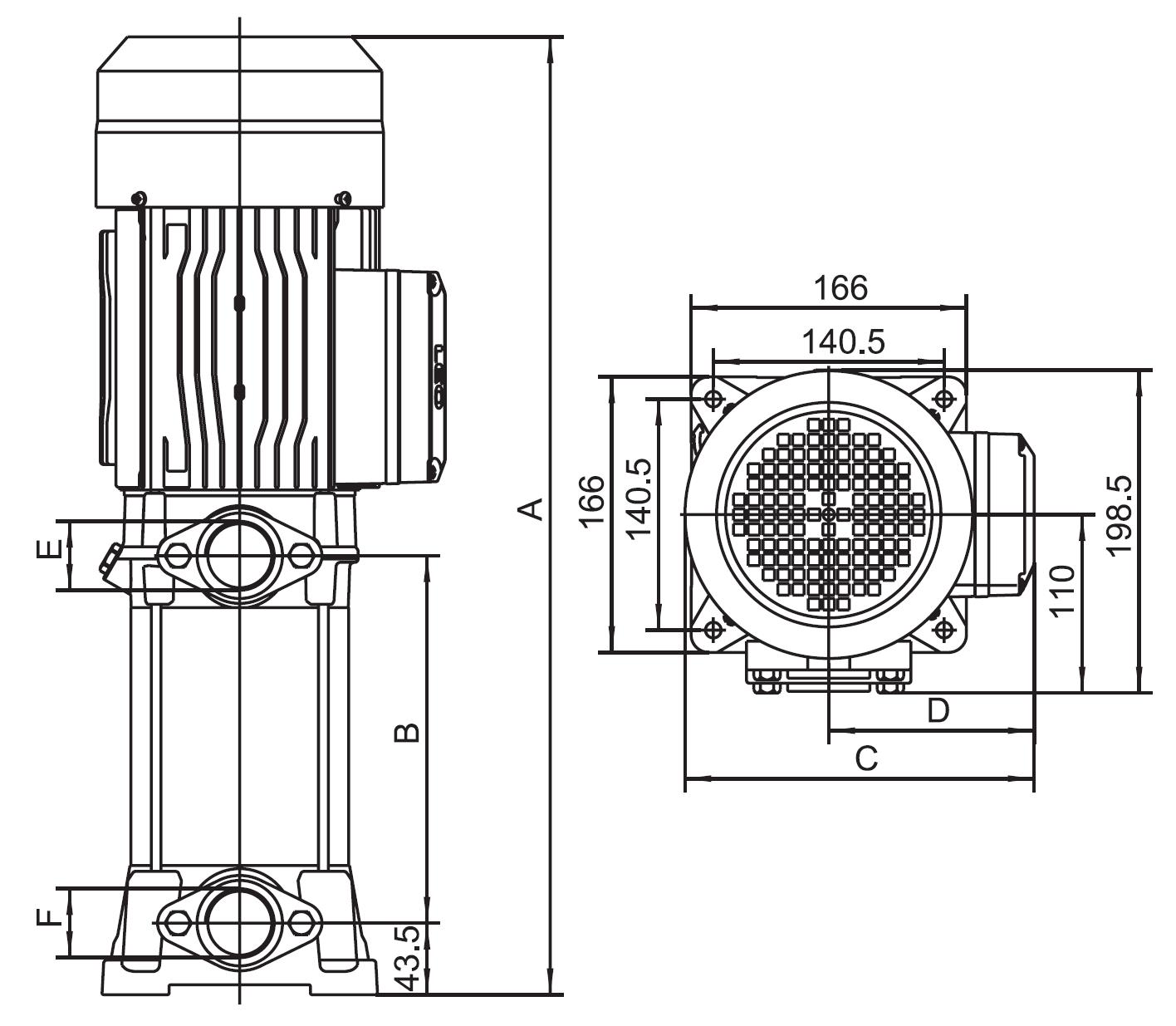

Dimensions

Models A B C D E F
EVPm6-3 487 190 210 125 1¼ 1¼
EVP6-3 487 190 210 125 1¼ 1¼
EVPm6-4 524 227 210 125 1¼ 1¼
EVP6-4 524 227 210 125 1¼ 1¼
EVP6-5 561 264 210 125 1¼ 1¼
EVP6-6 598 301 210 125 1¼ 1¼
EVP6-7 685 338 221 134 1¼ 1¼
EVP6-8 722 375 221 134 1¼ 1¼
A (mm)
B (mm)
C (mm)
D (mm)
E (")
F (")

Exploded view

No. Type Materials Buy
1 Fan cover 08F steel
2 Fan polypropylene
3 Rear cover cast iron HT200
4 Bearing
5 Stator
6 Rotor
7 Seal nitrile rubber (NBR)
8 Flange cast iron HT200
9 Upper water box aluminium
10 Mechanical seal carbon / ceramic
11 Jacket AISI 304 stainless steel
12 Impeller noryl (PPO)
13 Diffuser noryl (PPO)
14 Diffuser noryl (PPO)
15 Electric box cover PA6 resin
Fan cover for EVP6
Model Part ref. Price Stock Buy
EVPm6-3 No available part.
EVP6-3 No available part.
EVPm6-4 No available part.
EVP6-4 No available part.
EVP6-5 No available part.
EVP6-6 No available part.
EVP6-7 No available part.
EVP6-8 No available part.
Fan for EVP6
Model Part ref. Price Stock Buy
EVPm6-3 No available part.
EVP6-3 No available part.
EVPm6-4 No available part.
EVP6-4 No available part.
EVP6-5 No available part.
EVP6-6 No available part.
EVP6-7 No available part.
EVP6-8 No available part.
Rear cover for EVP6
Model Part ref. Price Stock Buy
EVPm6-3 No available part.
EVP6-3 No available part.
EVPm6-4 No available part.
EVP6-4 No available part.
EVP6-5 No available part.
EVP6-6 No available part.
EVP6-7 No available part.
EVP6-8 No available part.
Bearing for EVP6
Model Part ref. Price Stock Buy
EVPm6-3 10001186 -- -- --
EVP6-3 10001186 -- -- --
EVPm6-4 10001186 -- -- --
EVP6-4 10001186 -- -- --
EVP6-5 No available part.
EVP6-6 No available part.
EVP6-7 No available part.
EVP6-8 No available part.
Stator for EVP6
Model Part ref. Price Stock Buy
EVPm6-3 No available part.
EVP6-3 No available part.
EVPm6-4 No available part.
EVP6-4 No available part.
EVP6-5 No available part.
EVP6-6 No available part.
EVP6-7 No available part.
EVP6-8 No available part.
Rotor for EVP6
Model Part ref. Price Stock Buy
EVPm6-3 No available part.
EVP6-3 No available part.
EVPm6-4 No available part.
EVP6-4 No available part.
EVP6-5 No available part.
EVP6-6 No available part.
EVP6-7 No available part.
EVP6-8 No available part.
Seal for EVP6
Model Part ref. Price Stock Buy
EVPm6-3 No available part.
EVP6-3 No available part.
EVPm6-4 No available part.
EVP6-4 No available part.
EVP6-5 No available part.
EVP6-6 No available part.
EVP6-7 No available part.
EVP6-8 No available part.
Flange for EVP6
Model Part ref. Price Stock Buy
EVPm6-3 No available part.
EVP6-3 No available part.
EVPm6-4 No available part.
EVP6-4 No available part.
EVP6-5 No available part.
EVP6-6 No available part.
EVP6-7 No available part.
EVP6-8 No available part.
Upper water box for EVP6
Model Part ref. Price Stock Buy
EVPm6-3 No available part.
EVP6-3 No available part.
EVPm6-4 No available part.
EVP6-4 No available part.
EVP6-5 No available part.
EVP6-6 No available part.
EVP6-7 No available part.
EVP6-8 No available part.
Mechanical seal for EVP6
Model Part ref. Price Stock Buy
EVPm6-3 10014282 -- -- --
EVP6-3 No available part.
EVPm6-4 10014282 -- -- --
EVP6-4 No available part.
EVP6-5 No available part.
EVP6-6 No available part.
EVP6-7 No available part.
EVP6-8 No available part.
Jacket for EVP6
Model Part ref. Price Stock Buy
EVPm6-3 No available part.
EVP6-3 No available part.
EVPm6-4 No available part.
EVP6-4 No available part.
EVP6-5 No available part.
EVP6-6 No available part.
EVP6-7 No available part.
EVP6-8 No available part.
Impeller for EVP6
Model Part ref. Price Stock Buy
EVPm6-3 No available part.
EVP6-3 No available part.
EVPm6-4 No available part.
EVP6-4 No available part.
EVP6-5 No available part.
EVP6-6 No available part.
EVP6-7 No available part.
EVP6-8 No available part.
Diffuser for EVP6
Model Part ref. Price Stock Buy
EVPm6-3 No available part.
EVP6-3 No available part.
EVPm6-4 No available part.
EVP6-4 No available part.
EVP6-5 No available part.
EVP6-6 No available part.
EVP6-7 No available part.
EVP6-8 No available part.
Diffuser for EVP6
Model Part ref. Price Stock Buy
EVPm6-3 No available part.
EVP6-3 No available part.
EVPm6-4 No available part.
EVP6-4 No available part.
EVP6-5 No available part.
EVP6-6 No available part.
EVP6-7 No available part.
EVP6-8 No available part.
Electric box cover for EVP6
Model Part ref. Price Stock Buy
EVPm6-3 No available part.
EVP6-3 No available part.
EVPm6-4 No available part.
EVP6-4 No available part.
EVP6-5 No available part.
EVP6-6 No available part.
EVP6-7 No available part.
EVP6-8 No available part.

Packaging

Models Weight (kg) Length L (mm) Width W (mm) Height H (mm)
EVPm6-3 21.2 565 248 255
EVP6-3 21.8 565 248 255
EVPm6-4 22.9 600 248 255
EVP6-4 23.3 600 248 255
EVP6-5 24.9 635 248 255
EVP6-6 25.8 670 248 255
EVP6-7 35.8 750 290 315
EVP6-8 38.2 785 290 315
Technical file
attachment Technical file EVP6
