EVP4 vertical multicellular pump in cast iron
Application
- Water supply for tall buildings, pumping stations, overpressure
- Washing stations, heating water circulation, air conditioning water circulation, water treatment systems
- Irrigation: sprinkling, drip
- Fire fighting systems
Pump
- Use for a wide range of temperatures, flow rates and HMT
- Inlet and outlet can be on the same side or opposite, depending on the needs of the installation
- Simplified installation and maintenance
- Inlet and outlet in cast iron, anti-corrosion treatment (cataphoresis)
Motor
- Liquid temperature: from +5°C to +60°C
- Max ambient temperature: +40°C
- maximum pressure: 15 bars
Identification codes
EVP
m
4
-6
number of turbines
Nominal flow (m³/h)
Single phase
Vertical multicellular pump
Technical data
| Q (m³/h) | 0 | 1 | 2 | 3 | 4 | 5 | 6 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Price excl. VAT | kW | Q (l/min) | 0 | 17 | 33 | 50 | 67 | 83 | 100 |
| EVPm4-2 | A1.17.708 | 319.00 € | 0.55 | H (m) | 24 | 23 | 22 | 21 | 18 | 15 | 10 |
| EVP4-2 | A1.17.726 | 321.00 € | 0.55 | 24 | 23 | 22 | 21 | 18 | 15 | 10 | |
| EVPm4-3 | A1.17.709 | 338.00 € | 0.75 | 37 | 36 | 34 | 33 | 29 | 24 | 16 | |
| EVP4-3 | A1.17.727 | 337.00 € | 0.75 | 37 | 36 | 34 | 33 | 29 | 24 | 16 | |
| EVPm4-4 | A1.17.710 | 359.00 € | 1 | 47 | 46 | 45 | 41 | 36 | 28 | 20 | |
| EVP4-4 | A1.17.728 | 362.00 € | 1 | 47 | 46 | 45 | 41 | 36 | 28 | 20 | |
| EVP4-5 | A1.17.729 | 431.00 € | 1.5 | 61 | 58 | 57 | 55 | 48 | 39 | 29 | |
| EVPm4-6 | A1.17.712 | 445.00 € | 1.5 | 74 | 72 | 69 | 66 | 57 | 47 | 36 | |
| EVP4-6 | A1.17.730 | 440.00 € | 1.5 | 74 | 72 | 69 | 66 | 57 | 47 | 36 | |
| EVP4-7 | A1.17.731 | 478.00 € | 2.2 | 86 | 83 | 81 | 77 | 68 | 57 | 43 | |
| EVP4-8 | A1.17.732 | 487.00 € | 2.2 | 98 | 95 | 92 | 86 | 76 | 63 | 47 | |
| EVP4-10 | A1.17.754 | 557.00 € | 2.2 | 116 | 114 | 110 | 102 | 90 | 73 | 57 | |
| EVP4-12 | A1.17.755 | 799.00 € | 3 | 145 | 142 | 140 | 131 | 115 | 97 | 75 |
Hydraulic performance

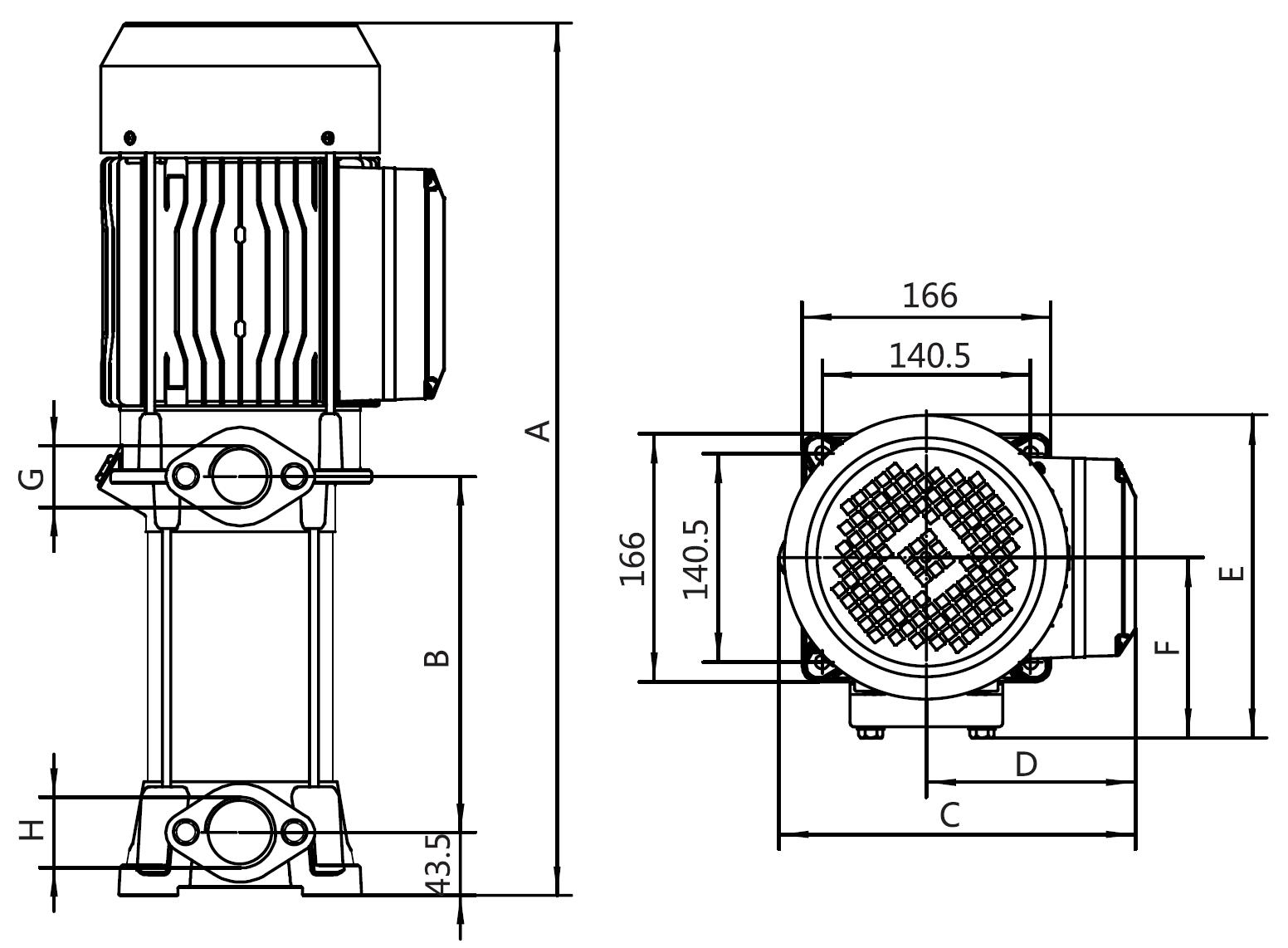

Dimensions
| Models | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| EVPm4-2 | 382 | 122 | 193 | 110 | 202 | 114.5 | 1 | 1 |
| EVP4-2 | 382 | 122 | 193 | 110 | 202 | 114.5 | 1 | 1 |
| EVPm4-3 | 406 | 146 | 193 | 110 | 202 | 114.5 | 1 | 1 |
| EVP4-3 | 406 | 146 | 193 | 110 | 202 | 114.5 | 1 | 1 |
| EVPm4-4 | 430 | 170 | 193 | 110 | 202 | 114.5 | 1 | 1 |
| EVP4-4 | 430 | 170 | 193 | 110 | 202 | 114.5 | 1 | 1 |
| EVP4-5 | 497 | 200.5 | 210 | 125 | 202 | 114.5 | 1 | 1 |
| EVPm4-6 | 521 | 224.5 | 210 | 125 | 202 | 114.5 | 1 | 1 |
| EVP4-6 | 521 | 224.5 | 210 | 125 | 202 | 114.5 | 1 | 1 |
| EVP4-7 | 545 | 248.5 | 210 | 125 | 202 | 114.5 | 1 | 1 |
| EVP4-8 | 569 | 272.5 | 210 | 125 | 202 | 114.5 | 1 | 1 |
| EVP4-10 | ||||||||
| EVP4-12 |
Exploded view
| No. | Type | Materials | Buy |
|---|---|---|---|
| 1 | Fan cover | 08F steel | |
| 2 | Fan | polypropylene | |
| 3 | Rear cover | cast iron HT200 | |
| 4 | Bearing | ||
| 5 | Stator | ||
| 6 | Rotor | ||
| 7 | Seal | nitrile rubber (NBR) | |
| 8 | Flange | cast iron HT200 | |
| 9 | Upper water box | aluminium | |
| 10 | Mechanical seal | carbon / ceramic | |
| 11 | Jacket | AISI 304 stainless steel | |
| 12 | Impeller | noryl (PPO) | |
| 13 | Diffuser | noryl (PPO) | |
| 14 | Diffuser | noryl (PPO) | |
| 15 | Electric box cover | PA6 resin |
Fan cover for EVP4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm4-2 | No available part. | |||
| EVP4-2 | No available part. | |||
| EVPm4-3 | No available part. | |||
| EVP4-3 | No available part. | |||
| EVPm4-4 | No available part. | |||
| EVP4-4 | No available part. | |||
| EVP4-5 | No available part. | |||
| EVPm4-6 | No available part. | |||
| EVP4-6 | No available part. | |||
| EVP4-7 | No available part. | |||
| EVP4-8 | No available part. | |||
| EVP4-10 | No available part. | |||
| EVP4-12 | No available part. | |||
Fan for EVP4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm4-2 | No available part. | |||
| EVP4-2 | No available part. | |||
| EVPm4-3 | No available part. | |||
| EVP4-3 | No available part. | |||
| EVPm4-4 | No available part. | |||
| EVP4-4 | No available part. | |||
| EVP4-5 | No available part. | |||
| EVPm4-6 | No available part. | |||
| EVP4-6 | No available part. | |||
| EVP4-7 | No available part. | |||
| EVP4-8 | No available part. | |||
| EVP4-10 | No available part. | |||
| EVP4-12 | No available part. | |||
Rear cover for EVP4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm4-2 | No available part. | |||
| EVP4-2 | No available part. | |||
| EVPm4-3 | No available part. | |||
| EVP4-3 | No available part. | |||
| EVPm4-4 | No available part. | |||
| EVP4-4 | No available part. | |||
| EVP4-5 | No available part. | |||
| EVPm4-6 | No available part. | |||
| EVP4-6 | No available part. | |||
| EVP4-7 | No available part. | |||
| EVP4-8 | No available part. | |||
| EVP4-10 | No available part. | |||
| EVP4-12 | No available part. | |||
Bearing for EVP4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm4-2 | 10001169 | -- | -- | -- |
| EVP4-2 | 10001169 | -- | -- | -- |
| EVPm4-3 | 10001169 | -- | -- | -- |
| EVP4-3 | 10001169 | -- | -- | -- |
| EVPm4-4 | 10001169 | -- | -- | -- |
| EVP4-4 | 10001169 | -- | -- | -- |
| EVP4-5 | No available part. | |||
| EVPm4-6 | No available part. | |||
| EVP4-6 | No available part. | |||
| EVP4-7 | No available part. | |||
| EVP4-8 | No available part. | |||
| EVP4-10 | No available part. | |||
| EVP4-12 | No available part. | |||
Stator for EVP4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm4-2 | No available part. | |||
| EVP4-2 | No available part. | |||
| EVPm4-3 | No available part. | |||
| EVP4-3 | No available part. | |||
| EVPm4-4 | No available part. | |||
| EVP4-4 | No available part. | |||
| EVP4-5 | No available part. | |||
| EVPm4-6 | No available part. | |||
| EVP4-6 | No available part. | |||
| EVP4-7 | No available part. | |||
| EVP4-8 | No available part. | |||
| EVP4-10 | No available part. | |||
| EVP4-12 | No available part. | |||
Rotor for EVP4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm4-2 | No available part. | |||
| EVP4-2 | No available part. | |||
| EVPm4-3 | No available part. | |||
| EVP4-3 | No available part. | |||
| EVPm4-4 | No available part. | |||
| EVP4-4 | No available part. | |||
| EVP4-5 | No available part. | |||
| EVPm4-6 | No available part. | |||
| EVP4-6 | No available part. | |||
| EVP4-7 | No available part. | |||
| EVP4-8 | No available part. | |||
| EVP4-10 | No available part. | |||
| EVP4-12 | No available part. | |||
Seal for EVP4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm4-2 | No available part. | |||
| EVP4-2 | No available part. | |||
| EVPm4-3 | No available part. | |||
| EVP4-3 | No available part. | |||
| EVPm4-4 | No available part. | |||
| EVP4-4 | No available part. | |||
| EVP4-5 | No available part. | |||
| EVPm4-6 | No available part. | |||
| EVP4-6 | No available part. | |||
| EVP4-7 | No available part. | |||
| EVP4-8 | No available part. | |||
| EVP4-10 | No available part. | |||
| EVP4-12 | No available part. | |||
Flange for EVP4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm4-2 | No available part. | |||
| EVP4-2 | No available part. | |||
| EVPm4-3 | No available part. | |||
| EVP4-3 | No available part. | |||
| EVPm4-4 | No available part. | |||
| EVP4-4 | No available part. | |||
| EVP4-5 | No available part. | |||
| EVPm4-6 | No available part. | |||
| EVP4-6 | No available part. | |||
| EVP4-7 | No available part. | |||
| EVP4-8 | No available part. | |||
| EVP4-10 | No available part. | |||
| EVP4-12 | No available part. | |||
Upper water box for EVP4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm4-2 | No available part. | |||
| EVP4-2 | No available part. | |||
| EVPm4-3 | No available part. | |||
| EVP4-3 | No available part. | |||
| EVPm4-4 | No available part. | |||
| EVP4-4 | No available part. | |||
| EVP4-5 | No available part. | |||
| EVPm4-6 | No available part. | |||
| EVP4-6 | No available part. | |||
| EVP4-7 | No available part. | |||
| EVP4-8 | No available part. | |||
| EVP4-10 | No available part. | |||
| EVP4-12 | No available part. | |||
Mechanical seal for EVP4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm4-2 | 10014283 | -- | -- | -- |
| EVP4-2 | No available part. | |||
| EVPm4-3 | 10014283 | -- | -- | -- |
| EVP4-3 | No available part. | |||
| EVPm4-4 | 10014283 | -- | -- | -- |
| EVP4-4 | No available part. | |||
| EVP4-5 | No available part. | |||
| EVPm4-6 | No available part. | |||
| EVP4-6 | No available part. | |||
| EVP4-7 | No available part. | |||
| EVP4-8 | No available part. | |||
| EVP4-10 | No available part. | |||
| EVP4-12 | No available part. | |||
Jacket for EVP4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm4-2 | No available part. | |||
| EVP4-2 | No available part. | |||
| EVPm4-3 | No available part. | |||
| EVP4-3 | No available part. | |||
| EVPm4-4 | No available part. | |||
| EVP4-4 | No available part. | |||
| EVP4-5 | No available part. | |||
| EVPm4-6 | No available part. | |||
| EVP4-6 | No available part. | |||
| EVP4-7 | No available part. | |||
| EVP4-8 | No available part. | |||
| EVP4-10 | No available part. | |||
| EVP4-12 | No available part. | |||
Impeller for EVP4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm4-2 | No available part. | |||
| EVP4-2 | No available part. | |||
| EVPm4-3 | No available part. | |||
| EVP4-3 | No available part. | |||
| EVPm4-4 | No available part. | |||
| EVP4-4 | No available part. | |||
| EVP4-5 | No available part. | |||
| EVPm4-6 | No available part. | |||
| EVP4-6 | No available part. | |||
| EVP4-7 | No available part. | |||
| EVP4-8 | No available part. | |||
| EVP4-10 | No available part. | |||
| EVP4-12 | No available part. | |||
Diffuser for EVP4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm4-2 | No available part. | |||
| EVP4-2 | No available part. | |||
| EVPm4-3 | No available part. | |||
| EVP4-3 | No available part. | |||
| EVPm4-4 | No available part. | |||
| EVP4-4 | No available part. | |||
| EVP4-5 | No available part. | |||
| EVPm4-6 | No available part. | |||
| EVP4-6 | No available part. | |||
| EVP4-7 | No available part. | |||
| EVP4-8 | No available part. | |||
| EVP4-10 | No available part. | |||
| EVP4-12 | No available part. | |||
Diffuser for EVP4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm4-2 | No available part. | |||
| EVP4-2 | No available part. | |||
| EVPm4-3 | No available part. | |||
| EVP4-3 | No available part. | |||
| EVPm4-4 | No available part. | |||
| EVP4-4 | No available part. | |||
| EVP4-5 | No available part. | |||
| EVPm4-6 | No available part. | |||
| EVP4-6 | No available part. | |||
| EVP4-7 | No available part. | |||
| EVP4-8 | No available part. | |||
| EVP4-10 | No available part. | |||
| EVP4-12 | No available part. | |||
Electric box cover for EVP4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EVPm4-2 | No available part. | |||
| EVP4-2 | No available part. | |||
| EVPm4-3 | No available part. | |||
| EVP4-3 | No available part. | |||
| EVPm4-4 | No available part. | |||
| EVP4-4 | No available part. | |||
| EVP4-5 | No available part. | |||
| EVPm4-6 | No available part. | |||
| EVP4-6 | No available part. | |||
| EVP4-7 | No available part. | |||
| EVP4-8 | No available part. | |||
| EVP4-10 | No available part. | |||
| EVP4-12 | No available part. | |||
Packaging
| Models | Weight (kg) | Length L (mm) | Width W (mm) | Height H (mm) |
|---|---|---|---|---|
| EVPm4-2 | 15.9 | 450 | 248 | 255 |
| EVP4-2 | 15.9 | 450 | 248 | 255 |
| EVPm4-3 | 17 | 475 | 248 | 255 |
| EVP4-3 | 17 | 475 | 248 | 255 |
| EVPm4-4 | 18.2 | 495 | 248 | 255 |
| EVP4-4 | 18.2 | 495 | 248 | 255 |
| EVP4-5 | 22.9 | 575 | 248 | 255 |
| EVPm4-6 | 23.3 | 600 | 248 | 255 |
| EVP4-6 | 23.3 | 600 | 248 | 255 |
| EVP4-7 | 24.9 | 620 | 248 | 255 |
| EVP4-8 | 25.3 | 645 | 248 | 255 |
| EVP4-10 | 0 | 0 | 0 | 0 |
| EVP4-12 | 0 | 0 | 0 | 0 |
