EVP10H vertical multicellular pump in cast iron

Application

  • Water supply for tall buildings, pumping stations, overpressure
  • Washing stations, heating water circulation, air conditioning water circulation, water treatment systems
  • Irrigation: sprinkling, drip
  • Fire fighting systems

Pump

  • Use for a wide range of temperatures, flow rates and HMT
  • Inlet and outlet can be on the same side or opposite, depending on the needs of the installation
  • Simplified installation and maintenance
  • Inlet and outlet in cast iron, anti-corrosion treatment (cataphoresis)

Motor

  • Liquid temperature: from +5°C to +60°C
  • Max ambient temperature: +40°C
  • maximum pressure: 15 bars

Identification codes

EVP
10
H
-6
number of turbines
high pressure
Nominal flow (m³/h)
Vertical multicellular pump

Technical data

Q (m³/h) 0 2 4 6 8 10 12 14 16
Model Code Price excl. VAT kW Q (l/min) 0 33 67 100 133 167 200 233 267
EVP10H-3 A1.17.739 713.00 € 3 H (m) 56 55 54 52 49 46 42 39 29
EVP10H-4 A1.17.740 772.00 € 4 75 74 72 70 67 64 60 53 43
EVP10H-5 A1.17.741 953.00 € 5.5 93 91 87 84 81 77 72 64 55
EVP10H-6 A1.17.742 975.00 € 5.5 113 110 107 104 100 96 87 78 68
EVP10H-7 A1.17.743 1,047.00 € 7.5 132 128 124 120 116 112 103 93 80
EVP10H-8 A1.17.744 1,069.00 € 7.5 150 147 143 139 134 127 120 108 92

Hydraulic performance

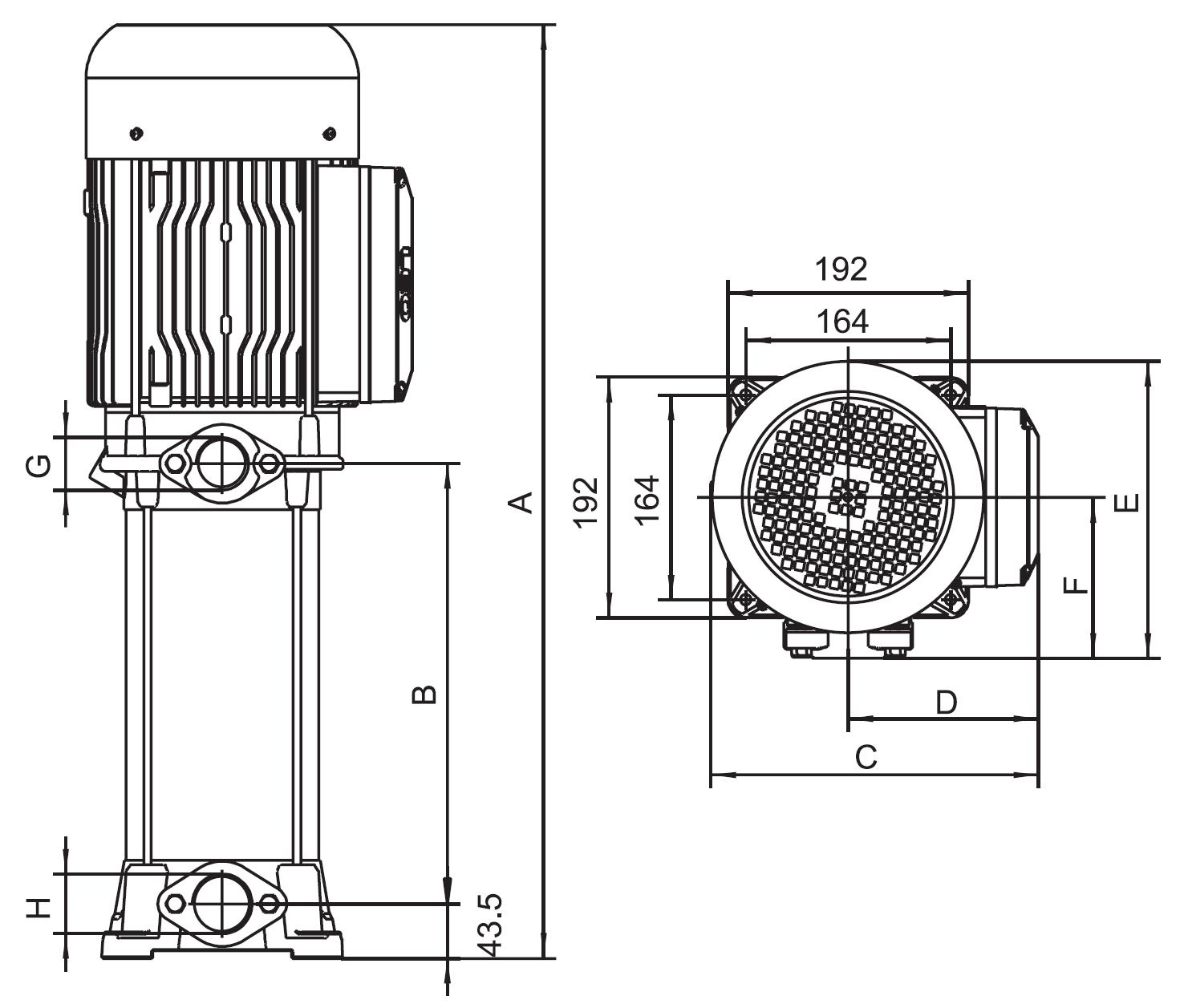

Dimensions

Models A B C D E F G H
EVP10H-3 554.5 187 240 141 227.5 127.5 1¼ 1½
EVP10H-4 577.5 220 240 141 227.5 127.5 1¼ 1½
EVP10H-5 647 253 262 152 237.5 128.5 1¼ 1½
EVP10H-6 680 286 262 152 237.5 128.5 1¼ 1½
EVP10H-7 713 319 262 152 237.5 128.5 1¼ 1½
EVP10H-8 746 352 262 152 237.5 128.5 1¼ 1½
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
F (mm)
G (")
H (")

Exploded view

No. Type Materials Buy
1 Fan cover 08F steel
2 Fan polypropylene
3 Rear cover cast iron HT200
4 Bearing
5 Stator
6 Rotor
7 Seal nitrile rubber (NBR)
8 Flange cast iron HT200
9 Upper water box aluminium
10 Mechanical seal carbon / ceramic
11 Jacket AISI 304 stainless steel
12 Impeller noryl (PPO)
13 Diffuser noryl (PPO)
14 Diffuser noryl (PPO)
15 Electric box cover PA6 resin
16 O-ring nitrile rubber (NBR)
Fan cover for EVP10H
Model Part ref. Price Stock Buy
EVP10H-3 No available part.
EVP10H-4 No available part.
EVP10H-5 No available part.
EVP10H-6 No available part.
EVP10H-7 No available part.
EVP10H-8 No available part.
Fan for EVP10H
Model Part ref. Price Stock Buy
EVP10H-3 No available part.
EVP10H-4 No available part.
EVP10H-5 No available part.
EVP10H-6 No available part.
EVP10H-7 No available part.
EVP10H-8 No available part.
Rear cover for EVP10H
Model Part ref. Price Stock Buy
EVP10H-3 No available part.
EVP10H-4 No available part.
EVP10H-5 No available part.
EVP10H-6 No available part.
EVP10H-7 No available part.
EVP10H-8 No available part.
Bearing for EVP10H
Model Part ref. Price Stock Buy
EVP10H-3 No available part.
EVP10H-4 No available part.
EVP10H-5 No available part.
EVP10H-6 No available part.
EVP10H-7 No available part.
EVP10H-8 No available part.
Stator for EVP10H
Model Part ref. Price Stock Buy
EVP10H-3 No available part.
EVP10H-4 No available part.
EVP10H-5 No available part.
EVP10H-6 No available part.
EVP10H-7 No available part.
EVP10H-8 No available part.
Rotor for EVP10H
Model Part ref. Price Stock Buy
EVP10H-3 No available part.
EVP10H-4 No available part.
EVP10H-5 No available part.
EVP10H-6 No available part.
EVP10H-7 No available part.
EVP10H-8 No available part.
Seal for EVP10H
Model Part ref. Price Stock Buy
EVP10H-3 No available part.
EVP10H-4 No available part.
EVP10H-5 No available part.
EVP10H-6 No available part.
EVP10H-7 No available part.
EVP10H-8 No available part.
Flange for EVP10H
Model Part ref. Price Stock Buy
EVP10H-3 No available part.
EVP10H-4 No available part.
EVP10H-5 No available part.
EVP10H-6 No available part.
EVP10H-7 No available part.
EVP10H-8 No available part.
Upper water box for EVP10H
Model Part ref. Price Stock Buy
EVP10H-3 No available part.
EVP10H-4 No available part.
EVP10H-5 No available part.
EVP10H-6 No available part.
EVP10H-7 No available part.
EVP10H-8 No available part.
Mechanical seal for EVP10H
Model Part ref. Price Stock Buy
EVP10H-3 No available part.
EVP10H-4 No available part.
EVP10H-5 No available part.
EVP10H-6 No available part.
EVP10H-7 No available part.
EVP10H-8 No available part.
Jacket for EVP10H
Model Part ref. Price Stock Buy
EVP10H-3 No available part.
EVP10H-4 No available part.
EVP10H-5 No available part.
EVP10H-6 No available part.
EVP10H-7 No available part.
EVP10H-8 No available part.
Impeller for EVP10H
Model Part ref. Price Stock Buy
EVP10H-3 No available part.
EVP10H-4 No available part.
EVP10H-5 No available part.
EVP10H-6 No available part.
EVP10H-7 No available part.
EVP10H-8 No available part.
Diffuser for EVP10H
Model Part ref. Price Stock Buy
EVP10H-3 No available part.
EVP10H-4 No available part.
EVP10H-5 No available part.
EVP10H-6 No available part.
EVP10H-7 No available part.
EVP10H-8 No available part.
Diffuser for EVP10H
Model Part ref. Price Stock Buy
EVP10H-3 No available part.
EVP10H-4 No available part.
EVP10H-5 No available part.
EVP10H-6 No available part.
EVP10H-7 No available part.
EVP10H-8 No available part.
Electric box cover for EVP10H
Model Part ref. Price Stock Buy
EVP10H-3 No available part.
EVP10H-4 No available part.
EVP10H-5 No available part.
EVP10H-6 No available part.
EVP10H-7 No available part.
EVP10H-8 No available part.
O-ring for EVP10H
Model Part ref. Price Stock Buy
EVP10H-3 10008759 -- -- --
EVP10H-4 10008759 -- -- --
EVP10H-5 10008759 -- -- --
EVP10H-6 No available part.
EVP10H-7 No available part.
EVP10H-8 No available part.

Packaging

Models Weight (kg) Length L (mm) Width W (mm) Height H (mm)
EVP10H-3 40.8 650 330 370
EVP10H-4 44.5 650 330 370
EVP10H-5 57.4 830 330 370
EVP10H-6 58 830 330 370
EVP10H-7 62.5 830 330 370
EVP10H-8 63.1 830 330 370
