EDH4 Horizontal multistage pump made entirely of stainless steel
Application
- Water supply for tall buildings, pumping stations, overpressure
- Washing stations, heating water circulation, air conditioning water circulation, water treatment systems
- Ultrafiltration, reverse osmosis, distillation systems, municipal swimming pools
- Irrigation: sprinkling, drip
- Industry
- Fire fighting systems
Pump
- Stainless steel shaft
- Max liquid temperature: +85°C
- Max suction height: 8 m
- Maximum operating pressure: 10 bars
- pH between 4 and 10
Motor
- IE3 motor
- Protection class: IP55
- Insulation class: F
- Maximum ambient temperature: +40°
- Integrated thermal protection for single-phase versions
- Altitude: up to 1000 m
Identification codes
EDH
m
4
-30
number of turbines (x10)
Nominal flow (m³/h)
Single phase
Vertical multicellular pump toute en inox
Technical data
| Q (m³/h) | 1 | 2 | 3 | 4 | 4.5 | 5 | 6 | 7 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Price excl. VAT | kW | Q (l/min) | 17 | 33 | 50 | 67 | 75 | 83 | 100 | 117 |
| EDH4-40 | A1.25.147 | 503.00 € | 0.75 | H (m) | 36.1 | 35.2 | 32.9 | 29.9 | 25 | 24.7 | 18.6 | 9.2 |
| EDH4-60 | A1.25.149 | 552.00 € | 1.1 | 53.6 | 52 | 47 | 42.5 | 37 | 35 | 23 | 12 |
Hydraulic performance

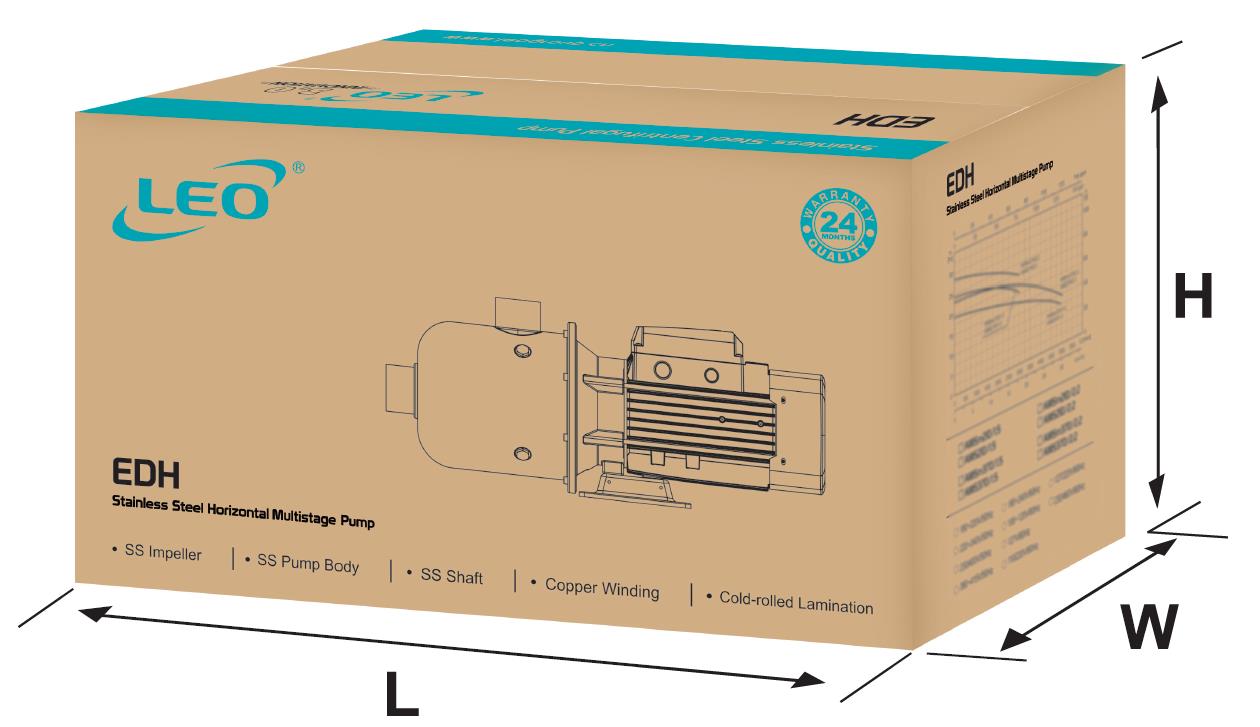

Dimensions
Exploded view
| No. | Type | Materials | Buy |
|---|---|---|---|
| 1 | Pump body | AISI 304 stainless steel | |
| 2 | Lantern | cast aluminum ZL102 | |
| 3 | Motor support | cast iron HT200 | |
| 4 | Stator | ||
| 5 | Rotor | ||
| 6 | Bearing | ||
| 7 | Rear cover | cast aluminum ZL102 | |
| 8 | Fan | polypropylene | |
| 9 | Fan cover | 08F steel | |
| 10 | Pump bottom | AISI 304 stainless steel | |
| 11 | Mechanical seal | silicon carbide / graphite | |
| 12 | Shim | AISI 304 stainless steel | |
| 13 | Diffuser | AISI 304 stainless steel | |
| 14 | Diffuser | AISI 304 stainless steel | |
| 15 | Bearing | AISI 304 stainless steel | |
| 16 | Impeller | AISI 304 stainless steel | |
| 17 | Diffuser | AISI 304 stainless steel | |
| 18 | Front plate | AISI 304 stainless steel | |
| 19 | Spacer sleeve | AISI 304 stainless steel |
Pump body for EDH4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EDH4-40 | No available part. | |||
| EDH4-60 | No available part. | |||
Lantern for EDH4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EDH4-40 | No available part. | |||
| EDH4-60 | No available part. | |||
Motor support for EDH4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EDH4-40 | No available part. | |||
| EDH4-60 | No available part. | |||
Stator for EDH4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EDH4-40 | No available part. | |||
| EDH4-60 | No available part. | |||
Rotor for EDH4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EDH4-40 | No available part. | |||
| EDH4-60 | No available part. | |||
Bearing for EDH4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EDH4-40 | No available part. | |||
| EDH4-60 | No available part. | |||
Rear cover for EDH4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EDH4-40 | No available part. | |||
| EDH4-60 | No available part. | |||
Fan for EDH4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EDH4-40 | No available part. | |||
| EDH4-60 | No available part. | |||
Fan cover for EDH4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EDH4-40 | No available part. | |||
| EDH4-60 | No available part. | |||
Pump bottom for EDH4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EDH4-40 | No available part. | |||
| EDH4-60 | No available part. | |||
Mechanical seal for EDH4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EDH4-40 | 10019156 | -- | -- | -- |
| EDH4-60 | 10019156 | -- | -- | -- |
Shim for EDH4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EDH4-40 | No available part. | |||
| EDH4-60 | No available part. | |||
Diffuser for EDH4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EDH4-40 | No available part. | |||
| EDH4-60 | No available part. | |||
Diffuser for EDH4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EDH4-40 | No available part. | |||
| EDH4-60 | No available part. | |||
Bearing for EDH4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EDH4-40 | No available part. | |||
| EDH4-60 | No available part. | |||
Impeller for EDH4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EDH4-40 | No available part. | |||
| EDH4-60 | No available part. | |||
Diffuser for EDH4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EDH4-40 | No available part. | |||
| EDH4-60 | No available part. | |||
Front plate for EDH4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EDH4-40 | No available part. | |||
| EDH4-60 | No available part. | |||
Spacer sleeve for EDH4
| Model | Part ref. | Price | Stock | Buy |
|---|---|---|---|---|
| EDH4-40 | No available part. | |||
| EDH4-60 | No available part. | |||
