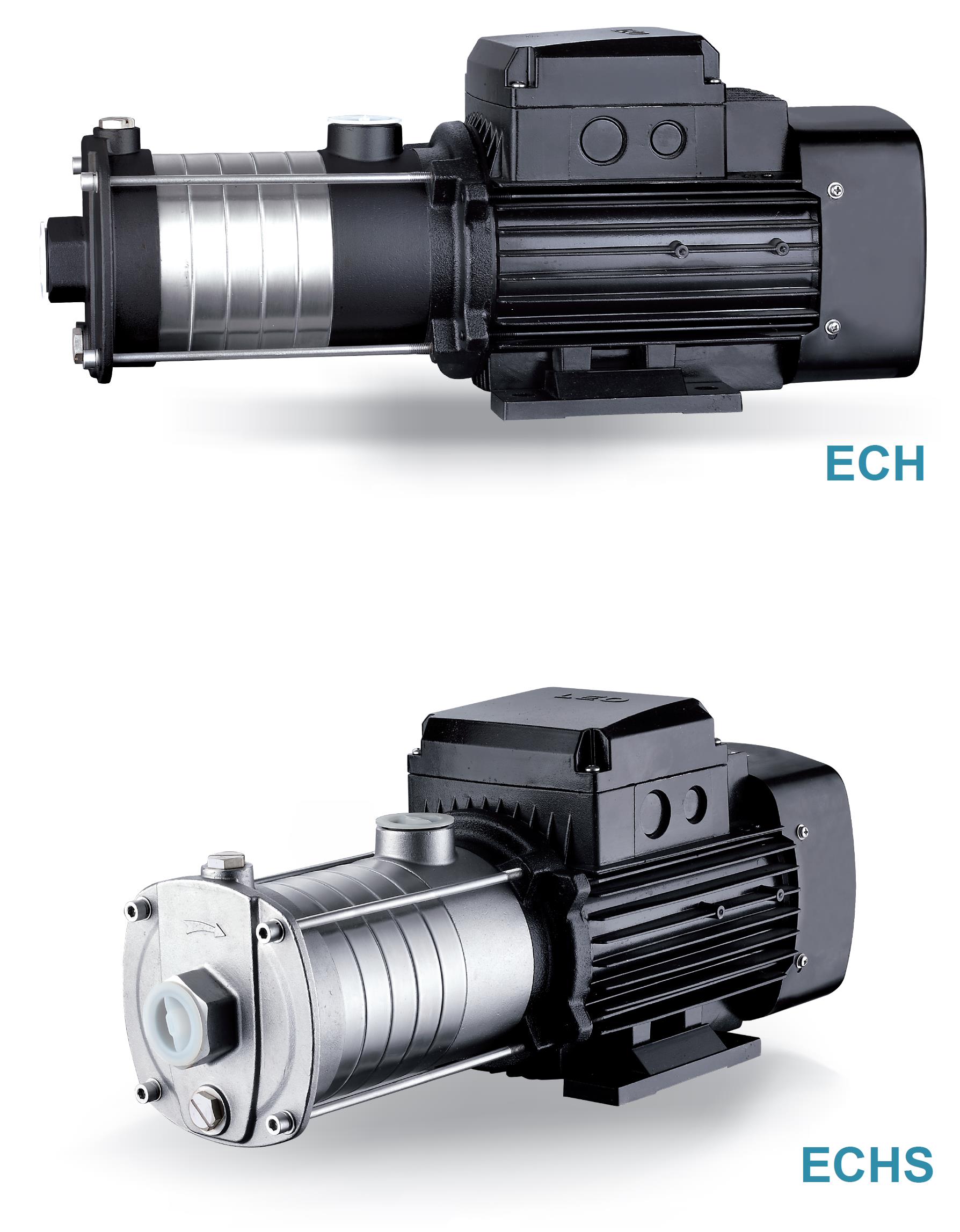

ECH15 Horizontal multistage stainless steel pump
Application
- Water supply for tall buildings, pumping stations, overpressure
- Washing stations, heating water circulation, air conditioning water circulation, water treatment systems
- Ultrafiltration, reverse osmosis, distillation systems, municipal swimming pools
- Irrigation: sprinkling, drip
- Industry
- Fire fighting systems
Pump
- Stainless steel shaft
- Max liquid temperature: +85°C
- Max suction height: 8 m
- Maximum operating pressure: 5 bars
- pH between 4 and 10
Motor
- IE3 motor
- Protection class: IP55
- Insulation class: F
- Maximum ambient temperature: +40°
- Integrated thermal protection for single-phase versions
- Altitude: up to 1000 m
Identification codes
ECH
m
15
-30
number of impellers x10
Nominal flow (m³/h)
Single phase
Stainless steel vertical multistage pump
Technical data
| Q (m³/h) | 9 | 12 | 15 | 18 | 21 | ||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Price excl. VAT | kW | Q (l/min) | 150 | 200 | 250 | 300 | 350 |
| ECH15-30 | A1.15.815 | 868.00 € | 3 | H (m) | 38.7 | 36.9 | 34.9 | 31.9 | 28.5 |
| ECH15-40 | A1.15.816 | 1,000.00 € | 4 | 51.8 | 49.7 | 46.8 | 42.9 | 38.3 |
Hydraulic performance

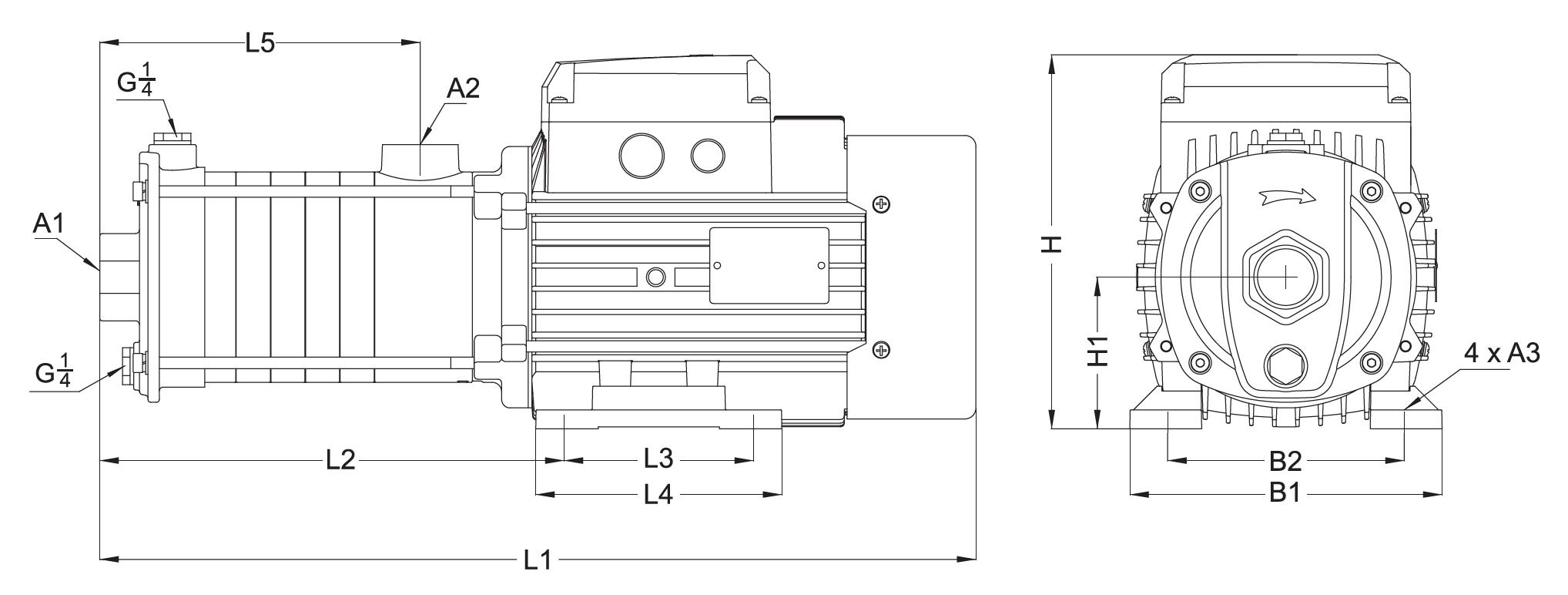

Dimensions
Exploded view
| No. | Type | Buy |
|---|---|---|
| 1 | Fan cover | |
| 2 | Fan | |
| 3 | Rear cover | |
| 4 | Rotor | |
| 5 | Bearing | |
| 6 | Electric box cover | |
| 7 | Stator | |
| 8 | Lantern | |
| 9 | Outlet diffuser | |
| 10 | Mechanical seal | |
| 11 | Shim | |
| 12 | Diffuser | |
| 13 | Bearing | |
| 14 | Impeller | |
| 15 | Front cover |
