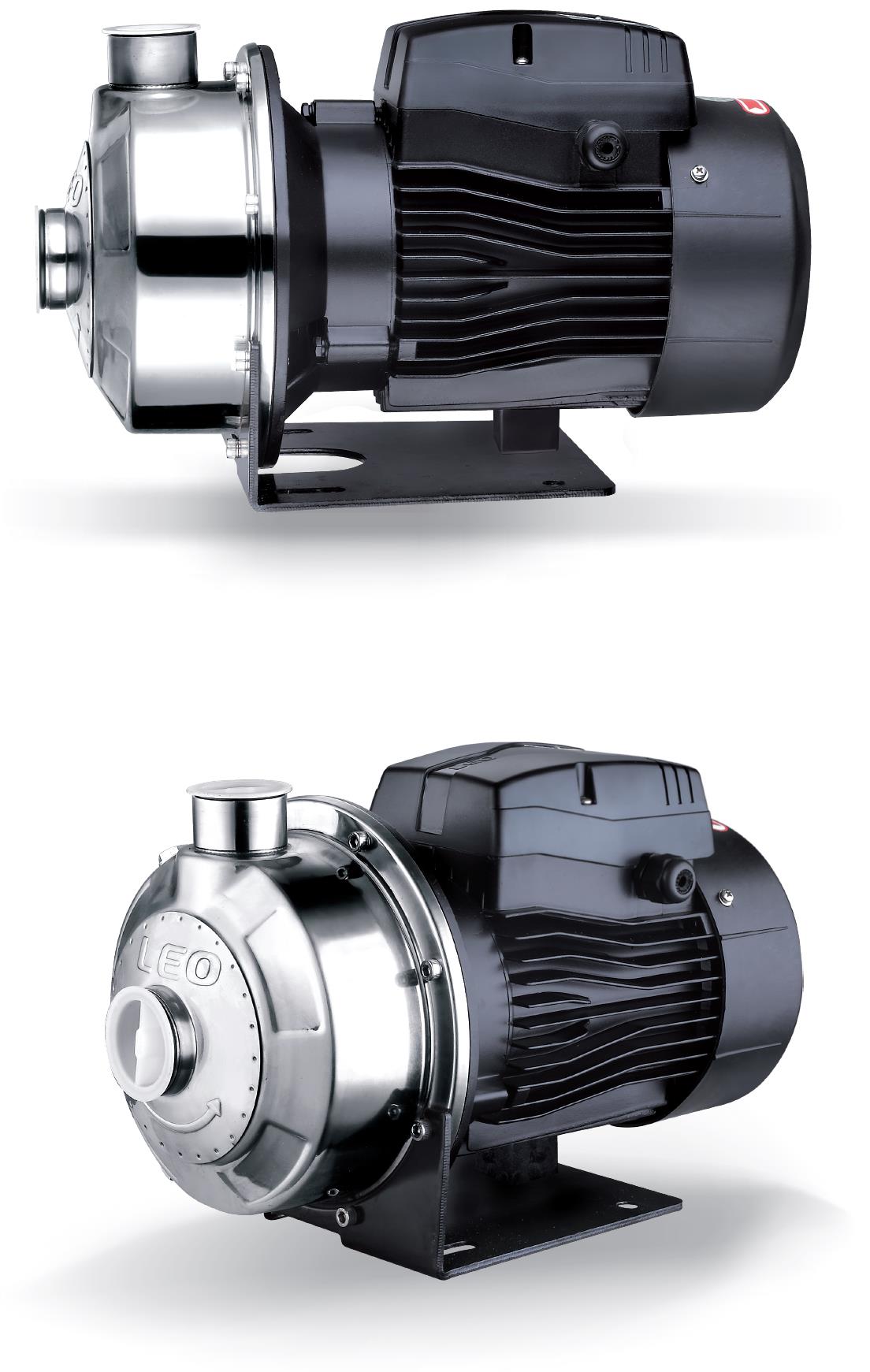

AMS (deb>200l/mn) Stainless steel centrifugal pump

Application

  • Suitable for domestic use, overpressure of pipe, watering of gardens, fish farming, industry and mines, air conditioning systems, etc ...

Pump

  • Stainless steel pump body AISI 304
  • AISI 304 stainless steel shaft
  • Maximum liquid temperature: +85°C
  • Altitude of use: up to 1000 m

Motor

  • Integrated thermal protection for single-phase motors
  • Insulation class: F
  • Protection class: IPX4
  • Maximum ambient temperature: +40°C

Identification codes

A
MS
m
210
/1.5
Nominal power (kW)
Nominal flow (l/mn)
Single-phase motor
Stainless steel centrifugal pump
LEO designation

Technical data

Q (m³/h) 0 1.8 3.6 6 7.2 8.4 9.6 10.8 12 15 18 21 24 26 29 31
Model Code Price excl. VAT kW Q (l/min) 0 30 60 100 120 140 160 180 200 250 300 350 400 433 483 517
AMS210/1.1 A1.15.539 327.00 € 1.1 H (m) 19.7 18.7 18.3 18 17.5 17.1 15.6 13.6
AMSm210/1.5 A1.15.502 408.00 € 1.5 24.2 23.5 23.2 22.8 22.4 21.8 20.2 18
AMS210/1.5 A1.15.503 422.00 € 1.5 24.2 23.5 23.2 22.8 22.4 21.8 20.2 18
AMS210/1.5-380V-SA 379.00 € 1.5 24.2 23.5 23.2 22.8 22.4 21.8 20.2 18
AMS370/1.1 A1.15.543 BSSS304 340.00 € 1.1 15.4 14.7 14.4 13.5 12.3 10.8 8.9 7.6

Hydraulic performance

Dimensions

Models DN1 DN2 L W H L1 L2 W1 H1
AMS210/1.1
AMSm210/1.5 1½ 1¼ 440 210 250 129 55 149 110
AMS210/1.5 1½ 1¼ 440 210 250 129 55 149 110
AMS210/1.5-380V-SA 1½ 1¼ 440 210 250 129 55 149 110
AMS370/1.1 2 1¼ 392 210 234 129 55 149 110
DN1 (")
DN2 (")
L (mm)
W (mm)
H (mm)
L1 (mm)
L2 (mm)
W1 (mm)
H1 (mm)

Exploded view

No. Type Materials Buy
1 Base steel
2 Pump body AISI 304 stainless steel
3 Diffuser AISI 304 stainless steel
4 Impeller AISI 304 stainless steel
5 O-ring nitrile rubber (NBR)
6 Pump bottom AISI 304 stainless steel
7 Lantern cast aluminum ZL102
8 Mechanical seal silicone / carbon
9 Bearing
10 Rotor
11 Stator
12 Fan polypropylene
13 Rear cover cast aluminum ZL102
14 Fan cover polypropylene
15 Electric box cover ABS
16 Capacitor
Base for AMS (deb>200l/mn)
Model Part ref. Price Stock Buy
AMS210/1.1 No available part.
AMSm210/1.5 No available part.
AMS210/1.5 No available part.
AMS210/1.5-380V-SA No available part.
AMS370/1.1 No available part.
Pump body for AMS (deb>200l/mn)
Model Part ref. Price Stock Buy
AMS210/1.1 40011730 -- -- --
AMSm210/1.5 40011730 -- -- --
AMS210/1.5 40011730 -- -- --
AMS210/1.5-380V-SA No available part.
AMS370/1.1 No available part.
Diffuser for AMS (deb>200l/mn)
Model Part ref. Price Stock Buy
AMS210/1.1 40011708 -- -- --
AMSm210/1.5 No available part.
AMS210/1.5 No available part.
AMS210/1.5-380V-SA No available part.
AMS370/1.1 No available part.
Impeller for AMS (deb>200l/mn)
Model Part ref. Price Stock Buy
AMS210/1.1 40011731 -- -- --
AMSm210/1.5 No available part.
AMS210/1.5 No available part.
AMS210/1.5-380V-SA No available part.
AMS370/1.1 No available part.
O-ring for AMS (deb>200l/mn)
Model Part ref. Price Stock Buy
AMS210/1.1 No available part.
AMSm210/1.5 No available part.
AMS210/1.5 No available part.
AMS210/1.5-380V-SA No available part.
AMS370/1.1 No available part.
Pump bottom for AMS (deb>200l/mn)
Model Part ref. Price Stock Buy
AMS210/1.1 No available part.
AMSm210/1.5 FDPAMS210 -- -- --
AMS210/1.5 FDPAMS210 -- -- --
AMS210/1.5-380V-SA No available part.
AMS370/1.1 No available part.
Lantern for AMS (deb>200l/mn)
Model Part ref. Price Stock Buy
AMS210/1.1 No available part.
AMSm210/1.5 No available part.
AMS210/1.5 No available part.
AMS210/1.5-380V-SA No available part.
AMS370/1.1 No available part.
Mechanical seal for AMS (deb>200l/mn)
Model Part ref. Price Stock Buy
AMS210/1.1 10011075 -- -- --
AMSm210/1.5 10011075 -- -- --
AMS210/1.5 10011075 -- -- --
AMS210/1.5-380V-SA No available part.
AMS370/1.1 10011075 -- -- --
Bearing for AMS (deb>200l/mn)
Model Part ref. Price Stock Buy
AMS210/1.1 No available part.
AMSm210/1.5 10001189 -- -- --
AMS210/1.5 10001189 -- -- --
AMS210/1.5-380V-SA No available part.
AMS370/1.1 10001189 -- -- --
Rotor for AMS (deb>200l/mn)
Model Part ref. Price Stock Buy
AMS210/1.1 No available part.
AMSm210/1.5 No available part.
AMS210/1.5 No available part.
AMS210/1.5-380V-SA No available part.
AMS370/1.1 No available part.
Stator for AMS (deb>200l/mn)
Model Part ref. Price Stock Buy
AMS210/1.1 No available part.
AMSm210/1.5 No available part.
AMS210/1.5 No available part.
AMS210/1.5-380V-SA No available part.
AMS370/1.1 No available part.
Fan for AMS (deb>200l/mn)
Model Part ref. Price Stock Buy
AMS210/1.1 No available part.
AMSm210/1.5 No available part.
AMS210/1.5 No available part.
AMS210/1.5-380V-SA No available part.
AMS370/1.1 No available part.
Rear cover for AMS (deb>200l/mn)
Model Part ref. Price Stock Buy
AMS210/1.1 No available part.
AMSm210/1.5 No available part.
AMS210/1.5 No available part.
AMS210/1.5-380V-SA No available part.
AMS370/1.1 No available part.
Fan cover for AMS (deb>200l/mn)
Model Part ref. Price Stock Buy
AMS210/1.1 No available part.
AMSm210/1.5 No available part.
AMS210/1.5 No available part.
AMS210/1.5-380V-SA No available part.
AMS370/1.1 No available part.
Electric box cover for AMS (deb>200l/mn)
Model Part ref. Price Stock Buy
AMS210/1.1 No available part.
AMSm210/1.5 No available part.
AMS210/1.5 No available part.
AMS210/1.5-380V-SA No available part.
AMS370/1.1 No available part.
Capacitor for AMS (deb>200l/mn)
Model Part ref. Price Stock Buy
AMS210/1.1 No available part.
AMSm210/1.5 10022783 -- -- --
AMS210/1.5 No available part.
AMS210/1.5-380V-SA No available part.
AMS370/1.1 No available part.

Packaging

Models Weight (kg) Length L (mm) Width W (mm) Height H (mm)
AMS210/1.1 15 410 240 270
AMSm210/1.5 18 465 240 270
AMS210/1.5 18 465 240 270
AMS210/1.5-380V-SA 18 465 240 270
AMS370/1.1 15 410 240 270
Operating instructions
attachment Operating instructions (4.5 MB)
Technical file
attachment Technical file AMS (deb>200l/mn)
