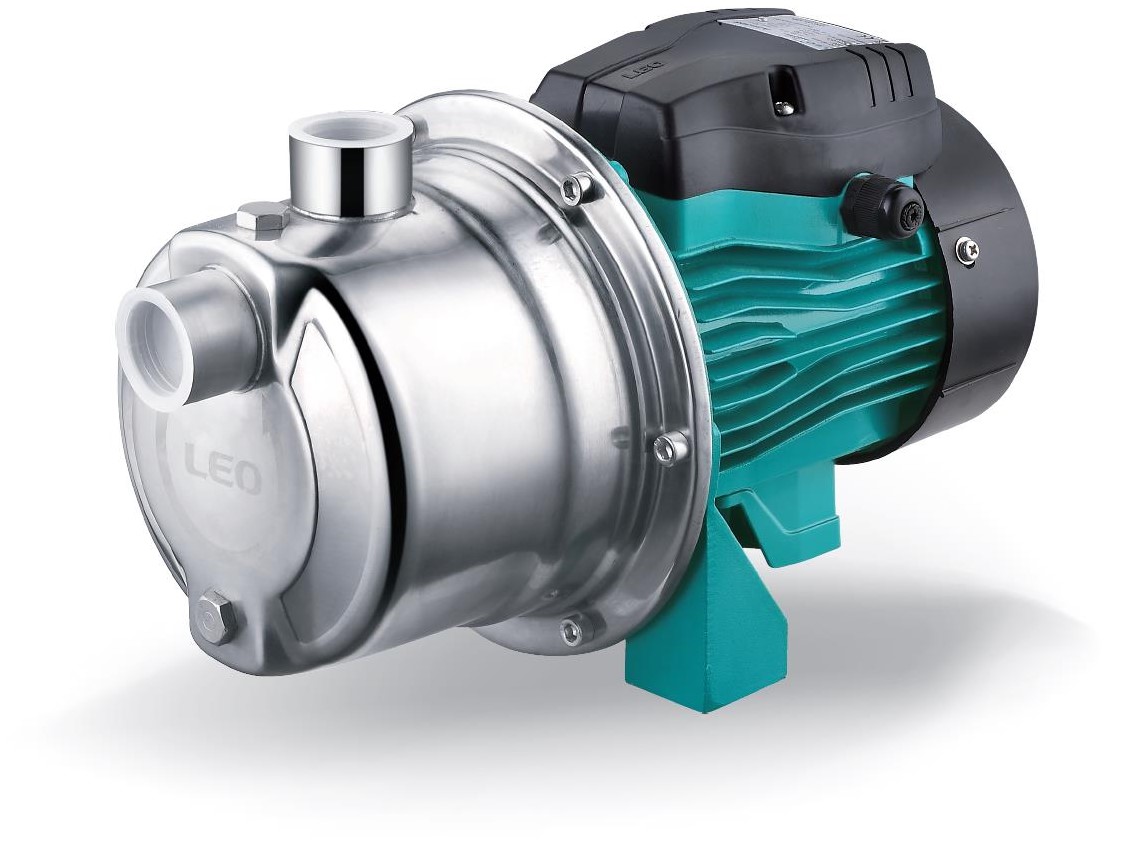

AJmS Self priming pump stainless steel

Application

  • Transfer of clear water or other liquids chemically and physically comparable to water
  • Suitable for pumping in a well, automatic garden watering, overpressure of running water, etc.

Pump

  • Stainless steel pump body
  • Special anti-rust treatment (cataphoresis) of the lantern
  • Stainless steel impeller
  • AISI 304 stainless steel shaft
  • Maximum liquid temperature: +40°C
  • Maximum suction height: 8 m

Motor

  • Integrated thermal protection for single-phase motors
  • Insulation class: F
  • Protection class: IPX4
  • Maximum ambient temperature: +40°C

Identification codes

A
J
m
30
S
(E)
(A5)
With pressure vessel
With electronic pumpcontrol
Stainless steel body and impeller
Power (x10 W)
Single-phase motor
Jet pump
LEO designation

Technical data

Q (m³/h) 0 0.3 0.6 0.9 1.2 1.5 1.8 2.4 2.8 3 3.3 3.6 4
Model Code Price excl. VAT kW Q (l/min) 0 5 10 15 20 25 30 40 47 50 55 60 67
AJm30S A1.15.110 140.00 € 0.3 H (m) 30 26 23 20 18 16.5 15 11
AJm45S A1.15.111 151.00 € 0.45 38 35 31 27 25 22 20 16
AJm60S A1.15.112 189.00 € 0.6 43 37 33 30 27 25 23 20 18
AJm75S A1.15.100 204.00 € 0.75 46 40 38 36 34 32 30 27 25 23 20
AJm75SE A1.15.101 278.00 € 0.75 46 40 38 36 34 32 30 27 25 23 20
AJm75SA5 A1.15.102 296.00 € 0.75 46 40 38 36 34 32 30 27 25 23 20
AJm90S A1.15.113 214.00 € 0.9 48 44 42 39 37 35 34 31 29 28 26 22
AJm90SE A1.15.114 290.00 € 0.9 48 44 42 39 37 35 34 31 29 28 26 22
AJm90SA5 A1.15.115 318.00 € 0.9 48 44 42 39 37 35 34 31 29 28 26 22

Hydraulic performance

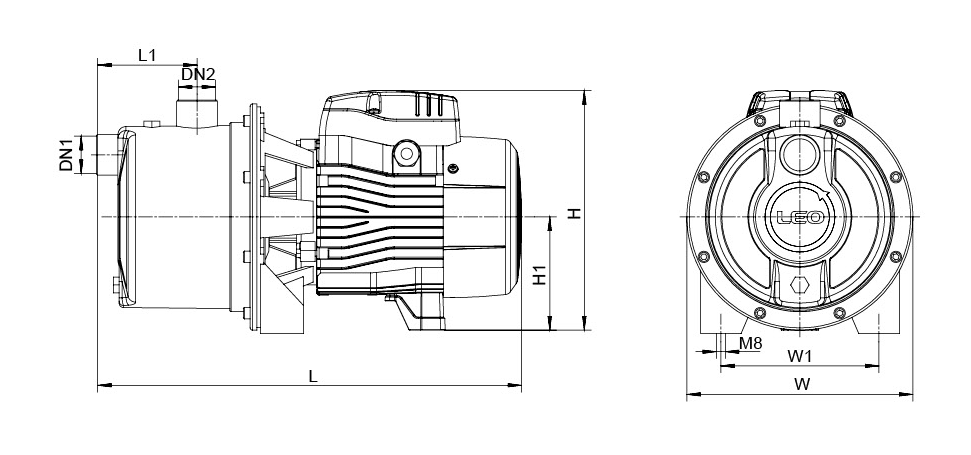

Dimensions

Models DN1 DN2 L W H L1 W1 H1
AJm30S 1 1 337 180 181.5 78 140 181.5
AJm45S 1 1 337 180 181.5 78 140 181.5
AJm60S 1 1 376 200 214 88.5 140 214
AJm75S 1 1 376 200 214 88.5 140 214
AJm75SE 1 1 376 200 214 88.5 140 214
AJm75SA5 1 1 376 200 214 88.5 140 214
AJm90S 1 1 376 200 214 88.5 140 214
AJm90SE 1 1 376 200 214 88.5 140 214
AJm90SA5 1 1 376 200 214 88.5 140 214
DN1 (")
DN2 (")
L (mm)
W (mm)
H (mm)
L1 (mm)
W1 (mm)
H1 (mm)

Exploded view

No. Type Materials Buy
1 Pump body AISI 304 stainless steel
2 Venturi tube noryl (PPO)
3 Diffuser noryl (PPO)
4 Impeller AISI 304 stainless steel
5 O-ring nitrile rubber (NBR)
6 Mechanical seal carbon / ceramic
7 Pump bottom AISI 304 stainless steel
8 Lantern cast aluminum ZL102
9 Rotor
10 Bearing
11 Stator
12 Terminal board polycarbonate
13 Electric box cover ABS
14 Capacitor
15 Rear cover cast aluminum ZL102
16 Fan polypropylene
17 Fan cover polypropylene
18 Plug AISI 304 stainless steel
Pump body for AJmS
