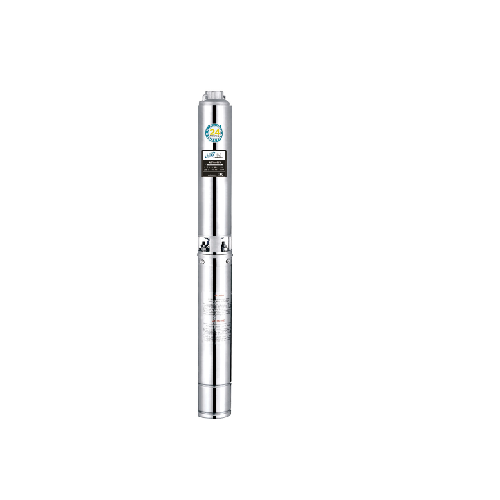

4LST35 Borehole pump
Application
- For water supply from wells or reservoirs
- For domestic use and industrial applications
- For garden use and irrigation
Pump
- Max fluid temperature: +35°C
- Max solid content: 0.3%
- Max chlorine content: 400 mg/L
- PH va1ue:6 9
- Max immersion: 150 m
- Min well diameter: 4"
Motor
- 4" motor in compliance with NEMA standards
- AII parts meet ROHS and PAHS
- Power range: 0.37 kW (0.5 HP) 7.5 kW (10 HP)
- AISI 304 pump body
- AISI 304 shaft
- AISI 304 connector
- AISI 304 coupling
Identification codes
4
LST
m
35
07
Impeller stage
Rated flow in USGPM
Single-phase Motor
Submersible borehole pump
Min well diameter: 4"
Technical data
| Q (m³/h) | 0 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 6 | 7.2 | 8.4 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Price excl. VAT | kW | Q (l/min) | 0 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 140 |
| 4LSTm-3507 | A1.26.166 | 469.00 € | 0.75 | H (m) | 42 | 36 | 34 | 32 | 30 | 27 | 25 | 18 | 10 |
| 4LSTm-3510 | A1.26.167 | 549.00 € | 1.1 | 60 | 51 | 48 | 46 | 43 | 40 | 36 | 26 | 14 | |
| 4LSTm-3514 | A1.26.168 | 635.00 € | 1.5 | 86 | 71 | 67 | 65 | 60 | 56 | 50 | 36 | 19 |
Hydraulic performance
Dimensions
| Models | H | L | NettoWeightH | NettoWeightL | GrossWeight | GrossWeight |
|---|---|---|---|---|---|---|
| 4LSTm-3507 | 395 | 773 | 3.4 | 12.4 | 10.2 | 10.2 |
| 4LSTm-3510 | 488 | 930 | 4.2 | 15.2 | 11.3 | 11.3 |
| 4LSTm-3514 | 612 | 1084 | 5.2 | 17.6 | 12.7 | 12.7 |
