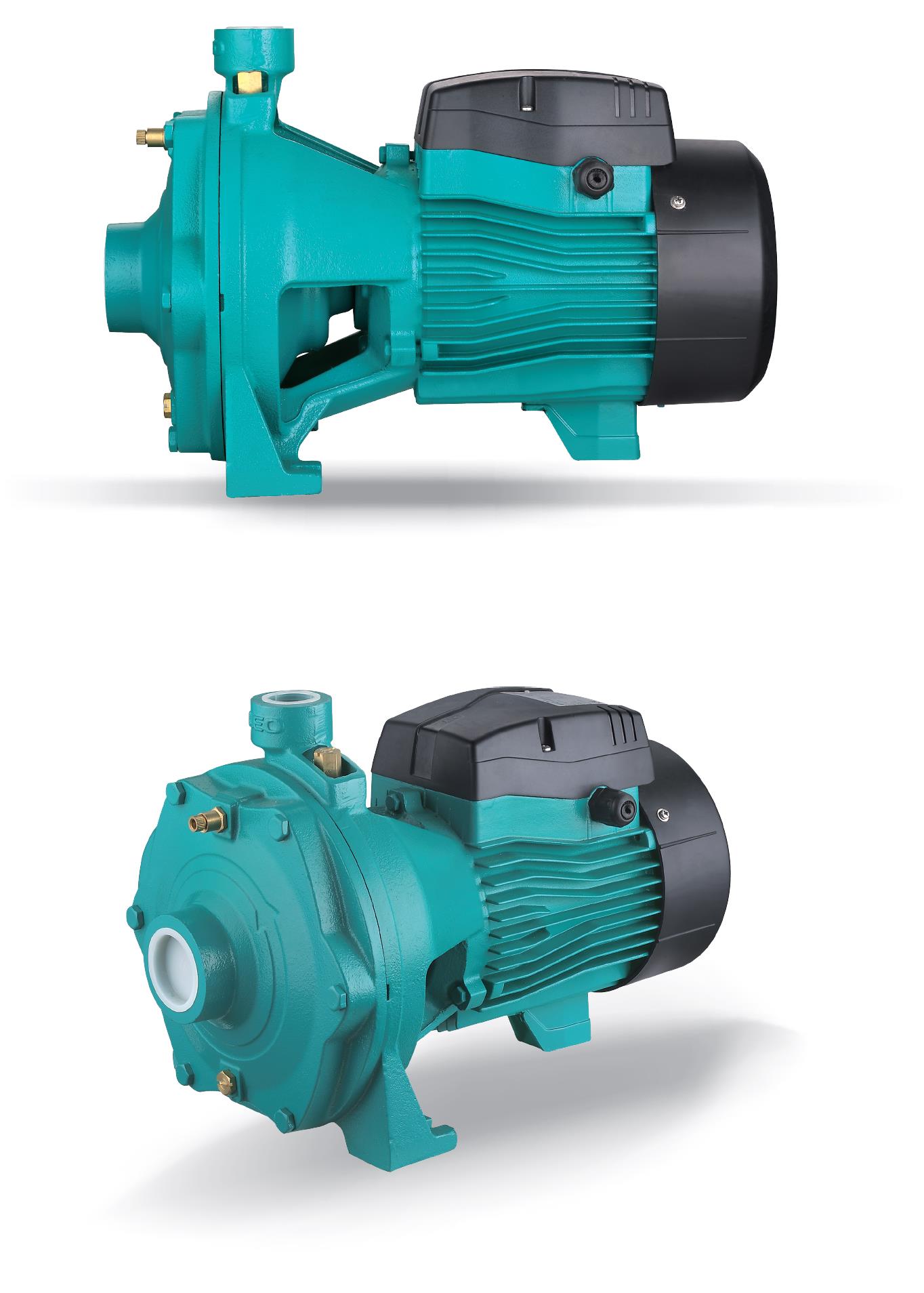

2ACm Centrifugal multistage cast iron pump

Application

  • Transfer of clear water or other liquids chemically and physically comparable to water
  • Suitable for industrial use and water supply, fire system, garden irrigation, long distance water transfer, air conditioning system, circulation and overpressure for hot and cold water, etc ...

Pump

  • Special anti-rust treatment (cataphoresis) for the cast iron pump body and the lantern
  • AISI 304 stainless steel shaft
  • Maximum liquid temperature: +40°C
  • Maximum suction height: 8 m

Motor

  • Integrated thermal protection for single-phase motors
  • Insulation class: F
  • Protection class: IPX4
  • Maximum ambient temperature: +40°C
  • IE2 motor (three-phase, motor> 0.75 kW)

Identification codes

2
A
C
m
110
(H)
high pressure
Power (x10 W)
Single-phase motor
centrifugal pump
LEO designation
number of impellers

Technical data

Q (m³/h) 0 1.2 1.8 2.4 3 3.6 4.2 4.8 5.4 6 6.6 7.2 8.4 9.6 10.8 12 15
Model Code Price excl. VAT kW Q (l/min) 0 20 30 40 50 60 70 80 90 100 110 120 140 160 180 200 250
2ACm75 A1.15.849 275.00 € 0.75 H (m) 45 42.5 40 37 33.5 28.5 23 15
2AC75 A1.15.848 275.00 € 0.75 45 42.5 40 37 33.5 28.5 23 15
2ACm110 A1.15.853 416.00 € 1.1 47 46 45 44 43 41.5 40 38 35.5 33 30.5 28 22
2AC110 A1.15.852 416.00 € 1.1 47 46 45 44 43 41.5 40 38 35.5 33 30.5 28 22
2ACm150 A1.15.851 473.00 € 1.5 57.5 55.5 54.5 53.5 52 50.5 49 47 44.5 41.5 38.5 35 28 20
2AC150 A1.15.850 473.00 € 1.5 57.5 55.5 54.5 53.5 52 50.5 49 47 44.5 41.5 38.5 35 28 20
2AC220 A1.15.855 514.00 € 2.2 65 63 62 61 59.5 58 56 54 51.5 49 46 43 36 28.5 20.5
2AC300H A1.15.856 824.00 € 3 67 66 65 64 63 62 61 59.5 59 55.5 52 49 45 33
2AC400H A1.15.854 849.00 € 4 79.5 78.5 77.5 76.5 75.5 74.5 73.5 72 71 67.5 64.5 61 57 45.5

Hydraulic performance

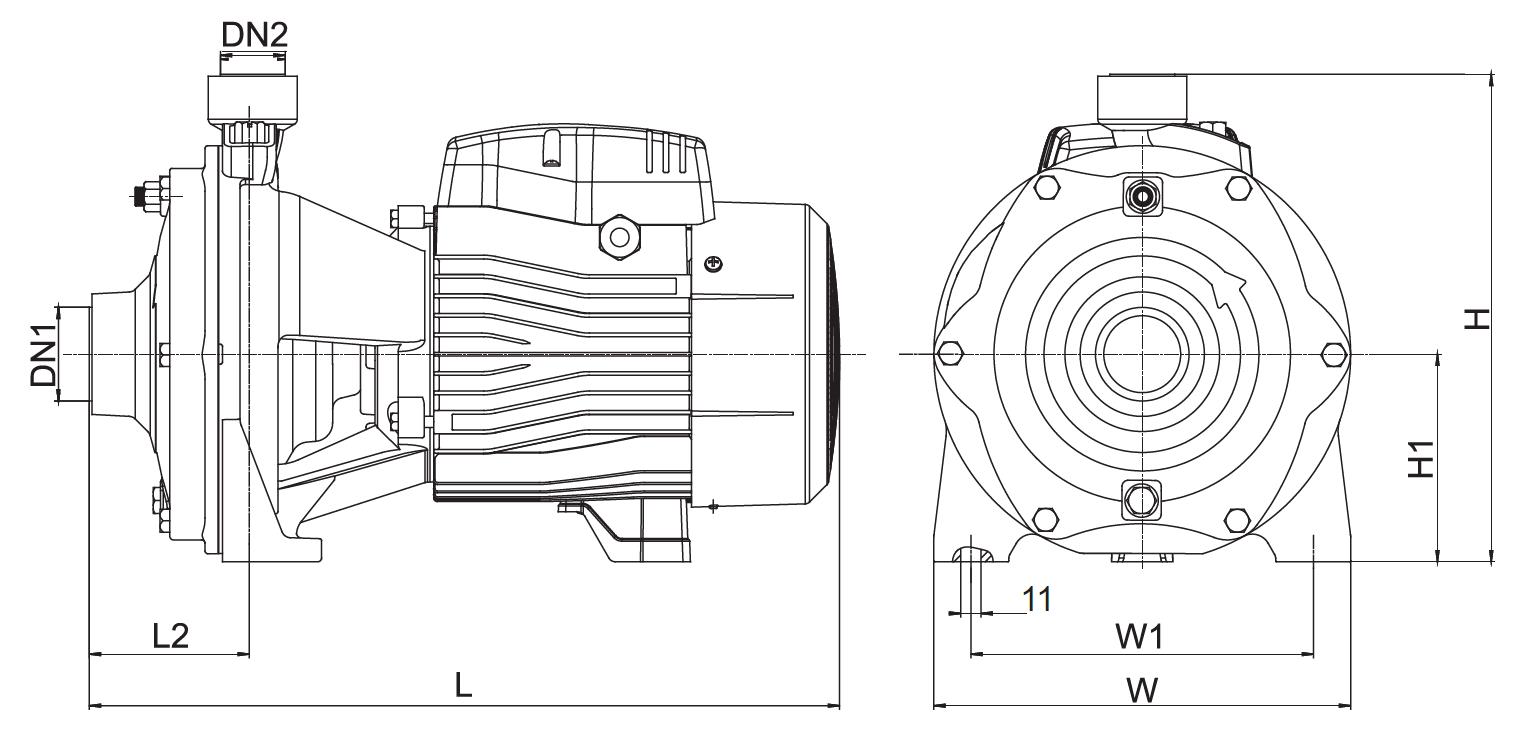

Dimensions

Models DN1 DN2 L L2 H H1 W W1
2ACm75 1¼ 1 336 72 231 100 181 145
2AC75 1¼ 1 336 72 231 100 181 145
2ACm110 1½ 1 379 71 225 93 200 162
2AC110 1½ 1 379 71 225 93 200 162
2ACm150 1½ 1 400 80 262 112 225 185
2AC150 1½ 1 400 80 262 112 225 185
2AC220 1½ 1 400 80 262 112 225 185
2AC300H 1½ 1¼ 480 63 311 132 281 234
2AC400H 1½ 1¼ 480 63 311 132 281 234
DN1 (")
DN2 (")
L (mm)
L2 (mm)
H (mm)
H1 (mm)
W (mm)
W1 (mm)

Exploded view

No. Type Materials Buy
1 Drain plug brass HPb59-1
2 Pump body cast iron HT200
3 O-ring nitrile rubber (NBR)
4 Impeller stainless steel AISI 304 / cast iron HT200
5 Diffuser cast iron HT200
6 Mechanical seal carbon / ceramic
7 Lantern cast iron HT200
8 Oil seal
9 Bearing
10 Rotor
11 Stator
12 Rear cover cast aluminum ZL102
13 Fan polypropylene
14 Fan cover polypropylene
15 Terminal board polycarbonate
16 Capacitor
17 Electric box cover PA6 resin
Drain plug for 2ACm
Model Part ref. Price Stock Buy
2ACm75 No available part.
2AC75 No available part.
2ACm110 No available part.
2AC110 No available part.
2ACm150 No available part.
2AC150 No available part.
2AC220 No available part.
2AC300H No available part.
2AC400H No available part.
Pump body for 2ACm
Model Part ref. Price Stock Buy
2ACm75 No available part.
2AC75 No available part.
2ACm110 No available part.
2AC110 No available part.
2ACm150 No available part.
2AC150 No available part.
2AC220 No available part.
2AC300H No available part.
2AC400H No available part.
O-ring for 2ACm
Model Part ref. Price Stock Buy
2ACm75 No available part.
2AC75 No available part.
2ACm110 No available part.
2AC110 No available part.
2ACm150 No available part.
2AC150 No available part.
2AC220 No available part.
2AC300H 10013056 -- -- --
2AC400H 10013056 -- -- --
Impeller for 2ACm
Model Part ref. Price Stock Buy
2ACm75 No available part.
2AC75 No available part.
2ACm110 No available part.
2AC110 No available part.
2ACm150 No available part.
2AC150 No available part.
2AC220 No available part.
2AC300H No available part.
2AC400H No available part.
Diffuser for 2ACm
Model Part ref. Price Stock Buy
2ACm75 No available part.
2AC75 No available part.
2ACm110 No available part.
2AC110 No available part.
2ACm150 No available part.
2AC150 No available part.
2AC220 No available part.
2AC300H No available part.
2AC400H No available part.
Mechanical seal for 2ACm
Model Part ref. Price Stock Buy
2ACm75 10001263 -- -- --
2AC75 No available part.
2ACm110 10001281 -- -- --
2AC110 No available part.
2ACm150 10001281 -- -- --
2AC150 No available part.
2AC220 No available part.
2AC300H No available part.
2AC400H No available part.
Lantern for 2ACm
Model Part ref. Price Stock Buy
2ACm75 No available part.
2AC75 No available part.
2ACm110 No available part.
2AC110 No available part.
2ACm150 No available part.
2AC150 No available part.
2AC220 No available part.
2AC300H No available part.
2AC400H No available part.
Oil seal for 2ACm
Model Part ref. Price Stock Buy
2ACm75 No available part.
2AC75 No available part.
2ACm110 No available part.
2AC110 No available part.
2ACm150 No available part.
2AC150 No available part.
2AC220 No available part.
2AC300H No available part.
2AC400H No available part.
Bearing for 2ACm
Model Part ref. Price Stock Buy
2ACm75 10001169 -- -- --
2AC75 10001169 -- -- --
2ACm110 10001186 -- -- --
2AC110 10001186 -- -- --
2ACm150 10001186 -- -- --
2AC150 10001186 -- -- --
2AC220 10001186 -- -- --
2AC300H No available part.
2AC400H No available part.
Rotor for 2ACm
Model Part ref. Price Stock Buy
2ACm75 No available part.
2AC75 No available part.
2ACm110 No available part.
2AC110 No available part.
2ACm150 No available part.
2AC150 No available part.
2AC220 No available part.
2AC300H No available part.
2AC400H No available part.
Stator for 2ACm
Model Part ref. Price Stock Buy
2ACm75 No available part.
2AC75 No available part.
2ACm110 No available part.
2AC110 No available part.
2ACm150 No available part.
2AC150 No available part.
2AC220 No available part.
2AC300H No available part.
2AC400H No available part.
Rear cover for 2ACm
Model Part ref. Price Stock Buy
2ACm75 No available part.
2AC75 No available part.
2ACm110 No available part.
2AC110 No available part.
2ACm150 No available part.
2AC150 No available part.
2AC220 No available part.
2AC300H No available part.
2AC400H No available part.
Fan for 2ACm
Model Part ref. Price Stock Buy
2ACm75 No available part.
2AC75 No available part.
2ACm110 No available part.
2AC110 No available part.
2ACm150 No available part.
2AC150 No available part.
2AC220 No available part.
2AC300H No available part.
2AC400H No available part.
Fan cover for 2ACm
Model Part ref. Price Stock Buy
2ACm75 No available part.
2AC75 No available part.
2ACm110 No available part.
2AC110 No available part.
2ACm150 No available part.
2AC150 No available part.
2AC220 No available part.
2AC300H No available part.
2AC400H No available part.
Terminal board for 2ACm
Model Part ref. Price Stock Buy
2ACm75 No available part.
2AC75 No available part.
2ACm110 No available part.
2AC110 No available part.
2ACm150 No available part.
2AC150 No available part.
2AC220 No available part.
2AC300H No available part.
2AC400H No available part.
Capacitor for 2ACm
Model Part ref. Price Stock Buy
2ACm75 No available part.
2AC75 No available part.
2ACm110 10012687/10022822 -- -- --
2AC110 No available part.
2ACm150 10012687/10022822 -- -- --
2AC150 No available part.
2AC220 No available part.
2AC300H No available part.
2AC400H No available part.
Electric box cover for 2ACm
Model Part ref. Price Stock Buy
2ACm75 No available part.
2AC75 No available part.
2ACm110 No available part.
2AC110 No available part.
2ACm150 No available part.
2AC150 No available part.
2AC220 No available part.
2AC300H No available part.
2AC400H No available part.

Packaging

Models Weight (kg) Length L (mm) Width W (mm) Height H (mm)
2ACm75 16.8 385 215 270
2AC75 16.8 385 215 270
2ACm110 21 430 235 275
2AC110 21 430 235 275
2ACm150 27.5 445 255 300
2AC150 27.5 445 255 300
2AC220 27.5 445 255 300
2AC300H 51.9 542 330 346
2AC400H 52.4 542 330 346
Technical file
attachment Technical file 2ACm
file_download PDF documents
