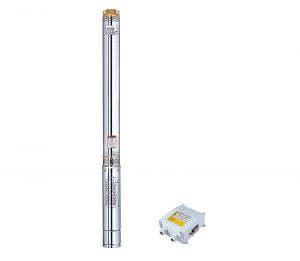

2.5XR 2 Stainless steel body drilling pump
Application
- Pumping for drilling, well, tank
- For domestic (watering, irrigation) or industrial applications
Pump
- Maximum liquid temperature: +35°C
- Maximum sand content: 0,25%
- Maximum immersion depth: 80 m
- Minimum borehole diameter: 3"
- Curved tolerance in accordance with the standard ISO 9906
Motor
- Rewindable motor
Identification codes
3
XR
m
3
/11
-0.37
Nominal power (kW)
Number of impeller stages
Nominal flow (m³/h)
Single phase
Submersible borehole pump
Minimum borehole diameter (in ")
Technical data
| Q (m³/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Price excl. VAT | kW | Q (l/min) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 |
| 2.5XRm2/24-0.37 | A1.08.800 | 422.00 € | 0.37 | H (m) | 65 | 60 | 56 | 52 | 46 | 40 | 33 | 22 | 10 |
| 2.5XRm2/31-0.55 | A1.08.810 | 483.00 € | 0.55 | 84 | 77 | 72 | 67 | 60 | 52 | 43 | 29 | 13 | |
| CONTROLBOX 2,5XRm2/24-0.37KW - 0 | A1.70.100 | 34.00 € | 0 | ||||||||||
| CONTROLBOX 2,5XRm2/31-0.55KW - 0 | A1.70.105 | 32.00 € | 0 |
Hydraulic performance

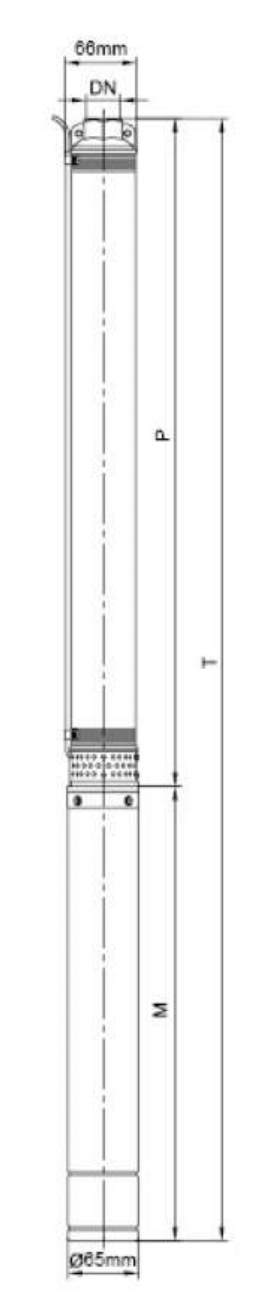

Dimensions
| Models | DN | P | M | T | poidsP | poidsM | poidsT |
|---|---|---|---|---|---|---|---|
| 2.5XRm2/24-0.37 | 1 | 779 | 787 | 1546 | 4.1 | 8.2 | 12.3 |
| 2.5XRm2/31-0.55 | 1 | 993 | 1001 | 1994 | 4.4 | 8.9 | 13.3 |
| CONTROLBOX 2,5XRm2/24-0.37KW - 0 | |||||||
| CONTROLBOX 2,5XRm2/31-0.55KW - 0 |
